ADDA II Universal
Encoder Connections

Emergency Stop Connections

Emergency
stop output
116
FlexTest GT Controller Connections
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

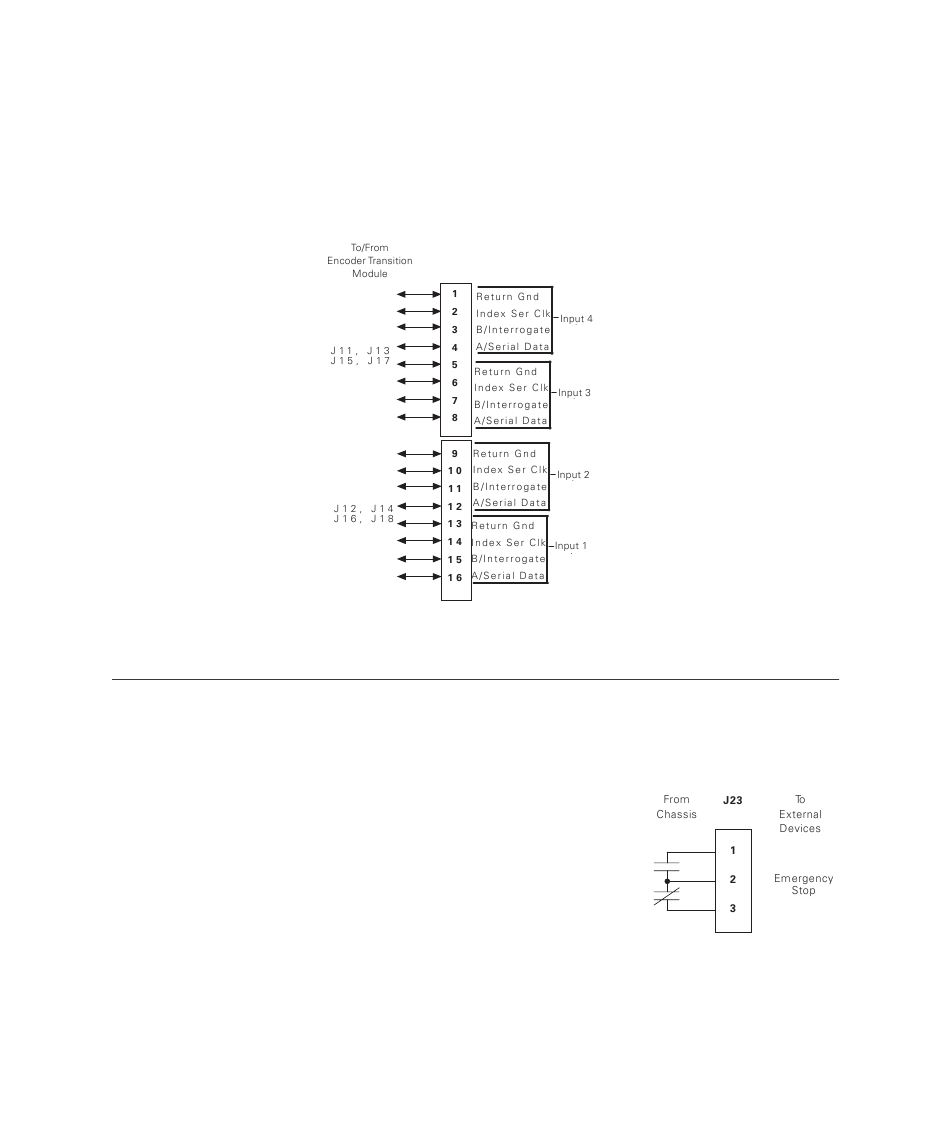

Each encoder requires a Model 493.59 Universal Encoder mezzanine
card installed on the Model 493.50 ADDA II module.
Up to four encoders can be connected to the Model 493.80 ADDA II
Encoder Transition module when the Model 493.50 ADDA II module is
fully populated with Universal Encoder cards.
Connectors J23 E-STOP Out and J24 E-STOP In are located on the
Model 493.73 HPU transition board. The emergency stop switch and
signal are part of a controller-wide interlock system.
Connector J23 E-STOP Out provides an
output to external devices when an
emergency stop signal is generated. The
inactive status is shown in the figure.
MTS 793 Controller Hardware
