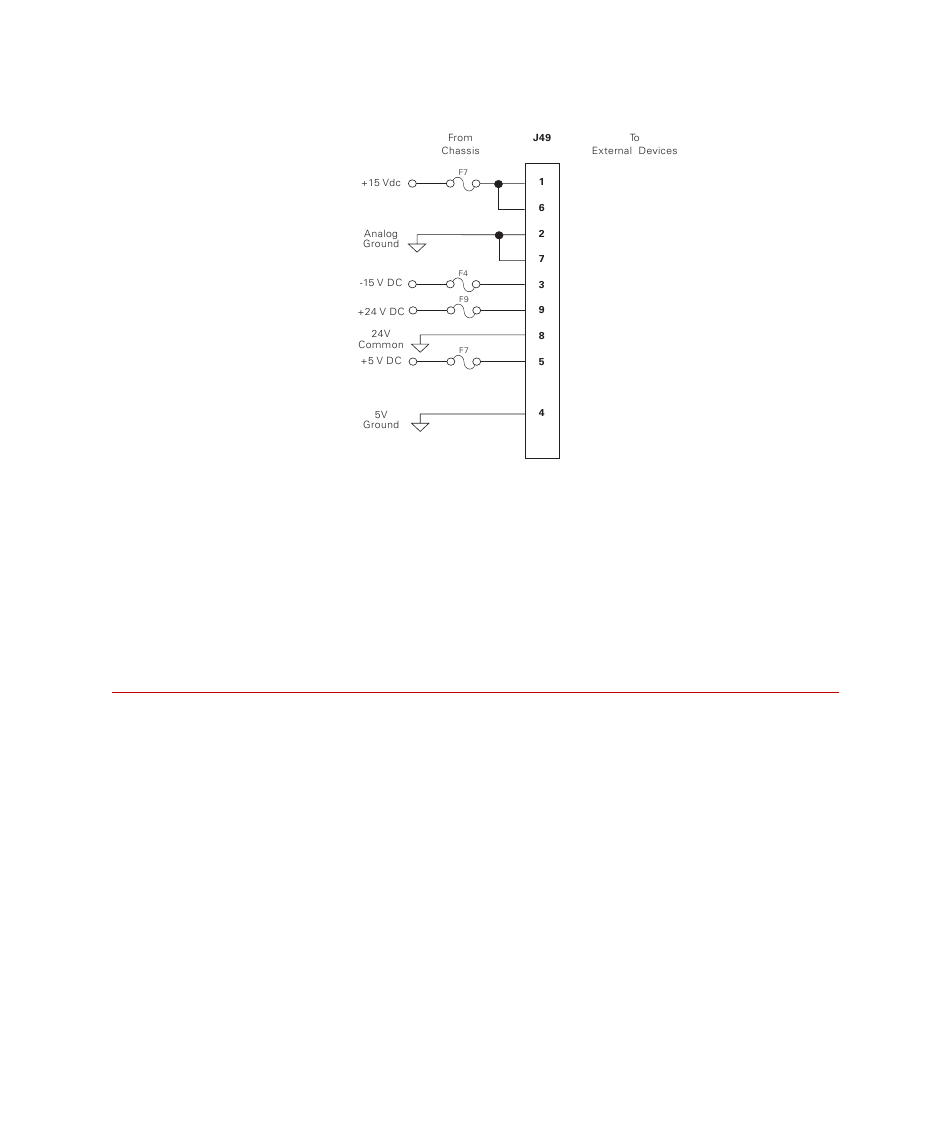

Cable specification

Digital I/O Connections

126
FlexTest GT Controller Connections
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
• 9-contact type D male EMI connector
• Backshell–EMI metallized plastic
• Cable–shielded twisted pairs (22 AWG minimum) with drain
wire(s) connected to the metallized backshell at the chassis.
The Model 493.72 Digital I/O transition module has two connectors;
one provides connections for sixteen digital inputs and the other
provides connections for sixteen digital outputs.
