Adding a temperature
controller resource to
the hardware
interface file
218
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

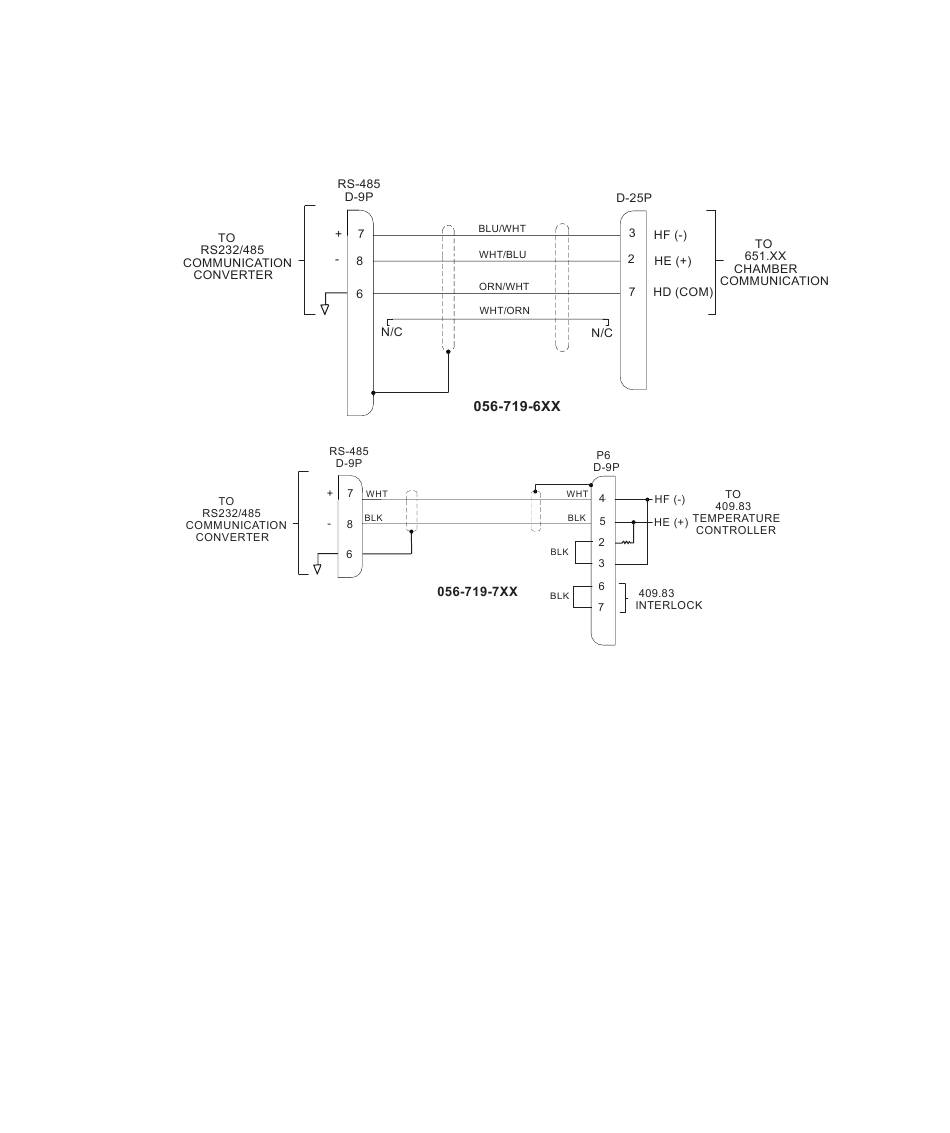

• For MTS Model 409.83 Temperature Controllers (equipped with
Eurotherm control modules), use cable assembly PN 056-719-7xx.
To use a temperature controller with your FlexTest SE Controller, you
must add a temperature controller resource to the Controller's
hardware interface file (hwi). This adds a temperature controller
resource to the inventory of hardware resources available for station
configuration files.
To do this, use the MTS HWI File Editor application (installed with MTS
793 software) to open the Controller's hardware interface file. (The
typical path to this application is: Start > Programs > MTS Systems
Software > Service Tools > HWI File Editor.)
To add the resource, select the Miscellaneous tab and select 1 for
temperature controllers, then save the file. The application
automatically adds the required information in the proper syntax to the
text in the hardware interface file.
MTS 793 Controller Hardware
