HPU Connections

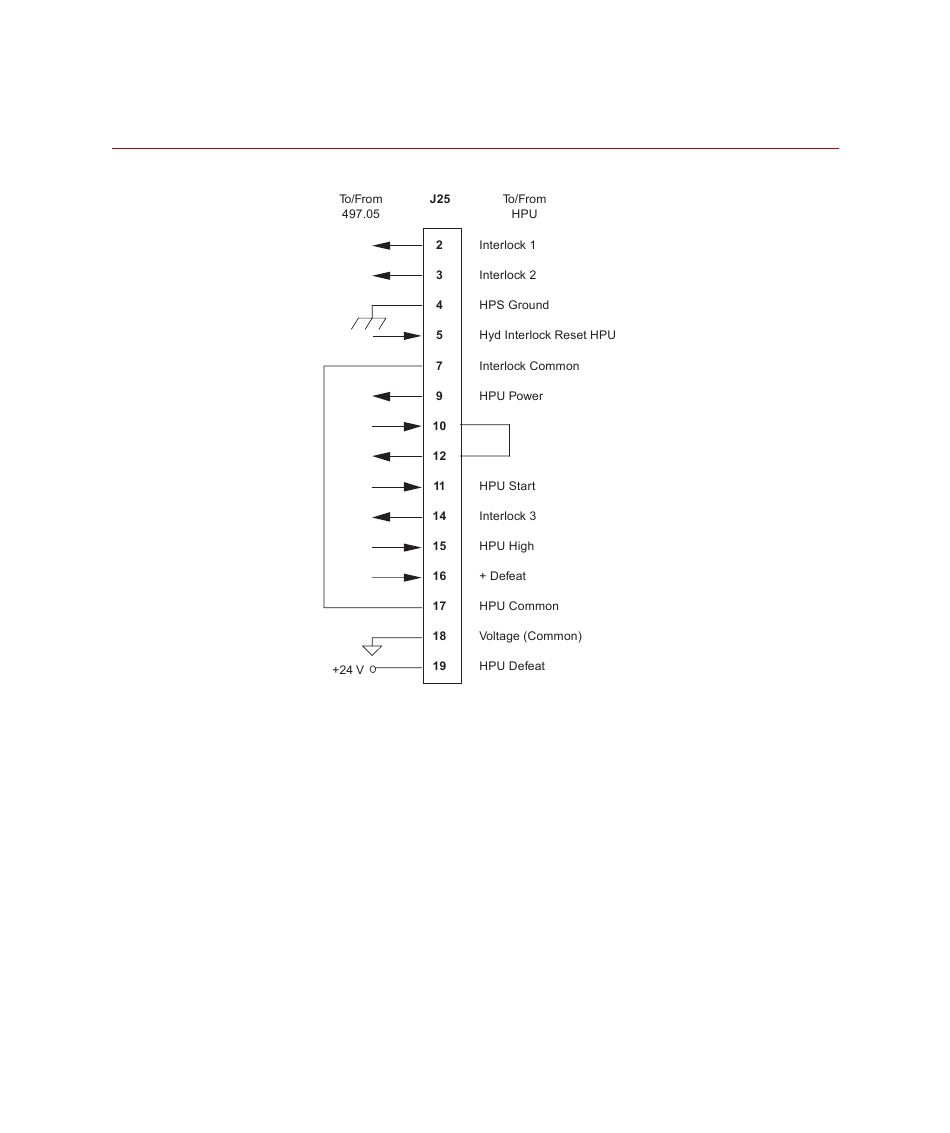

Connector J25
controls the hydraulic
power unit.
Cable specification
Jumper plug
MTS 793 Controller Hardware
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
• P25 is a 24-contact CPC female connector (AMP Incorporated)
• Cable—18 AWG, 14 conductor rated for 300 V
• Compatible with MTS 24 V DC or 115 V AC control cables
• Cable assembly numbers PN 039-708-7XX (24 V DC), 039-708-8XX
(115 V AC)
• Uses special MTS cable material (PN 044-297-301)
If an HPU is not connected to the digital controller, a jumper plug is
required to maintain the integrity of the interlocks. Use jumper plug
039-719-901 or jumper pins: 2 and 3; 3 and 7; 9 and 19; 10 and 12; 11
and 16; 17 and 18.
FlexTest IIm Controller Connections 173
