Installing the 493.02 Chassis (FlexTest SE)
Connecting Electrical Power
Grounding
Grounding the
chassis
System ground cable
(PN 037-766-102)
connected to other
components.
Chassis ground is
connected through the
power cord connector.
52
Installation
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Electrical connections must be made by qualified personnel and
conform to local codes and regulations. An electrical service panel to
provide the electrical power feed (line voltage) to the chassis is not
necessary, but may be required by local electrical codes.
Note Local electrical codes supersede any information found here.
The chassis will not function correctly if it is
not grounded as shown. Be sure your
power source is also properly grounded.

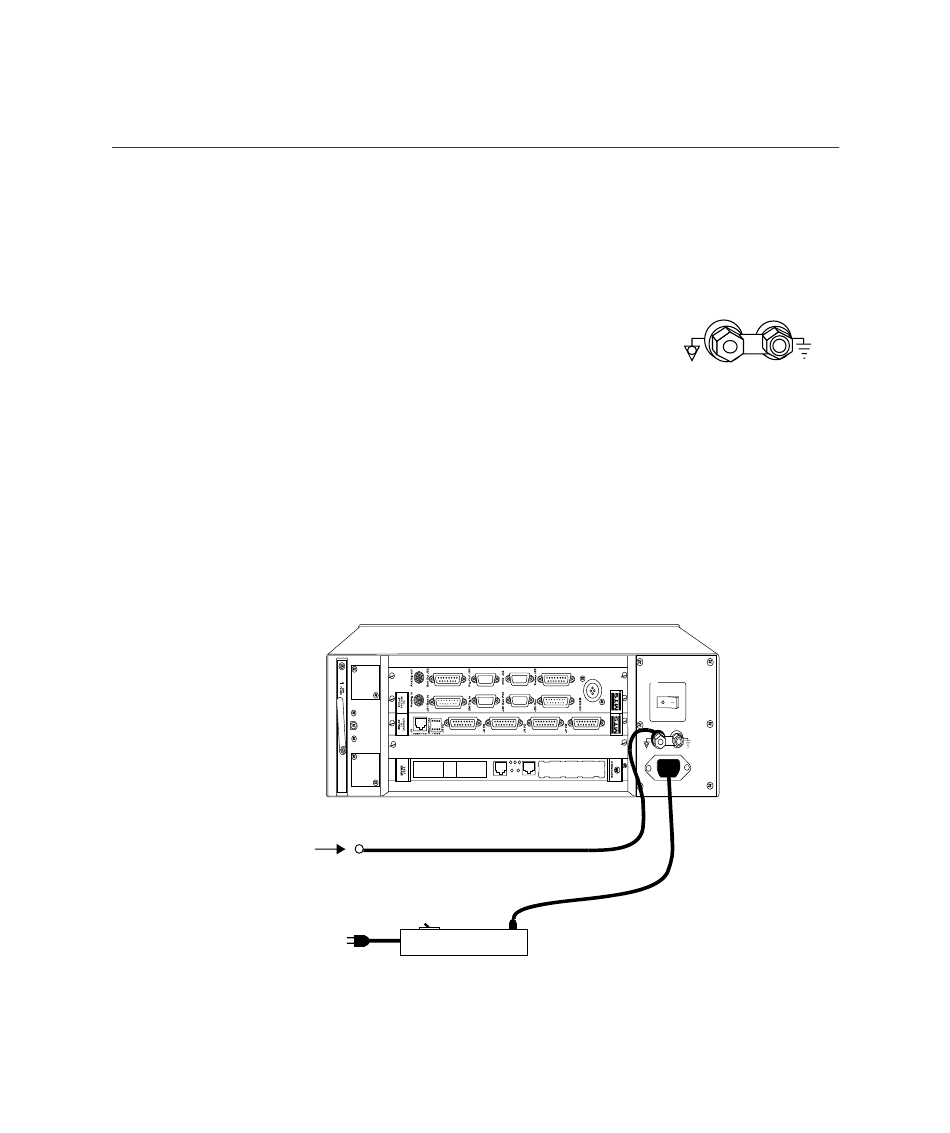

The chassis includes two grounds: a chassis
ground and a signal ground. The two
grounding lugs are connected together with
an external shorting bar when the chassis is manufactured.
• For the console configuration, remove the shorting bar from the
ground lugs and connect the chassis ground to the console rail.
• For a standalone configuration, always connect the shorting bar to
both ground lugs.
T YPE E PC-M IP
T YPE E PC-MIP
Signal
Ground
Power
100–240 VAC
50–60 Hz, 12–6A
RUN 6TS BF L
ABT RST
DE BUG
PCI M EZZANNE CARD
MTS 793 Controller Hardware
Chassis
Ground
TS-G435
