Multiple Universal Driver Connections

MTS 793 Controller Hardware
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
For special applications, the Model 493.79 Multiple Universal Driver
(MUD) board provides up to six drivers that can be used to drive
standard 252 servovalves. Inputs to this board originate from a Model
493.46 D/A board on a Model 493.40 I/O Carrier Module.

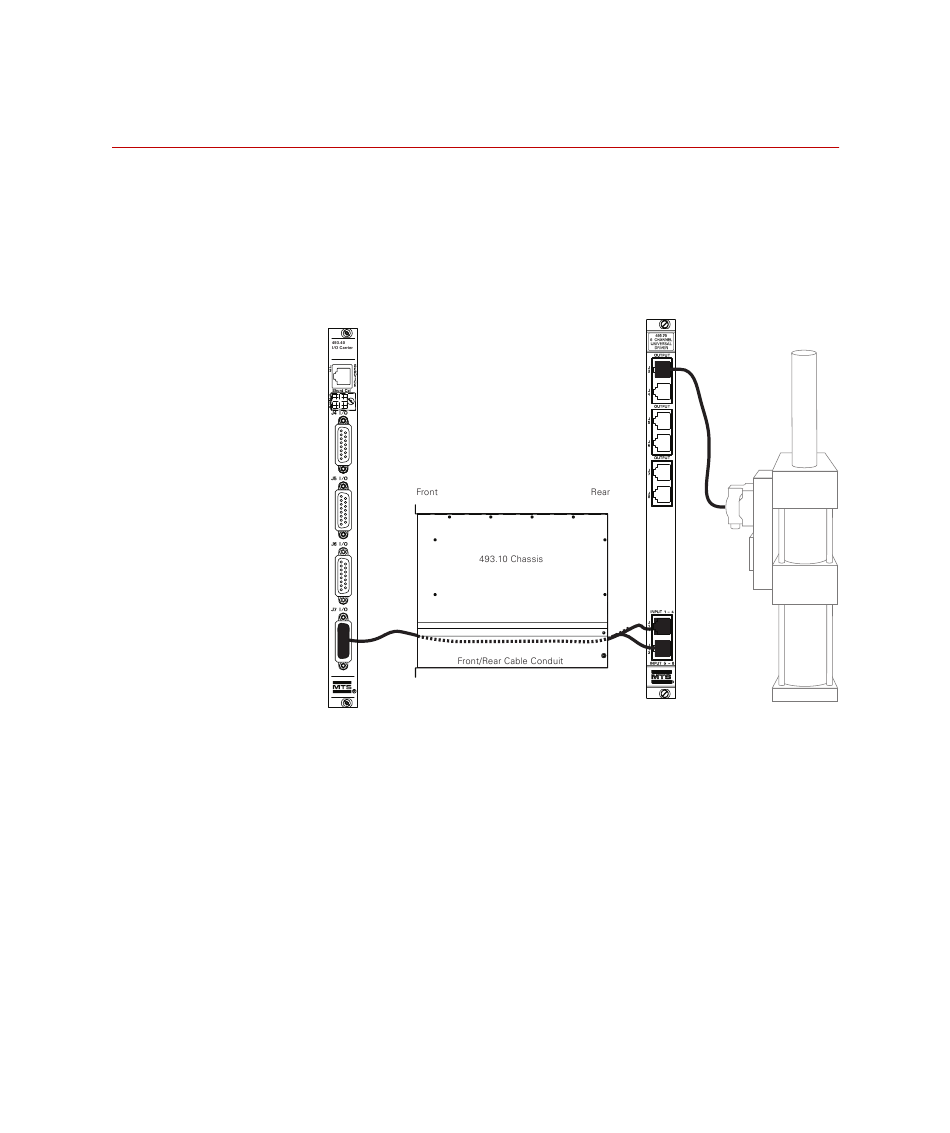

A Y-cable (PN 100-006-173) connects the I/O Carrier module (15 pin,
D-Type) to J9/J10 on a MUD board (RJ45).
FlexTest GT Controller Connections 101
