Adding I/O Carrier

Sensor Connections

204
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
For automated controllers, a second I/O Carrier module can be added
to support a second channel or to expand sensor conditioning. Its
addition can also be used to support more A/D and D/A channels.
Note If you are upgrading your system, a faster processor may be
required. Contact MTS for information on system upgrade
requirements.

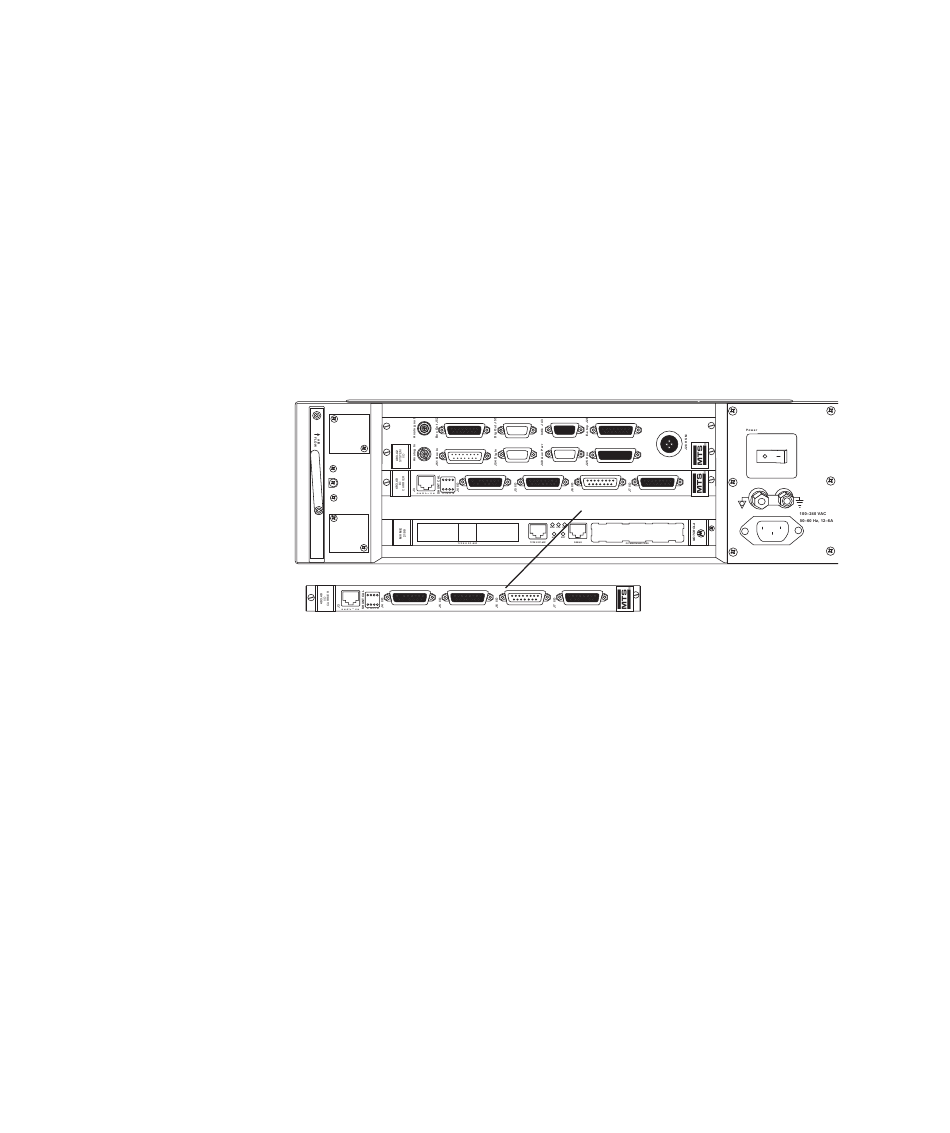

To add a second I/O Carrier module, complete the following:
1. Install the required mezzanine cards in the I/O Carrier module.
2. Install a second Model 493.40 I/O Carrier module in slot 3 of the
controller chassis.
3. Change your hwi file to reflect the added I/O Carrier module and
its mezzanine cards.
4. Use Station Builder to allocate resources for the additional
hardware.
See Sensor Connections
See Sensor Cables 90.
See Shunt Calibration/Bridge Completion Resistor Installation
See Transducer Identification Modules
78.
95.
