Independent Hsm (No Hpu); Independent Hsm (Shared Hpu) - MTS Systems FlexTest IIm Manual

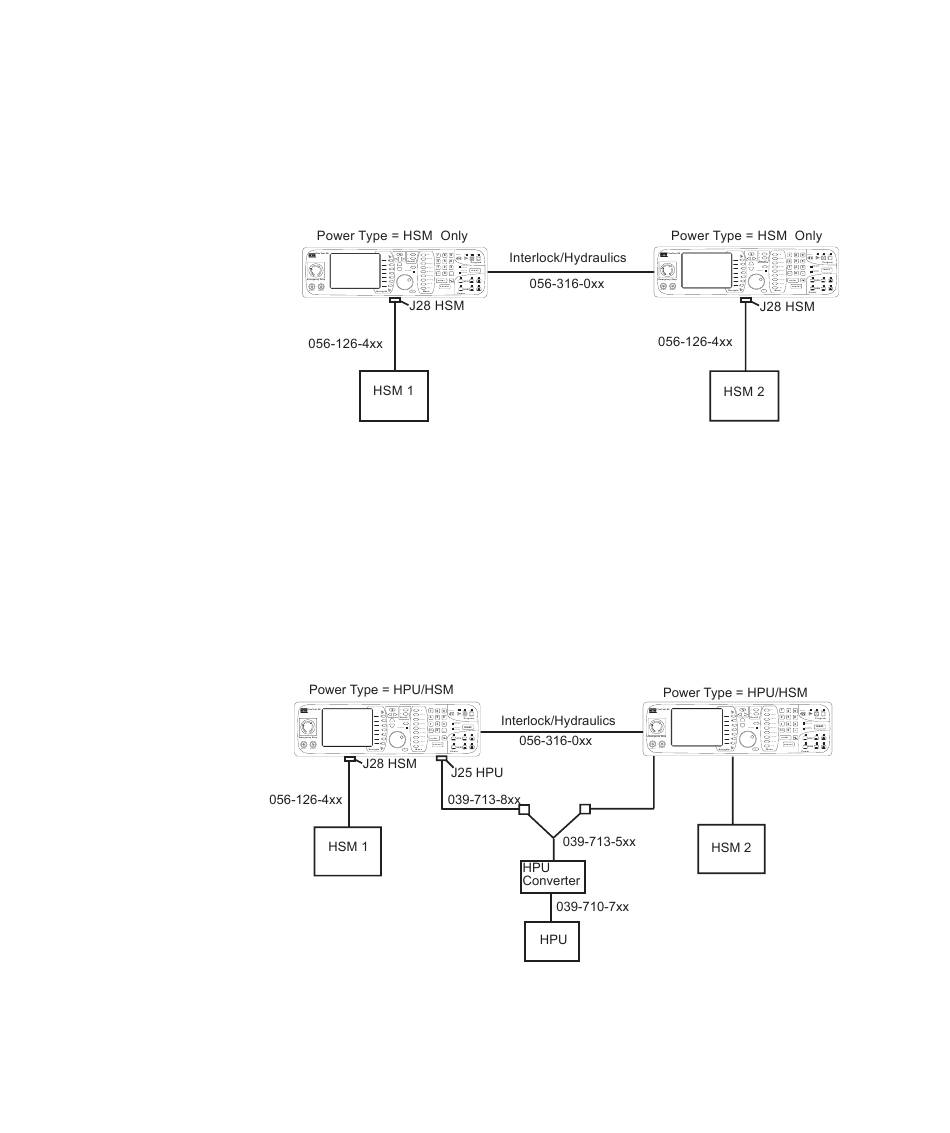

Independent HSM (no HPU)

Independent HSM (shared HPU)

224
Hydraulic Configurations
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
See"Multiple Controller Connections"
User's Manual for more detailed information multiple controller
configurations.
For this multiple controller configuration:
• Each controller has an independent hydraulic service manifold
(HSM).
• No hydraulic power unit (HPU) is connected.
• Select HSM Only for Power Type on each connected controller.
Path: Config > Edit Hardware > Power Options > Power Type
> HSM Only
For this multiple controller configuration:
on page 200 and the FlexTest SE
MTS 793 Controller Hardware
