MTS Systems FlexTest IIm Manual page 193

Eurotherm
Temperature
Controller
J50 connector
Temperature
controller hardware
resource
Program Eurotherm
Temperature
Controller
192
FlexTest IIm Controller Connections
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
498
RS-485
TRANSITION
MODULE
PN 055-634-3XX
J50A
J50B
J50C
J50D
J7 SERIAL
The J50 connectors provide two-way communication between the
FlexTest controller and the Eurotherm temperature controller.
For more information on adding the Eurotherm hwi file resource, see
the Hwi File Editor manual.
Use Station Builder to configure a Eurotherm temperature controller.
Refer to "How to Program a Eurotherm Temperature Controller" in the
MTS 793 Control Software manual for more information.

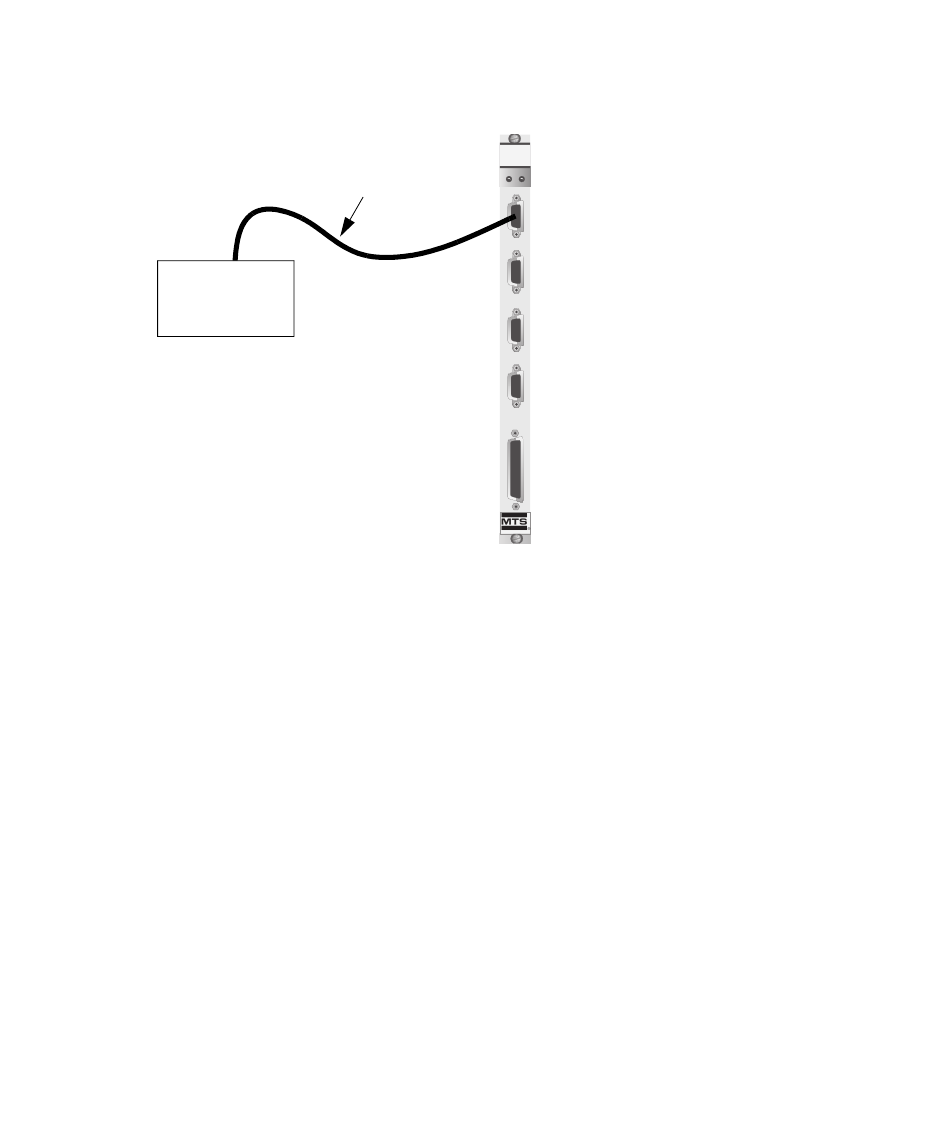

498 RS-485 Transition Module
Cable the Eurotherm temperature
+12V +5V
controller to the proper J50 serial
connector using cable PN 055-634-3XX.
MTS 793 Controller Hardware
