Digital inputs

MTS 793 Controller Hardware
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
The J3 In connector accommodates up to sixteen digital signals from
external devices. You can use digital input signals to trigger test events
with your controller applications.

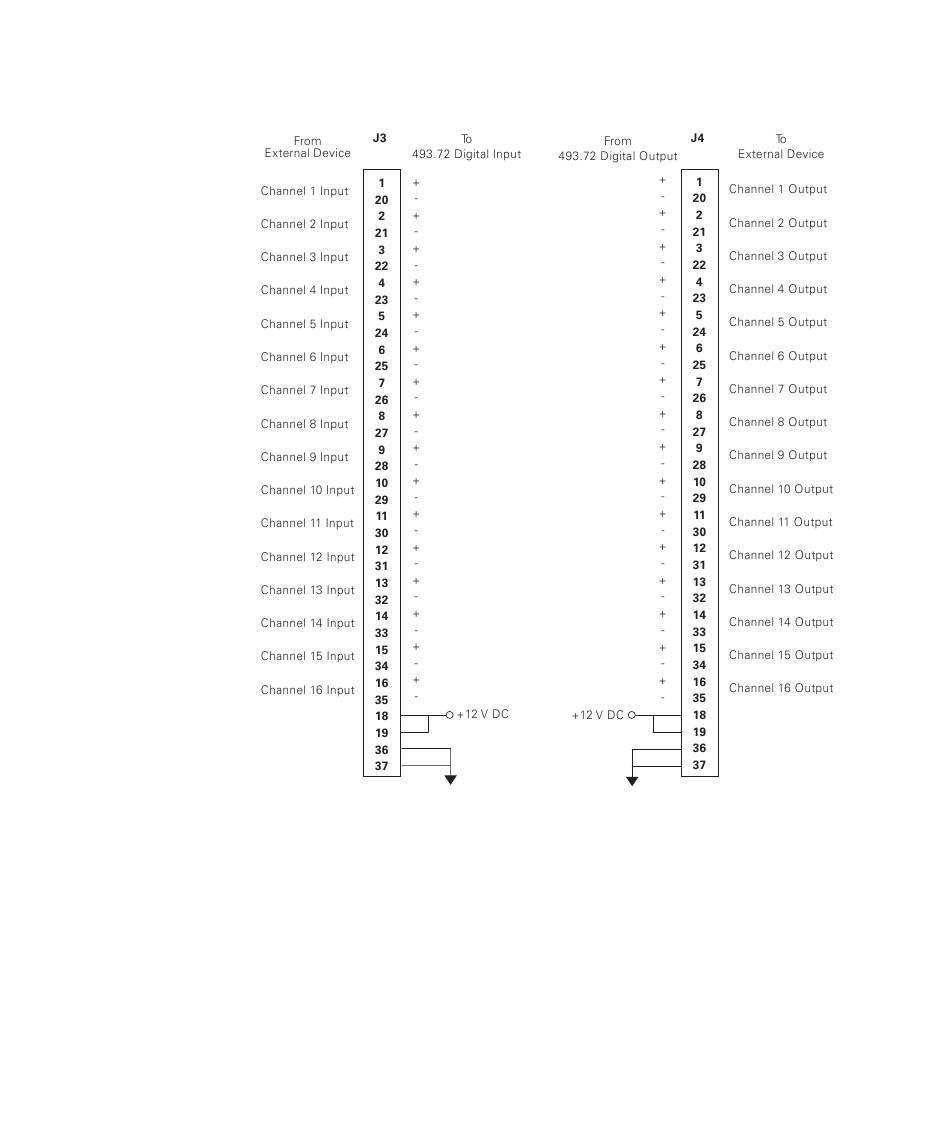

• All of the inputs are optically isolated and support relay contacts
or logic inputs (see the following figure).
• Channel inputs can be 3 volts (minimum) and 26 volts (maximum)
from an external voltage source.
FlexTest GT Controller Connections 127
