Remote Station Controller (RSC) Connections

Remote Station Controller
F1
Interlock HSM
Reset High
Emergency Stop
Low
Off
hwi file additions
186
FlexTest IIm Controller Connections
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
When equipped with a GRES III plug-in module and a corresponding
498 RS-485 transition module, your FlexTest IIm controller can
accommodate up to four remote station controllers (one RSC for each
station).
Each RSC connects to a J50 serial connector on the 498 RS-485
transition module. The hwi file defines which connector is used for
each station.
055-634-3XX
Remote Station Control
F2 F3 F4 Status
HPS Test Manual Control
Enable /
High Run Disable*
Low Hold
Off Stop
In order to use one or more RSCs with your FlexTest controller, two
sections must be added to your hwi file, an RSC section and a GRES III
section.
Note If you specified RSC support when you ordered your test system,
these sections will be added to your hwi file at the factory.
Note For information on editing your hwi file to accommodate RSCs, refer
to the Hwi File Editor manual.
498 RS-485 Transition Module
498
RS-485

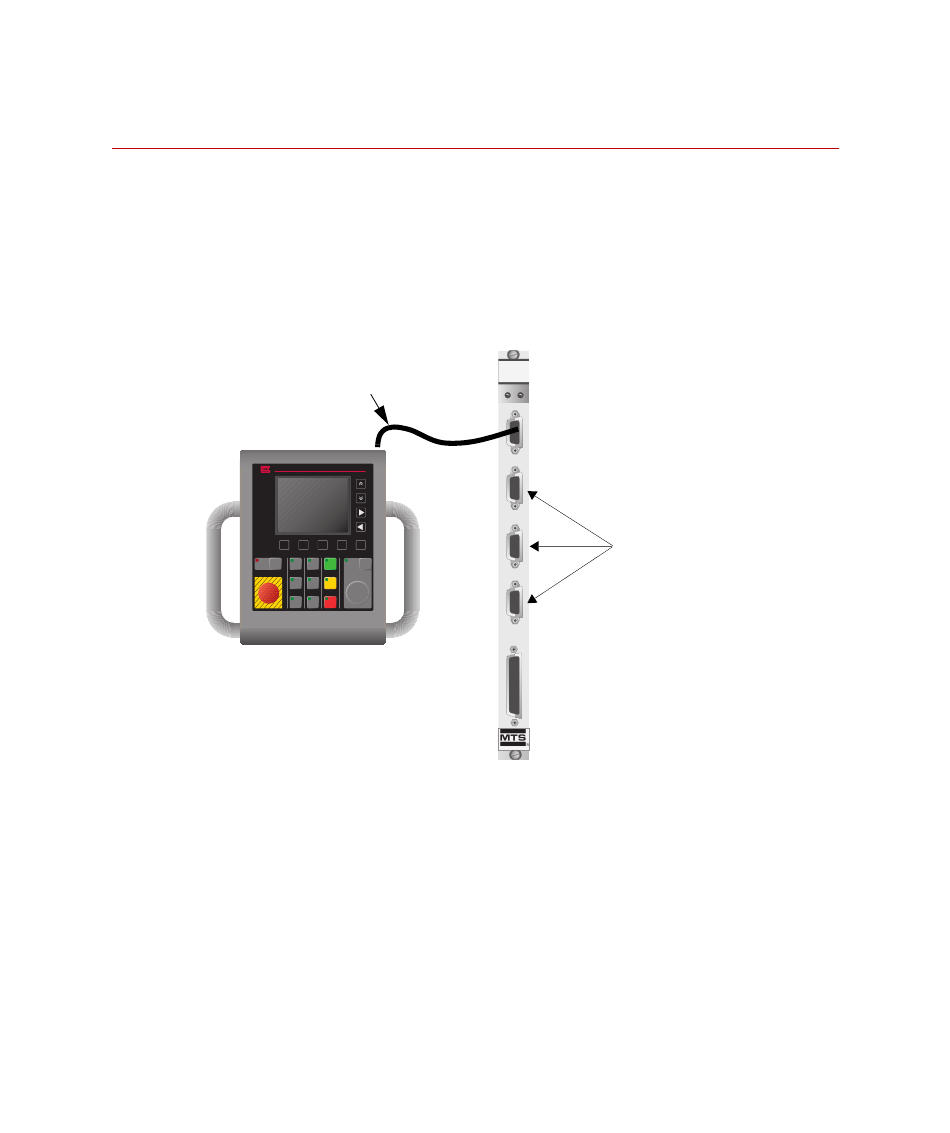

TRANSITION Cable the RSC to the proper J50 serial
MODULE
+12V +5V
connector (usually J50A ) using cable PN
J50A
055-634-3XX.
J50B
J50C
Use Jumper Plug 055-634-101
in these connectors.
J50D
J7 SERIAL
MTS 793 Controller Hardware
