J44 Run/Stop; Interlock Status - MTS Systems FlexTest IIm Manual

Cable specification
Power
characteristics
Jumper plug

J44 Run/Stop

Run/Stop status

Interlock status

124
FlexTest GT Controller Connections
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
• 9-contact type D male EMI connector.
• Backshell–EMI metallized plastic.
• Cable–shielded twisted pairs (24 AWG minimum) with drain
wire(s) connected to the metallized backshell at the chassis.
Channel inputs can be 3 volts (minimum) and 26 volts (maximum)
from an external voltage source.
If connector J43 is not used, you must install a jumper plug to
maintain the integrity of the interlocks. Use jumper plug PN 100-007-
948 or jumper pins 1 and 2; 3 and 4; 5 and 6; 7 and 8.

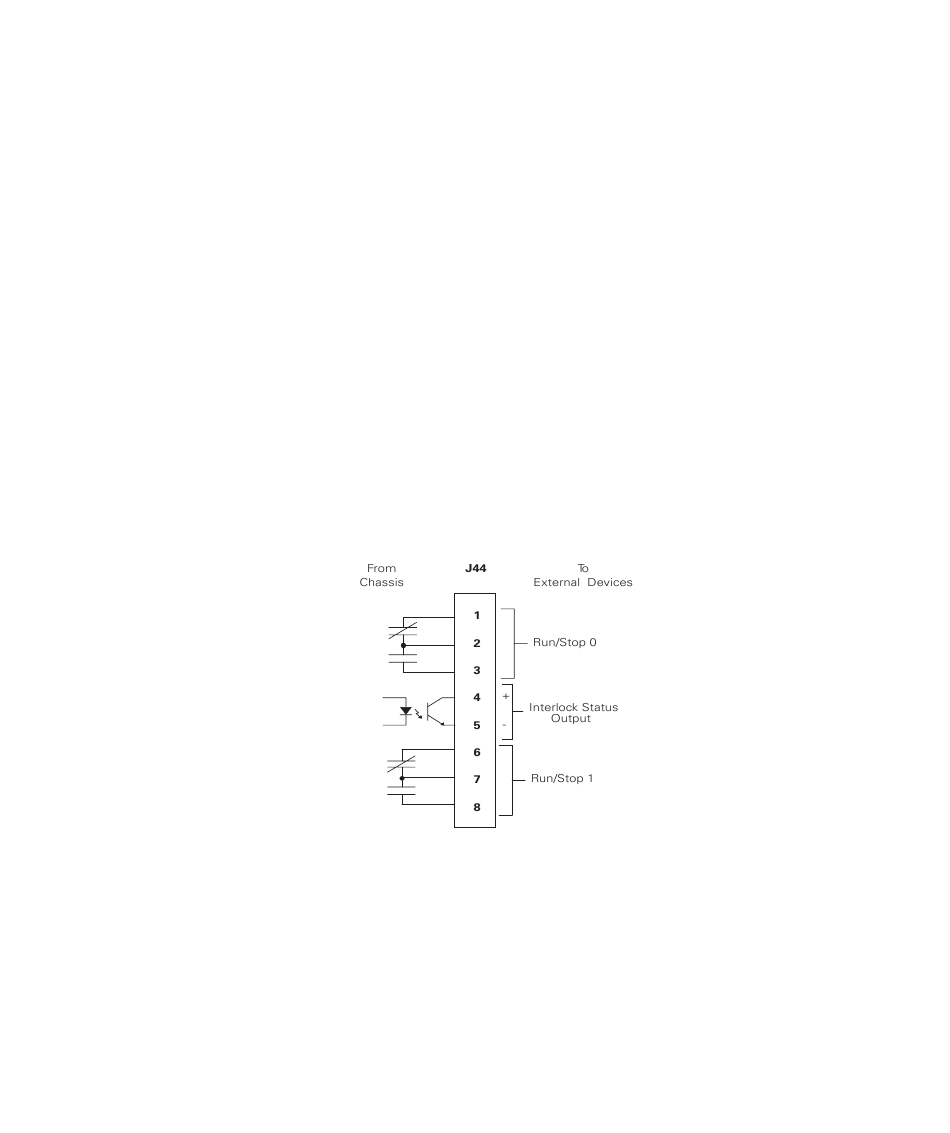

Connector J44 Run/Stop provides the run/stop status of the controller
to external devices.
• Two form C contacts provide the run/stop status.
• The contacts are rated 1.0 A at 30 V (AC or DC).
Connector J44 Run/Stop also provides opto-isolator outputs that
indicate the interlock status of each station to an external device.
These interlock status outputs are normally on and will turn off when
an interlock occurs. See "Digital outputs"
circuit drawings.
on page 128 for detailed
MTS 793 Controller Hardware
