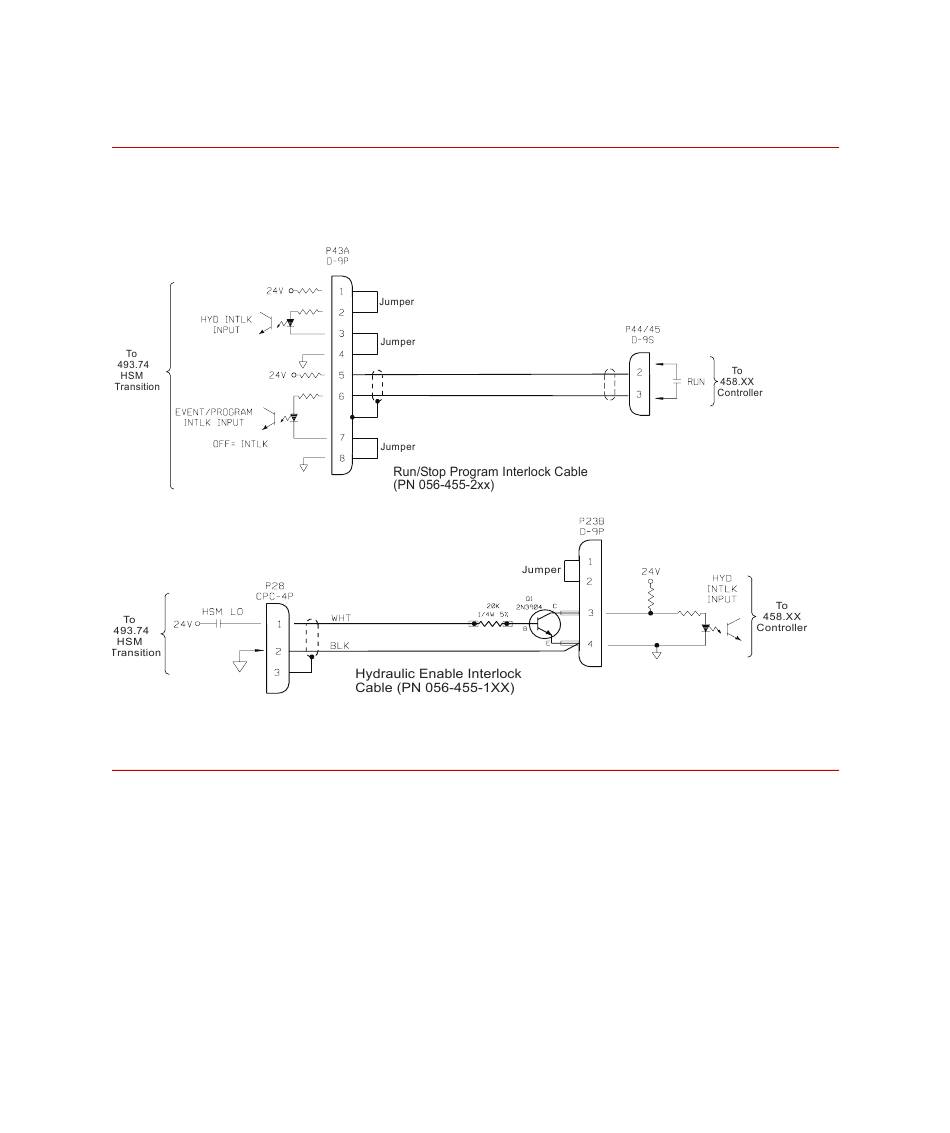

Connecting Interlock Signals to 458 Controllers

Eurotherm Temperature Controller Connection

J50 connectors

148
FlexTest GT Controller Connections
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
FlexTest GT Controllers monitor digital I/O interlock signals through
the Model 493.74 HSM transition module.
When equipped with a Model 498.71B GRES III plug-in module, your
controller can program and control one or more Series 2200/2400
Eurotherm Temperature Controllers via the J50 serial connectors on a
Model 493.71 Serial Interface transition module.
In order to use this configuration, a special temperature controller
resource must be added to your hwi file.
The temperature controller can be connected to any of the four J50
connectors on the serial interface.
