Analog inputs
114
FlexTest GT Controller Connections
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

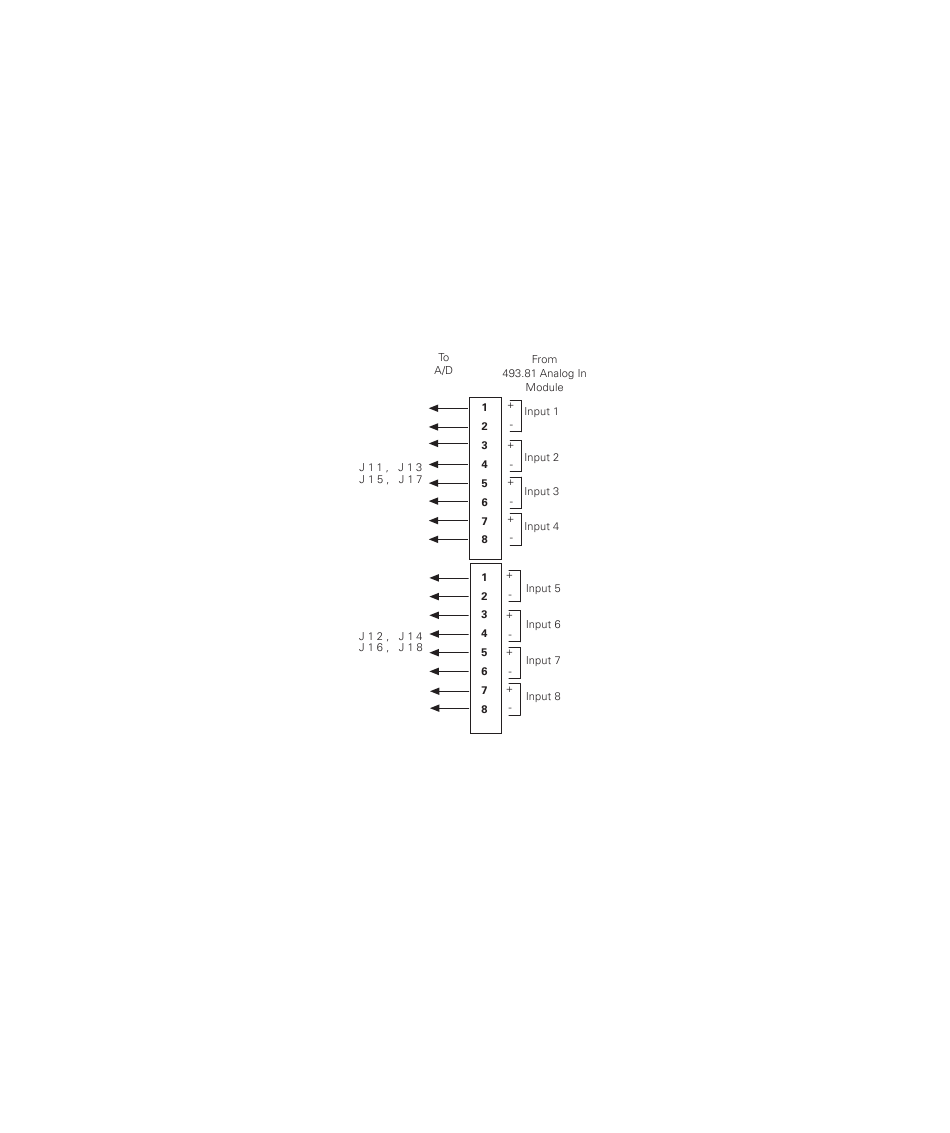

The analog-to-digital mezzanine cards accommodate up to eight
analog input signals. Each A/D input signal must be within ±10 volts.
• Analog inputs can be connected at the BNC connectors of a Model
493.81 Analog In transition module and the outputs from this
module are connected to the Model 493.50 ADDA II module.
• Analog inputs can be connected at the BNC connectors of a Model
493.83 Filtered Analog Input transition module and the outputs
from this module are connected to the Model 493.50 ADDA II
module.
