VMEbus Modules

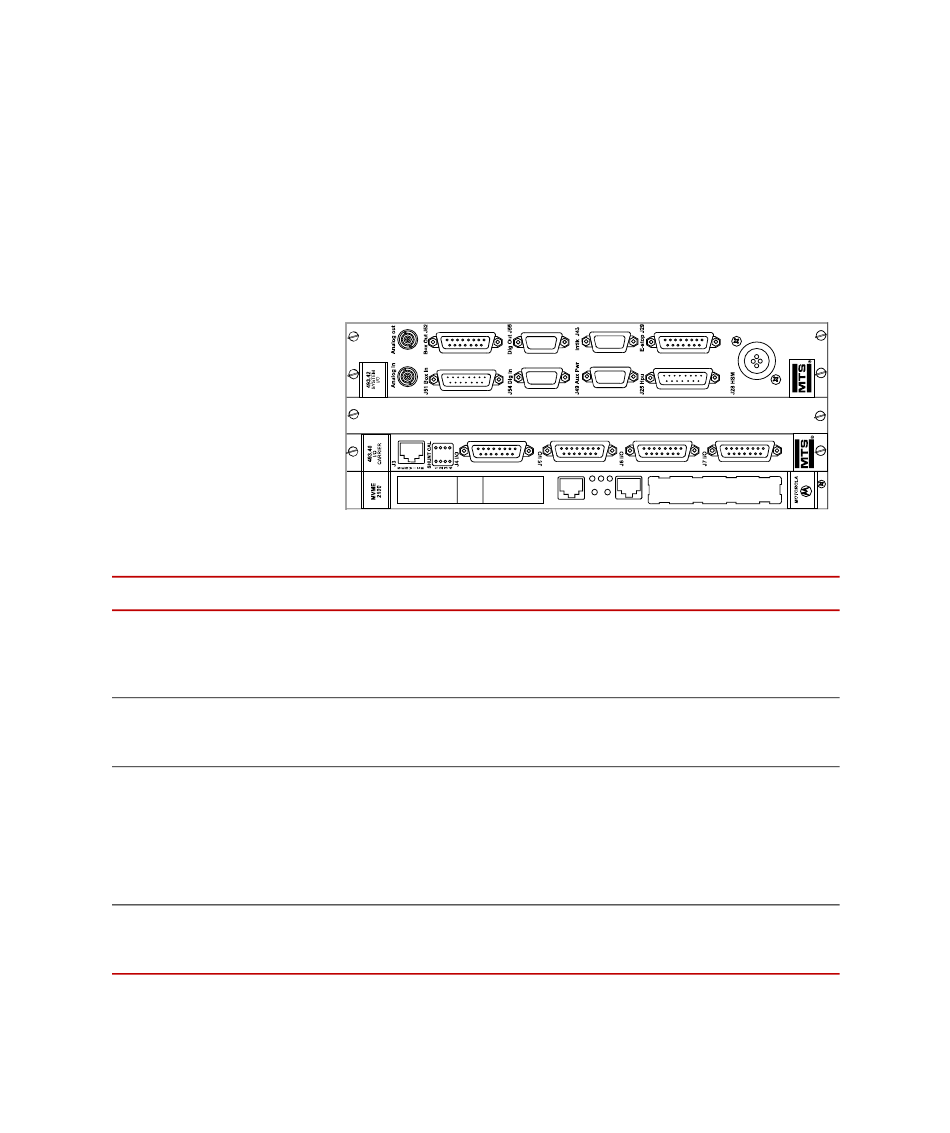

Placement of
VMEbus modules
in the chassis
S M
LOT ODULE
Slot 1 Processor
Slot 2 Model 493. 40 I/O Carrier
Slot 3 Blank in standard
configurations.
May be used for additional
Model 493.40 I/O Carrier
(factory installed option for
automated systems)
Slots 4, 5 Model 493.42 System I/O
MTS 793 Controller Hardware
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
The VMEbus compatible modules should be installed in chassis slots
according to the following guidelines.
• The processor module is installed in slot 1
• The I/O carrier module is installed in slot 2.
• The System I/O module is installed in slots 4 and 5.
5
4
3
2
1
TYPE E PC-MIP
VMEbus Modules
N
AME
Provides PIDF processing for the Controller and management
of the other plug-in modules in the standalone configuration.
Provides an interface between the Controller and an external
computer in the automated configuration.
Supports up to four mezzanine cards that can be used for
sensor conditioning, driving a servovalve, and in the
automated configuration, providing A/D and/or D/A channels.
Additional carrier chassis that can house up to four
mezzanine cards for expanded sensor conditioning and A/D
and D/A channels
Note This is not a standard option. It is available only for
automated systems and must be configured at the
factory. For more information, contact MTS.
Provides box-in and box-out connections for daisy chaining
multiple Controllers, analog and digital I/O, E-Stop, and HSM
and HPU control.
Installing the 493.02 Chassis (FlexTest SE)
RUN 6TS BFL
ABT RST
TYPE E PC-MIP DEBUG
PCI MEZZANNE CARD
F
UNCTION
Installation 49
