How to connect
hydraulic terminals on
master-dependent 407
Controllers

Sending and Receiving Signals to a Model 407 Controller

MTS 793 Controller Hardware
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

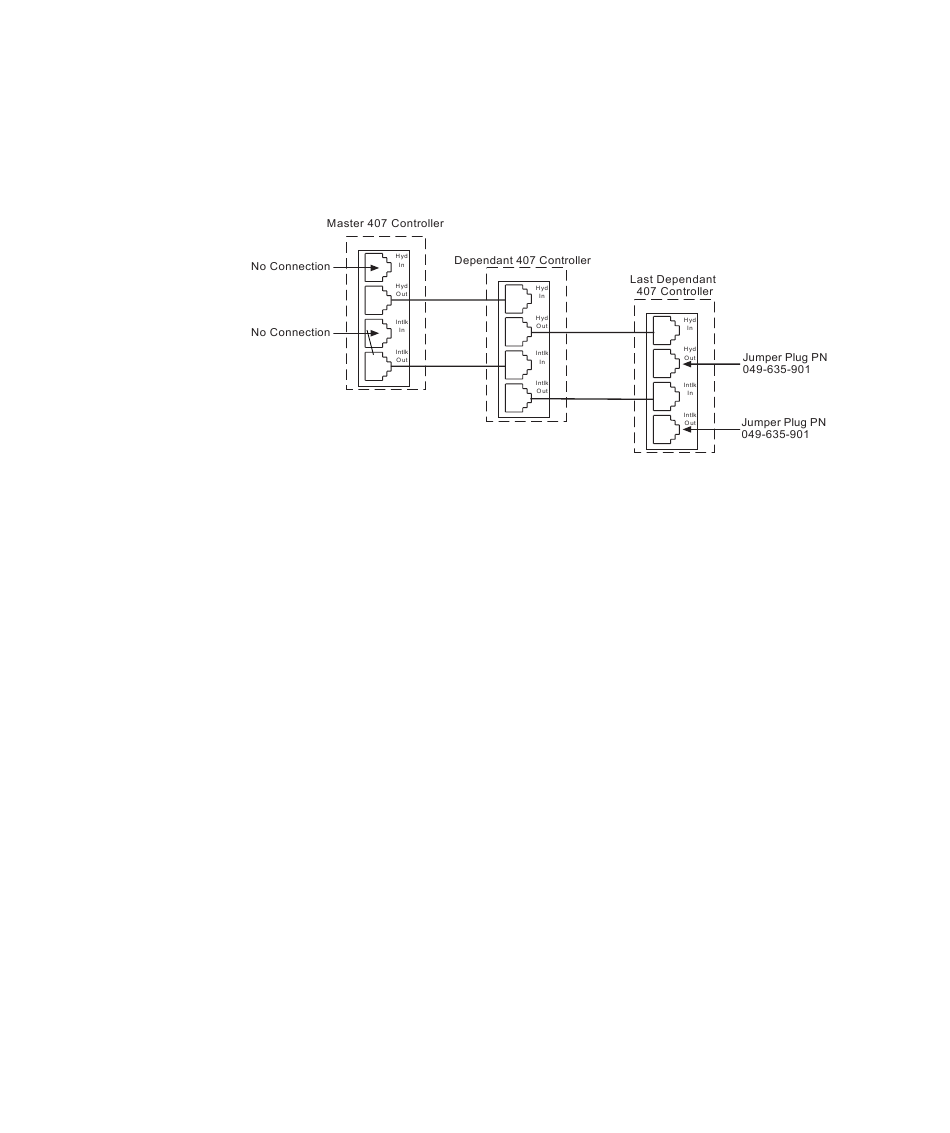

The following figure shows how to cable hydraulic terminals on three
Model 407 Controllers in a master-dependent daisy-chain. Note that the
last dependent controller in any daisy-chain must have jumper plugs
installed in its Hyd Out and Intlk In terminals.
After cabling the Model 407 Controller, you must configure it to receive
and send signals from the FlexTest GT Controller. The tables below list
typical menu settings. Refer to the Model 407 Controller Product
Information Manual for more information.
FlexTest GT Controller Connections 145
