Model 2281S-20-6 DC Power Supply and Battery Simulator Reference Manual

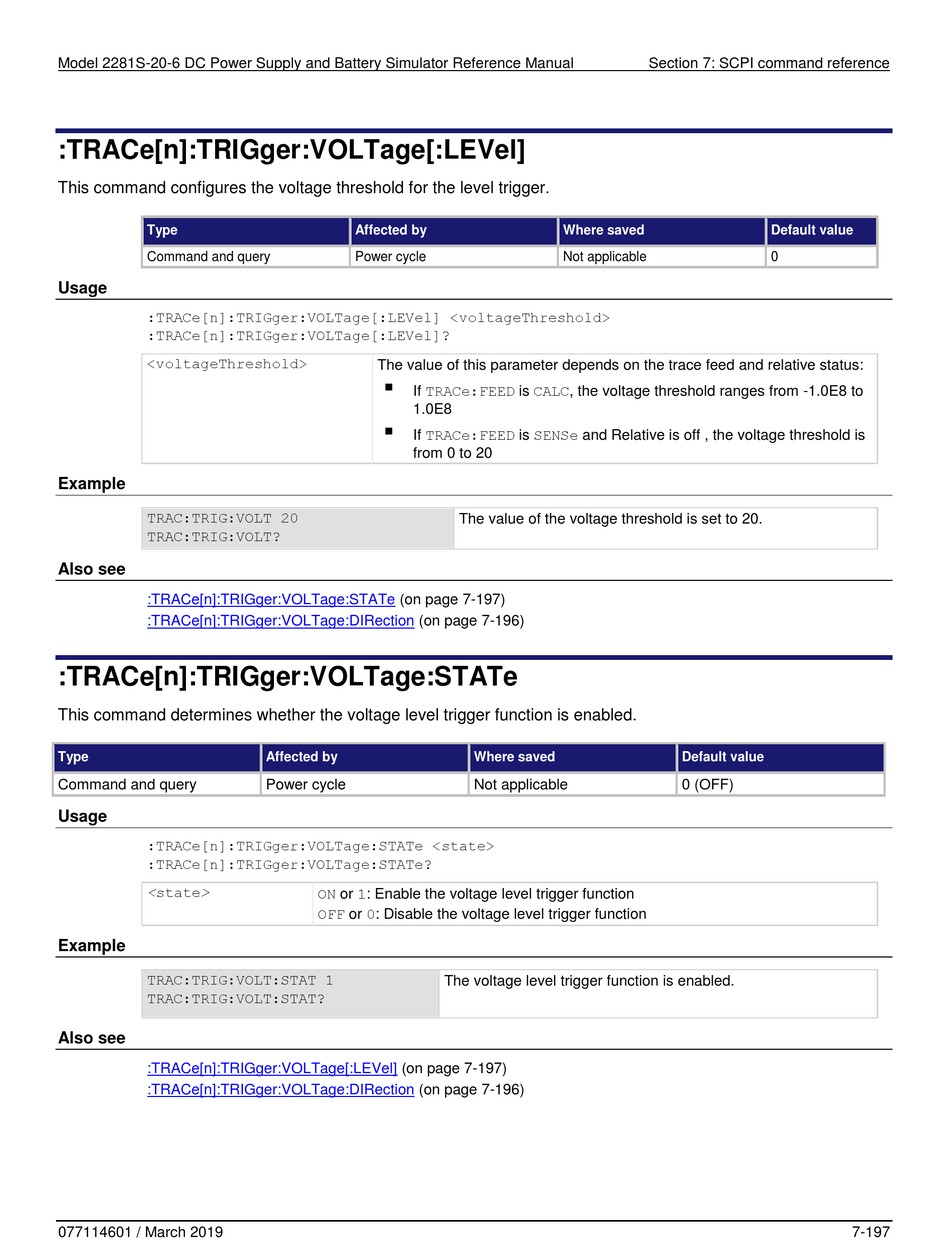

:TRACe[n]:TRIGger:VOLTage[:LEVel]

This command configures the voltage threshold for the level trigger.
Type
Command and query
Usage
:TRACe[n]:TRIGger:VOLTage[:LEVel] <voltageThreshold>
:TRACe[n]:TRIGger:VOLTage[:LEVel]?
<voltageThreshold>
Example
TRAC:TRIG:VOLT 20
TRAC:TRIG:VOLT?
Also see

:TRACe[n]:TRIGger:VOLTage:STATe

:TRACe[n]:TRIGger:VOLTage:DIRection
:TRACe[n]:TRIGger:VOLTage:STATe
This command determines whether the voltage level trigger function is enabled.
Type
Command and query
Usage
:TRACe[n]:TRIGger:VOLTage:STATe <state>
:TRACe[n]:TRIGger:VOLTage:STATe?
<state>
Example
TRAC:TRIG:VOLT:STAT 1
TRAC:TRIG:VOLT:STAT?
Also see
:TRACe[n]:TRIGger:VOLTage[:LEVel]
:TRACe[n]:TRIGger:VOLTage:DIRection
077114601 / March 2019
Affected by
Power cycle
The value of this parameter depends on the trace feed and relative status:

If TRACe:FEED is CALC, the voltage threshold ranges from -1.0E8 to
1.0E8

If TRACe:FEED is SENSe and Relative is off , the voltage threshold is
from 0 to 20
(on page 7-197)
(on page 7-196)
Affected by
Power cycle
ON or 1: Enable the voltage level trigger function
OFF or 0: Disable the voltage level trigger function
The voltage level trigger function is enabled.
(on page 7-197)
(on page 7-196)
Where saved
Not applicable
The value of the voltage threshold is set to 20.
Where saved
Not applicable
Section 7: SCPI command reference
Default value
0
Default value
0 (OFF)
7-197
