Section 5: Application examples

Battery simulation test

The following example demonstrates the procedure of simulating a battery with 2281S in the battery
simulation function.

Equipment required

One 2281S DC Power Supply and Battery Simulator
A cellphone supplied by a battery
Wires

Device connections

The device under test and 2281S can be connected by two-wire sense connection, as shown in the
following figure. However, four-wire sense connection is recommended because it can cancel out the
wire resistance.
For other details, refer to
connection (on page 2-64).
5-16
Model 2281S-20-6 DC Power Supply and Battery Simulator Reference Manual

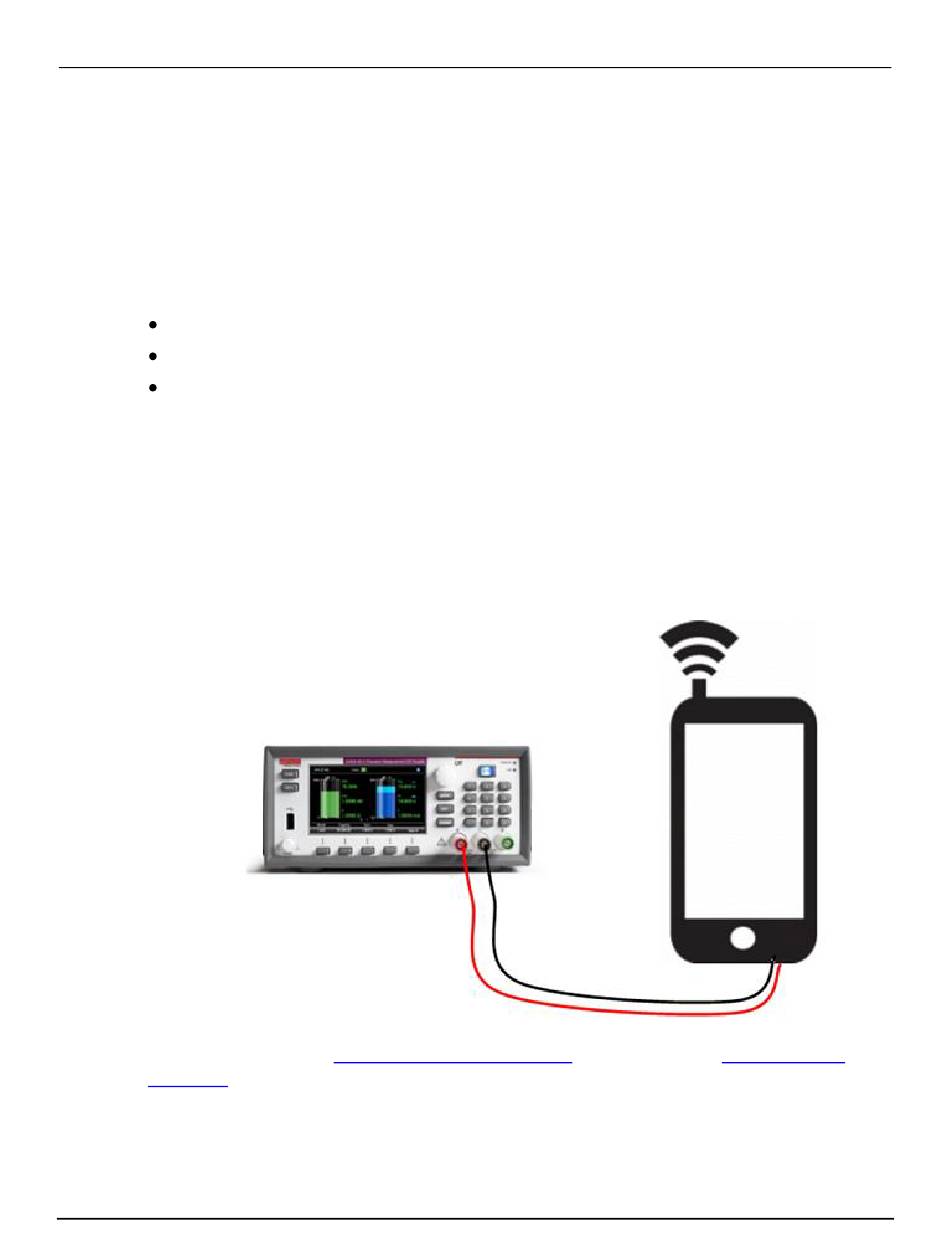

Figure 124: Battery simulation device connection
Two-wire local sense connection (on page 2-63) and Four-wire sense
