Model 2281S-20-6 DC Power Supply and Battery Simulator Reference Manual

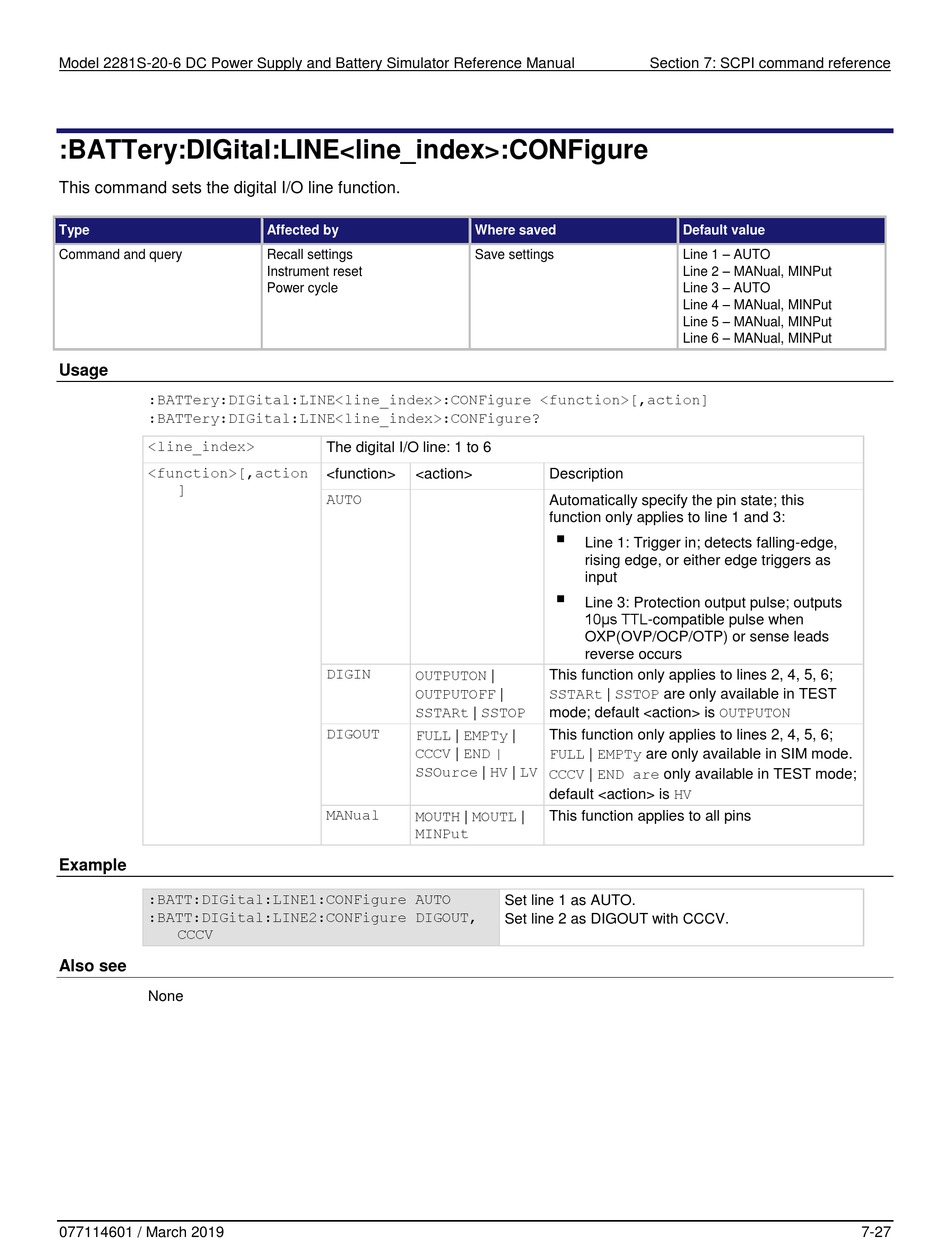

:BATTery:DIGital:LINE<line_index>:CONFigure
This command sets the digital I/O line function.
Type
Command and query
Usage
:BATTery:DIGital:LINE<line_index>:CONFigure <function>[,action]
:BATTery:DIGital:LINE<line_index>:CONFigure?
<line_index>
<function>[,action
]
Example
:BATT:DIGital:LINE1:CONFigure AUTO
:BATT:DIGital:LINE2:CONFigure DIGOUT,
CCCV
Also see
None
077114601 / March 2019
Affected by
Recall settings
Instrument reset
Power cycle
The digital I/O line: 1 to 6
<function> <action>
AUTO
DIGIN
OUTPUTON |
OUTPUTOFF |
SSTARt | SSTOP
DIGOUT
FULL | EMPTy |
CCCV | END |
SSOurce | HV | LV
MANual
MOUTH | MOUTL |
MINPut
Section 7: SCPI command reference
Where saved
Save settings
Description
Automatically specify the pin state; this
function only applies to line 1 and 3:

Line 1: Trigger in; detects falling-edge,
rising edge, or either edge triggers as
input

Line 3: Protection output pulse; outputs
10μs TTL-compatible pulse when
OXP(OVP/OCP/OTP) or sense leads
reverse occurs
This function only applies to lines 2, 4, 5, 6;
SSTARt | SSTOP are only available in TEST
mode; default <action> is OUTPUTON
This function only applies to lines 2, 4, 5, 6;
FULL | EMPTy are only available in SIM mode.
CCCV | END are only available in TEST mode;
default <action> is HV
This function applies to all pins
Set line 1 as AUTO.
Set line 2 as DIGOUT with CCCV.
Default value
Line 1 – AUTO
Line 2 – MANual, MINPut
Line 3 – AUTO
Line 4 – MANual, MINPut
Line 5 – MANual, MINPut
Line 6 – MANual, MINPut
7-27
