Model 2281S-20-6 DC Power Supply and Battery Simulator Reference Manual
Generating a battery model
To generate a battery model using the front panel:
1. Select the battery test function in the startup screen.
2. After charging is finished, go to the battery test home screen by pressing HOME on the front
panel.
3. Select Measure AH in the soft key area 3.
4. Select Model: Generate.
5. Set the Voc range for the battery model.
6. Name the battery model.
7. Select Yes to save the battery model. The 2281S can save up to nine battery models.
To generate a battery model using SCPI commands:
:STAT:OPER:INST:ISUM:COND?
:BATT:TEST:SENS:AH:GMOD:RANG 2.5, 3.7
:BATT:TEST:SENS:AH:GMOD:SAVE:INTE 1
These commands:
Query whether the measurement is done.
Set the range for generating the battery model.
Save the battery model to the internal memory.
077114601 / March 2019

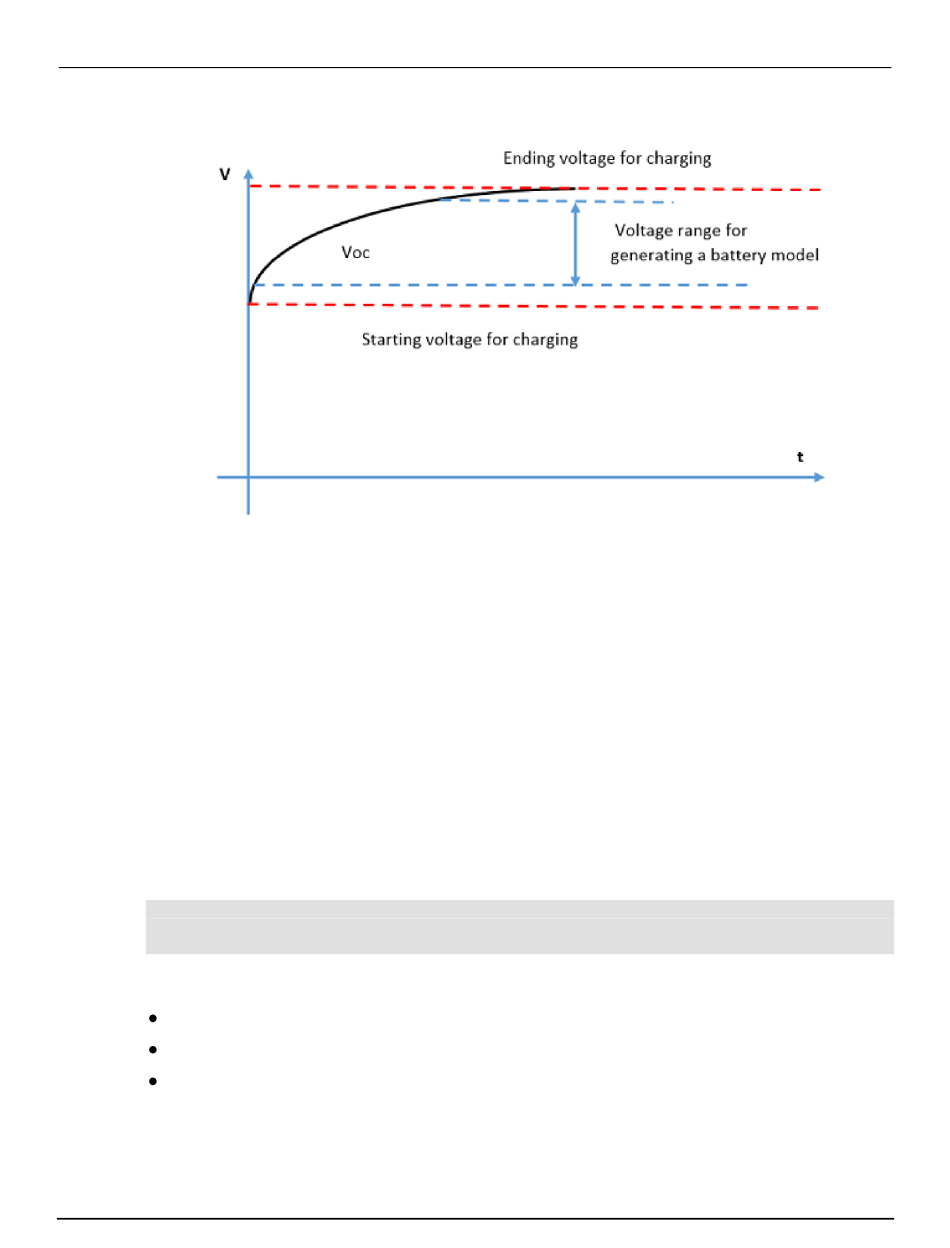

Figure 100: Setting voltage range for a battery model
Section 3: Functions and features
3-61
