Tektronix Keithley 2281 Series Reference Manual page 30

Model 2281S-20-6 DC Power Supply and Battery Simulator Reference Manual
List and recall settings indicator
This indicator shows the specified list number or recall settings.
Error and event indicator
Move the focus to the error and event indicator using navigation control and press the ENTER key to
see the present error and event messages. With the focus on the Event Log button, press ENTER to
see the Error and Event Log.
077114601 / March 2019

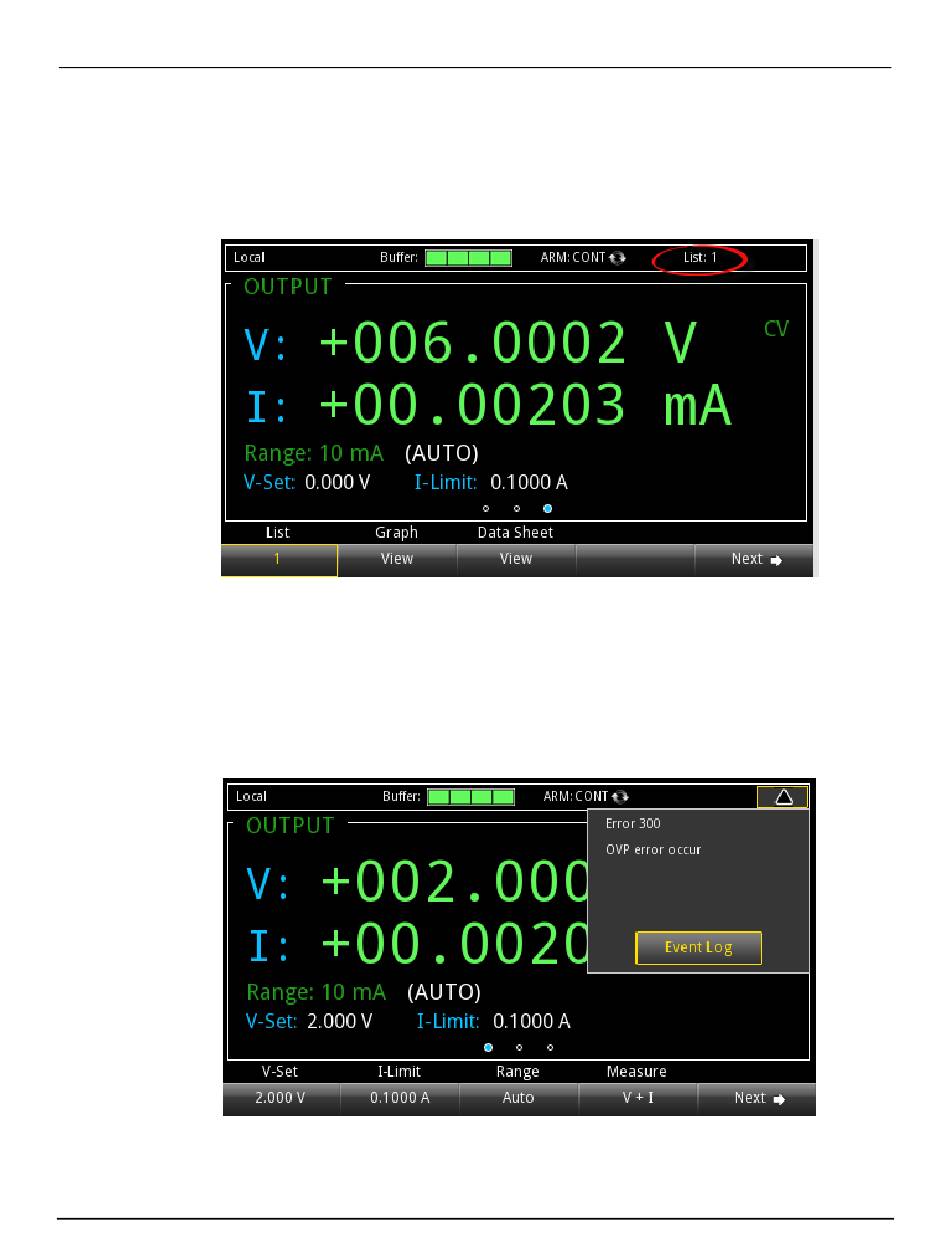

Figure 8: List and recall settings indicator
Figure 9: Error and event indicator
Section 2: General operation
2-7
