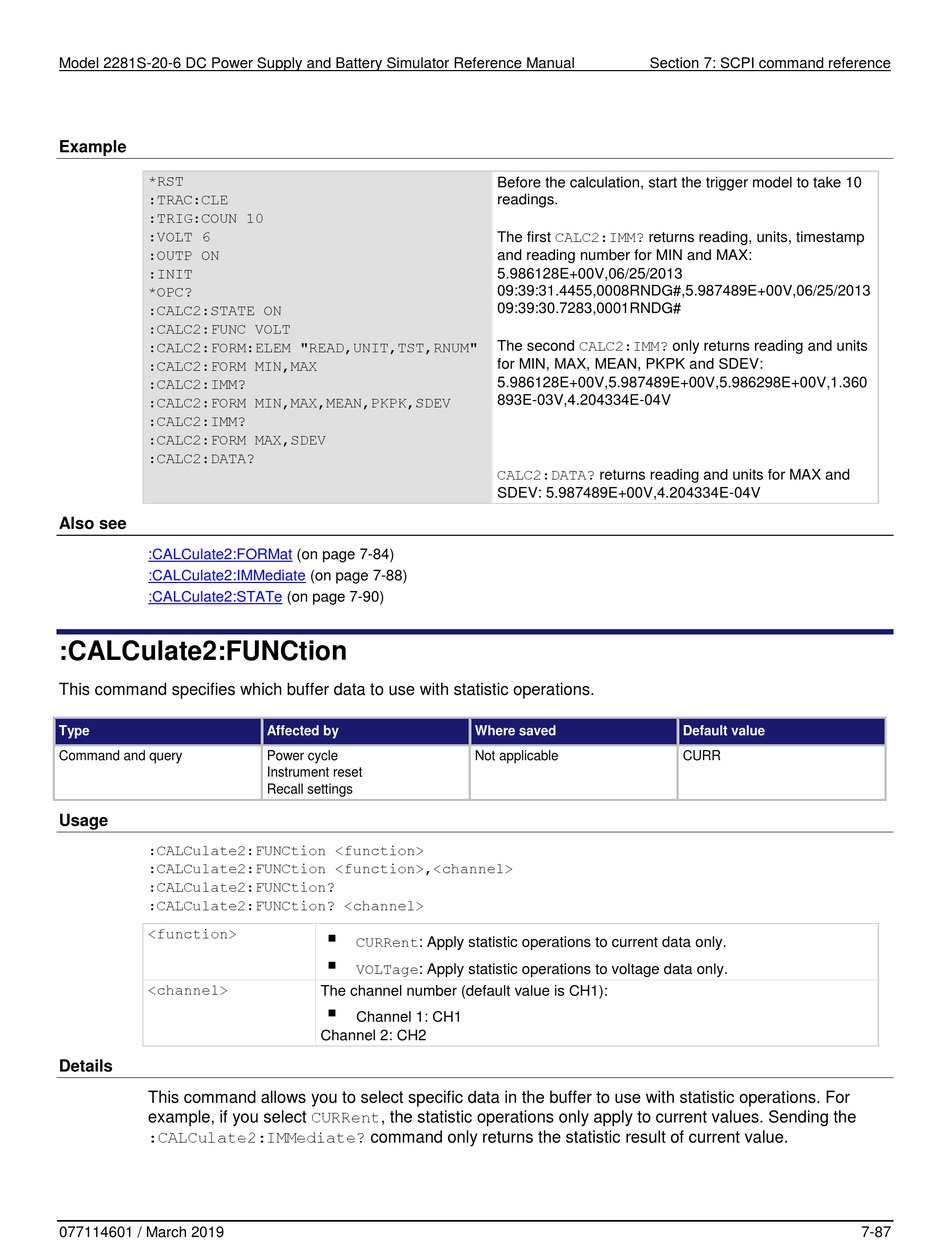

Model 2281S-20-6 DC Power Supply and Battery Simulator Reference Manual
Example
*RST
:TRAC:CLE
:TRIG:COUN 10
:VOLT 6
:OUTP ON
:INIT
*OPC?
:CALC2:STATE ON
:CALC2:FUNC VOLT
:CALC2:FORM:ELEM "READ,UNIT,TST,RNUM"
:CALC2:FORM MIN,MAX
:CALC2:IMM?
:CALC2:FORM MIN,MAX,MEAN,PKPK,SDEV
:CALC2:IMM?
:CALC2:FORM MAX,SDEV
:CALC2:DATA?
Also see
:CALCulate2:FORMat
:CALCulate2:IMMediate
:CALCulate2:STATe
:CALCulate2:FUNCtion
This command specifies which buffer data to use with statistic operations.
Type
Command and query
Usage
:CALCulate2:FUNCtion <function>
:CALCulate2:FUNCtion <function>,<channel>
:CALCulate2:FUNCtion?
:CALCulate2:FUNCtion? <channel>
<function>
<channel>
Details
This command allows you to select specific data in the buffer to use with statistic operations. For
example, if you select CURRent, the statistic operations only apply to current values. Sending the
:CALCulate2:IMMediate? command only returns the statistic result of current value.
