Section 2: General operation

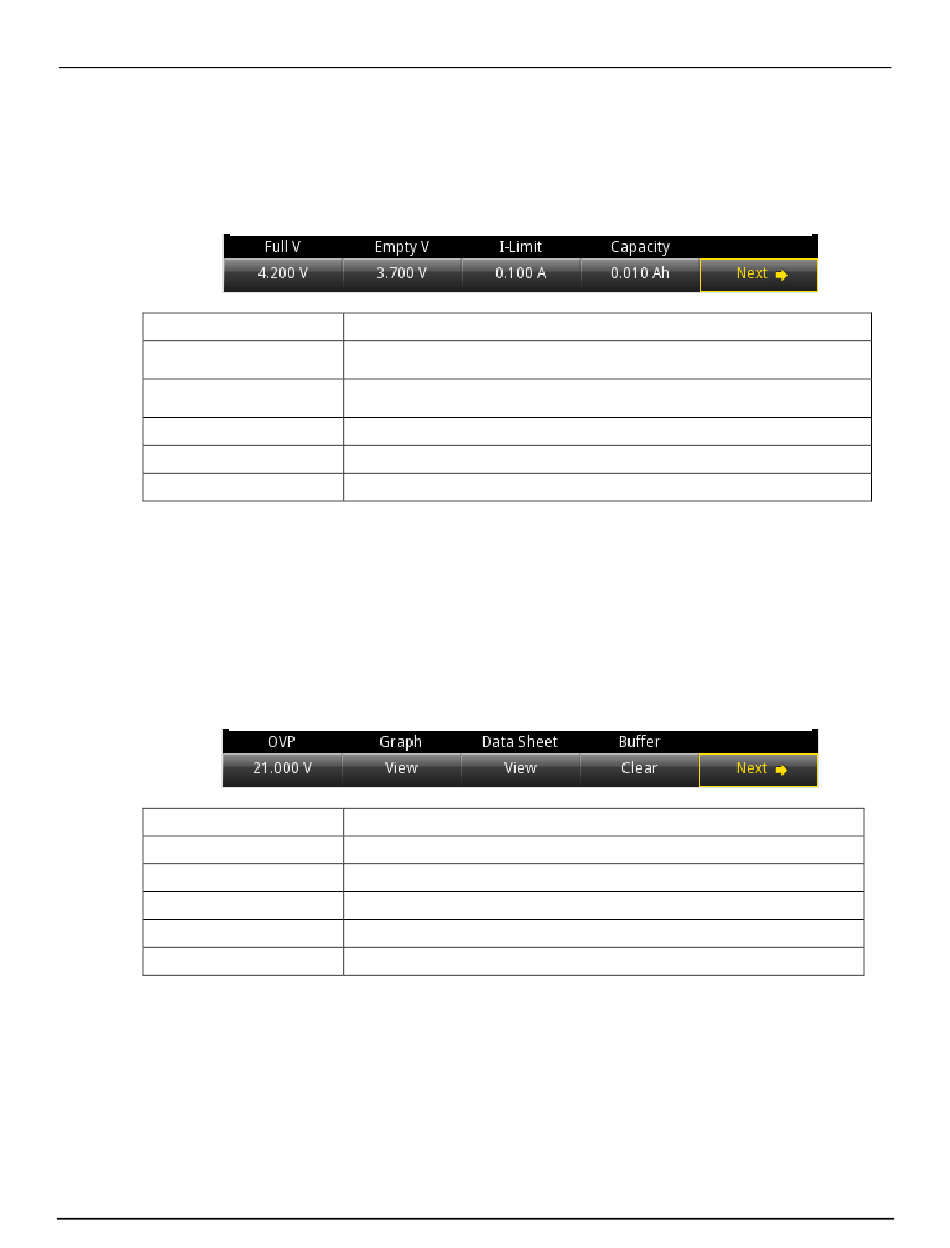

Soft key area 2 for the battery simulator function
Soft key area 2 contains the settings shown in the following figure and explained in the table.
Setting
Full V
Empty V
I-Limit
Capacity
Next
Soft key area 3 for the battery simulator function
Soft key area 3 contains the settings shown in the following figure and explained in the table. To
change a setting, press the soft key to open a setting window. After configuration, close the window
by pressing the ENTER or EXIT key.
Setting
OVP
Graph
Data Sheet
Buffer
Next
2-18
Model 2281S-20-6 DC Power Supply and Battery Simulator Reference Manual
Figure 20: Soft key area 2 for battery simulation
Description
Set the voltage value when the battery is fully charged. Charging stops when
the voltage reaches this value.
Set the voltage value when the battery is completely discharged. Discharging
stops when the voltage reaches this value.
Set the maximum current value for discharging.
Set the battery capacity.
Switch to home screen 3.
Figure 21: Soft key area 3 for battery simulation
Description
Set the voltage threshold for overvoltage protection.
View the graph of the measurement.
View the data sheet of the measurement.
Clear the data buffer.
Switch to home screen 1.
