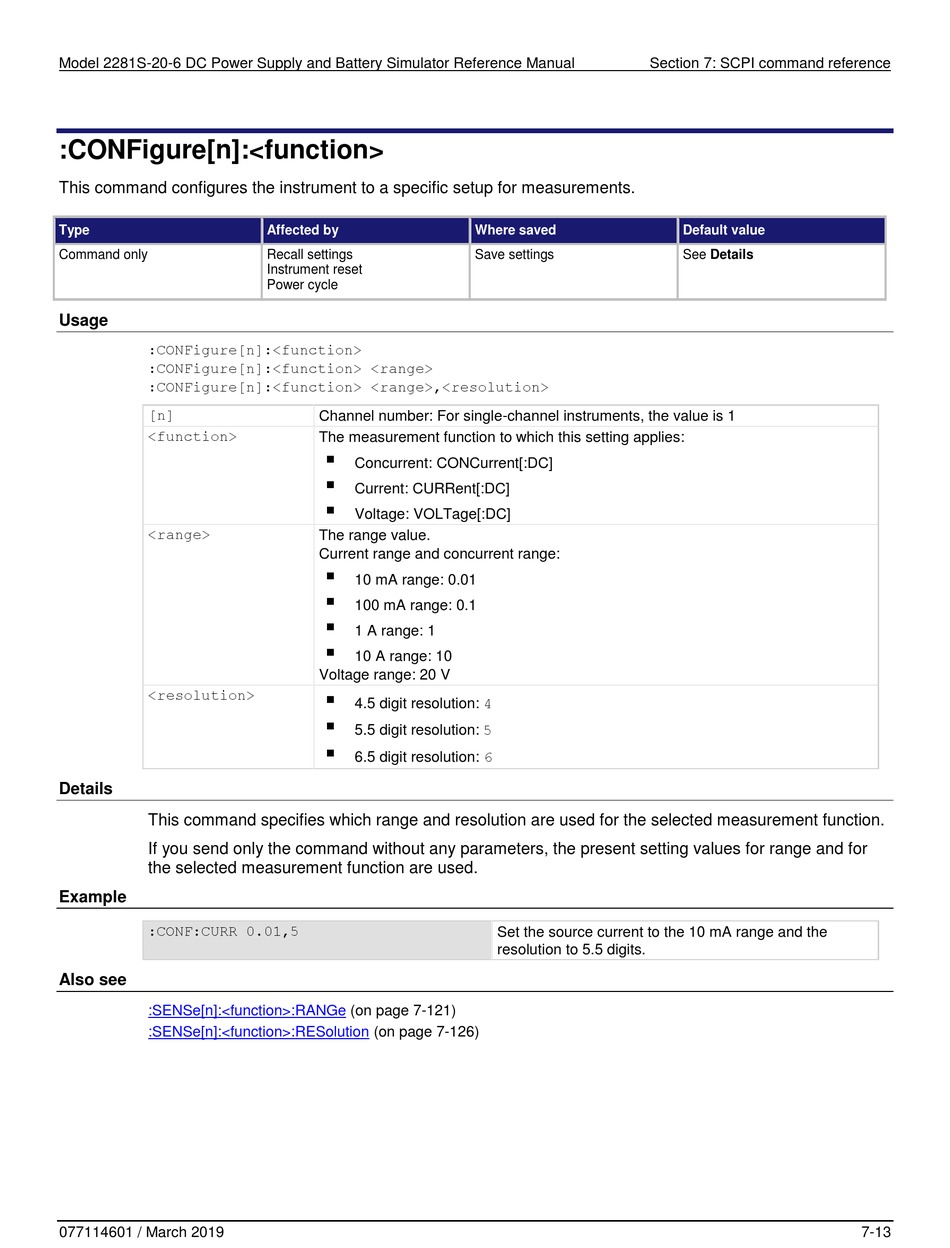

:CONFigure[n]:<function>
This command configures the instrument to a specific setup for measurements.
Type
Command only
Usage
:CONFigure[n]:<function>
:CONFigure[n]:<function> <range>
:CONFigure[n]:<function> <range>,<resolution>
[n]
<function>
<range>
<resolution>
Details
This command specifies which range and resolution are used for the selected measurement function.
If you send only the command without any parameters, the present setting values for range and for
the selected measurement function are used.
Example
:CONF:CURR 0.01,5
Also see
:SENSe[n]:<function>:RANGe
:SENSe[n]:<function>:RESolution
077114601 / March 2019
Affected by
Recall settings
Instrument reset
Power cycle
Channel number: For single-channel instruments, the value is 1
The measurement function to which this setting applies:

Concurrent: CONCurrent[:DC]

Current: CURRent[:DC]

Voltage: VOLTage[:DC]
The range value.
Current range and concurrent range:

10 mA range: 0.01

100 mA range: 0.1

1 A range: 1

10 A range: 10
Voltage range: 20 V

4.5 digit resolution: 4

5.5 digit resolution: 5

6.5 digit resolution: 6
(on page 7-121)
(on page 7-126)
