Section 2: General operation
Take a snapshot and fetch data in the virtual front panel
You can take a snapshot of the 2281S LCD display and fetch buffered test data on the web page.
To take a snapshot:
1. From the navigation bar of the web interface home page, select Virtual Front Panel.
2. If you are prompted for a password, enter it and select Submit. The default password is admin.
3. In the left upper corner of the virtual front panel, select Operation. The Snapshot and Fetch Data
options are displayed.
4. Select Snapshot. A dialog box indicating Screen Snapshot copied to clipboard is
displayed.
5. Select OK.
6. Paste the snapshot into your report.
To get buffered data:
1. From the navigation bar of the web interface home page, select Virtual Front Panel.
2. If you are prompted for a password, enter it and select Submit. The default password is admin.
3. In the left upper corner of the virtual front panel, select Operation. The Snapshot and Fetch Data
options are displayed.
2-82
Model 2281S-20-6 DC Power Supply and Battery Simulator Reference Manual

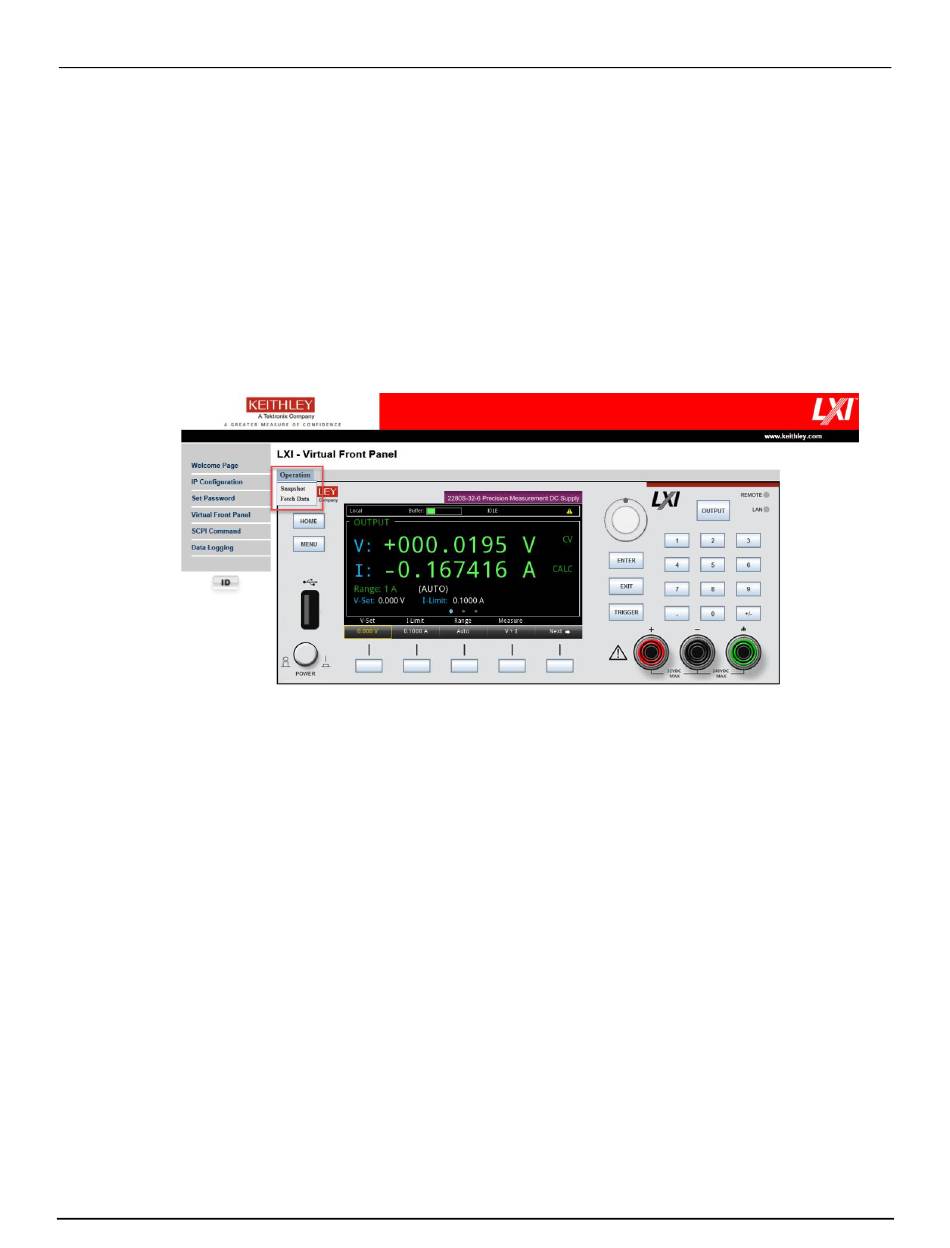

Figure 54: 2281S Virtual Front Panel
