Model 2281S-20-6 DC Power Supply and Battery Simulator Reference Manual
Appendix C: Calibration and adjustment

Voltage calibration connections

For voltage calibration, connect the digital multimeter (DMM) to the 2281S. For the DMM
specifications, see
Required equipment
(on page C-3).

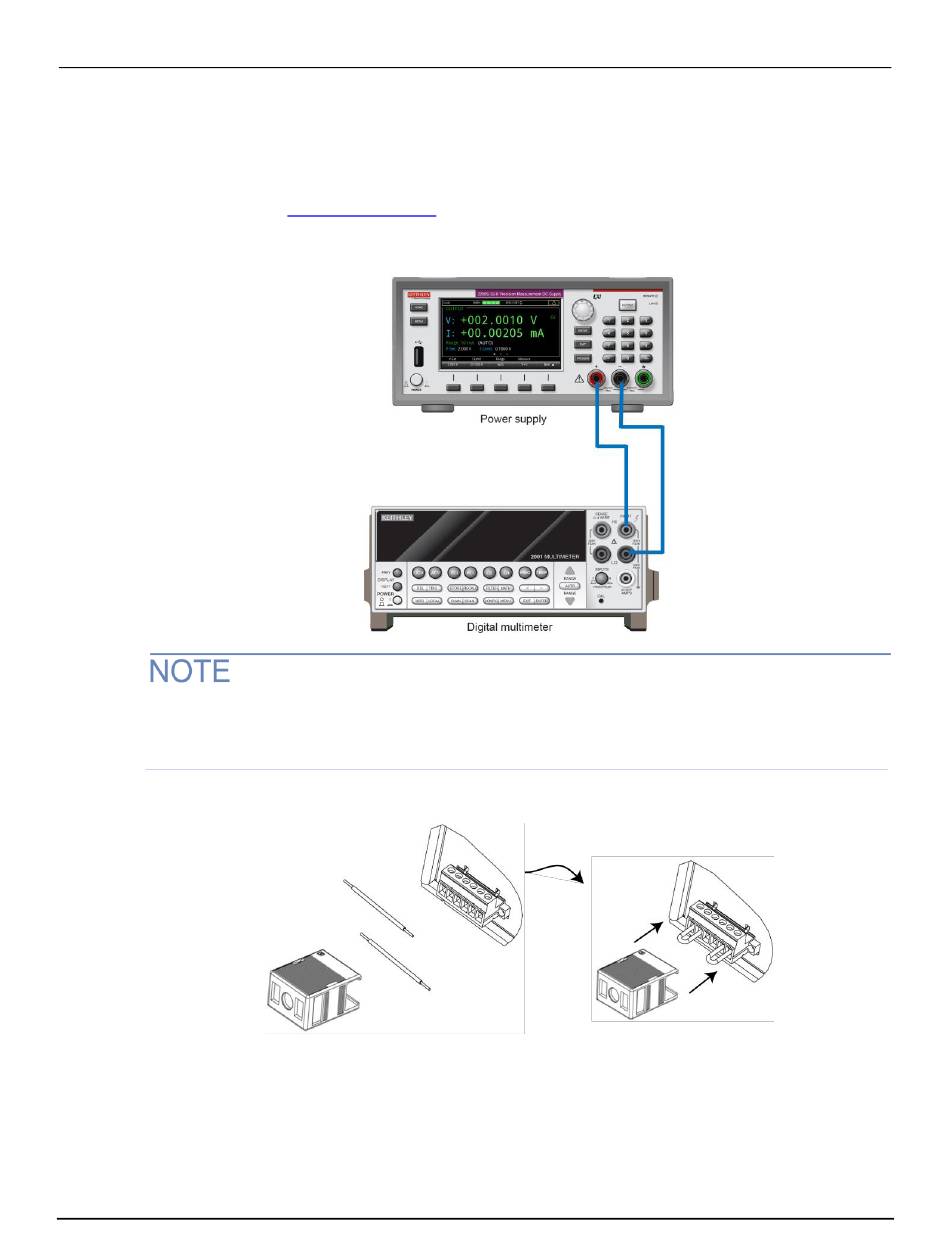

Figure 150: Voltage calibration connections
When you are using a binding post on the front panel to make a calibration connection, insert the
jumper wires to short the output terminals and sense terminals on the rear panel. For details, see the
following figure.
Figure 151: Install the output mating connector for 4-wire operation
077114601 / March 2019
C-7
