Section 3: Functions and features
The current and voltage values in the buffer are different for the measurement function.
Measurement function
Concurrent (V + I)
Voltage (V)
Current (I)
For the battery test and battery simulation functions, the values of ESR and A-H are also saved in the
buffer.
To use the front panel to view the contents of the reading buffer:
1. Press the MENU key.
2. Under Views, select Sheet.
3. Select the button next to Data Sheet. The data is displayed.
4. If you want to view the statistics, select the button next to Statistics. The Statistics screen is
displayed.
5. Press the button next to On. The statistics results are displayed below the data table. To
configure the statistics function, see
page 3-18).
6. Press the HOME key to return to the home screen.

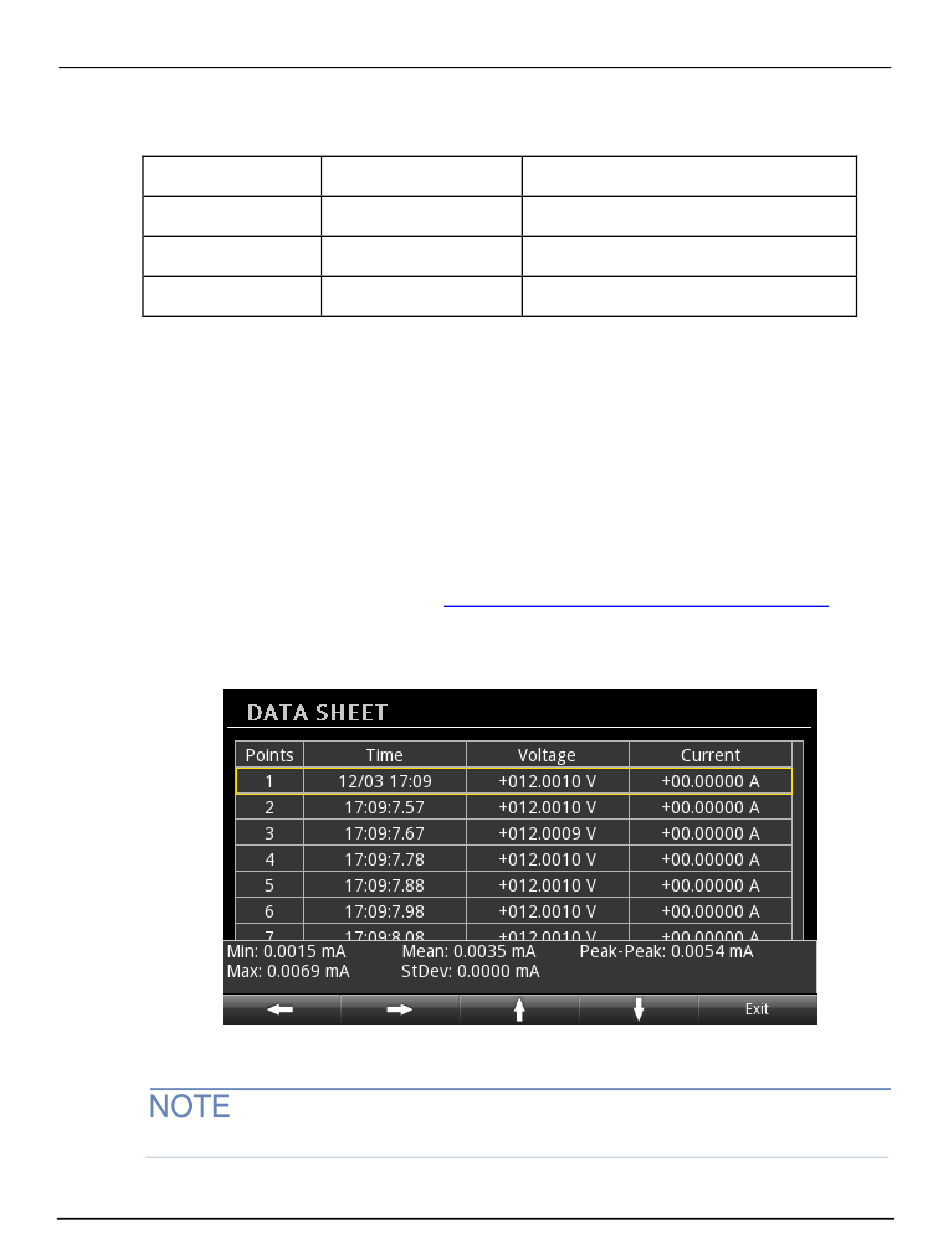

Go to home screen 3. Press the Data Sheet soft key to view the buffer.
3-16
Model 2281S-20-6 DC Power Supply and Battery Simulator Reference Manual
Current
Measured value for each
current reading
Current setting value
Measured value for each
current reading
Configuring the statistics applied to data in the buffer
Figure 76: Data sheet in power supply function
Voltage
Measured value for each voltage reading
Measured value for each voltage reading
Voltage setting value
(on
