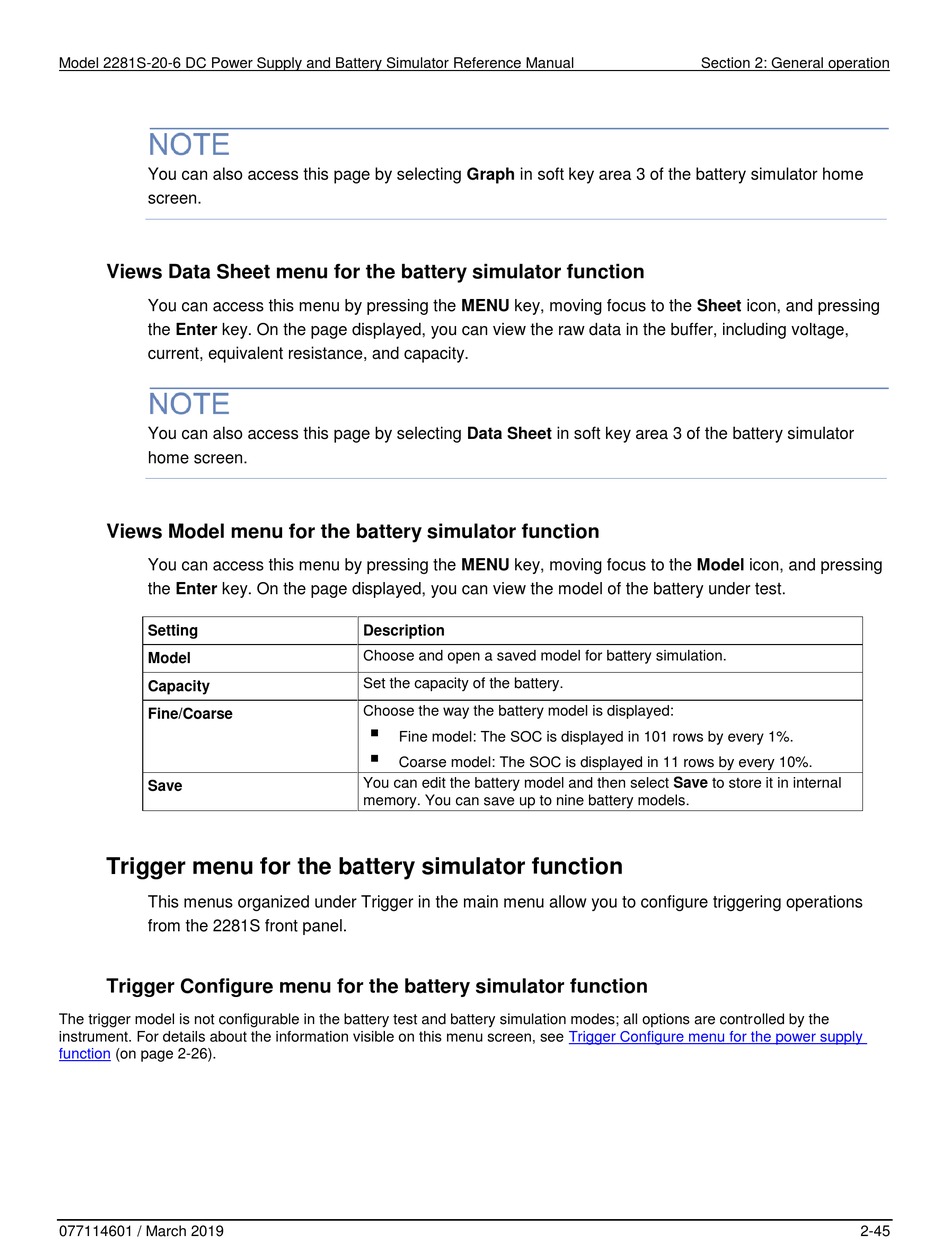

Model 2281S-20-6 DC Power Supply and Battery Simulator Reference Manual
You can also access this page by selecting Graph in soft key area 3 of the battery simulator home
screen.
Views Data Sheet menu for the battery simulator function
You can access this menu by pressing the MENU key, moving focus to the Sheet icon, and pressing
the Enter key. On the page displayed, you can view the raw data in the buffer, including voltage,
current, equivalent resistance, and capacity.
You can also access this page by selecting Data Sheet in soft key area 3 of the battery simulator
home screen.
Views Model menu for the battery simulator function
You can access this menu by pressing the MENU key, moving focus to the Model icon, and pressing
the Enter key. On the page displayed, you can view the model of the battery under test.
Setting
Model
Capacity
Fine/Coarse
Save
Trigger menu for the battery simulator function
This menus organized under Trigger in the main menu allow you to configure triggering operations
from the 2281S front panel.
Trigger Configure menu for the battery simulator function
The trigger model is not configurable in the battery test and battery simulation modes; all options are controlled by the
instrument. For details about the information visible on this menu screen, see
function (on page 2-26).
077114601 / March 2019
Description
Choose and open a saved model for battery simulation.
Set the capacity of the battery.
Choose the way the battery model is displayed:

Fine model: The SOC is displayed in 101 rows by every 1%.

Coarse model: The SOC is displayed in 11 rows by every 10%.
You can edit the battery model and then select Save to store it in internal
memory. You can save up to nine battery models.
Section 2: General operation
Trigger Configure menu for the power supply
2-45
