Model 2281S-20-6 DC Power Supply and Battery Simulator Reference Manual Section 2: General operation

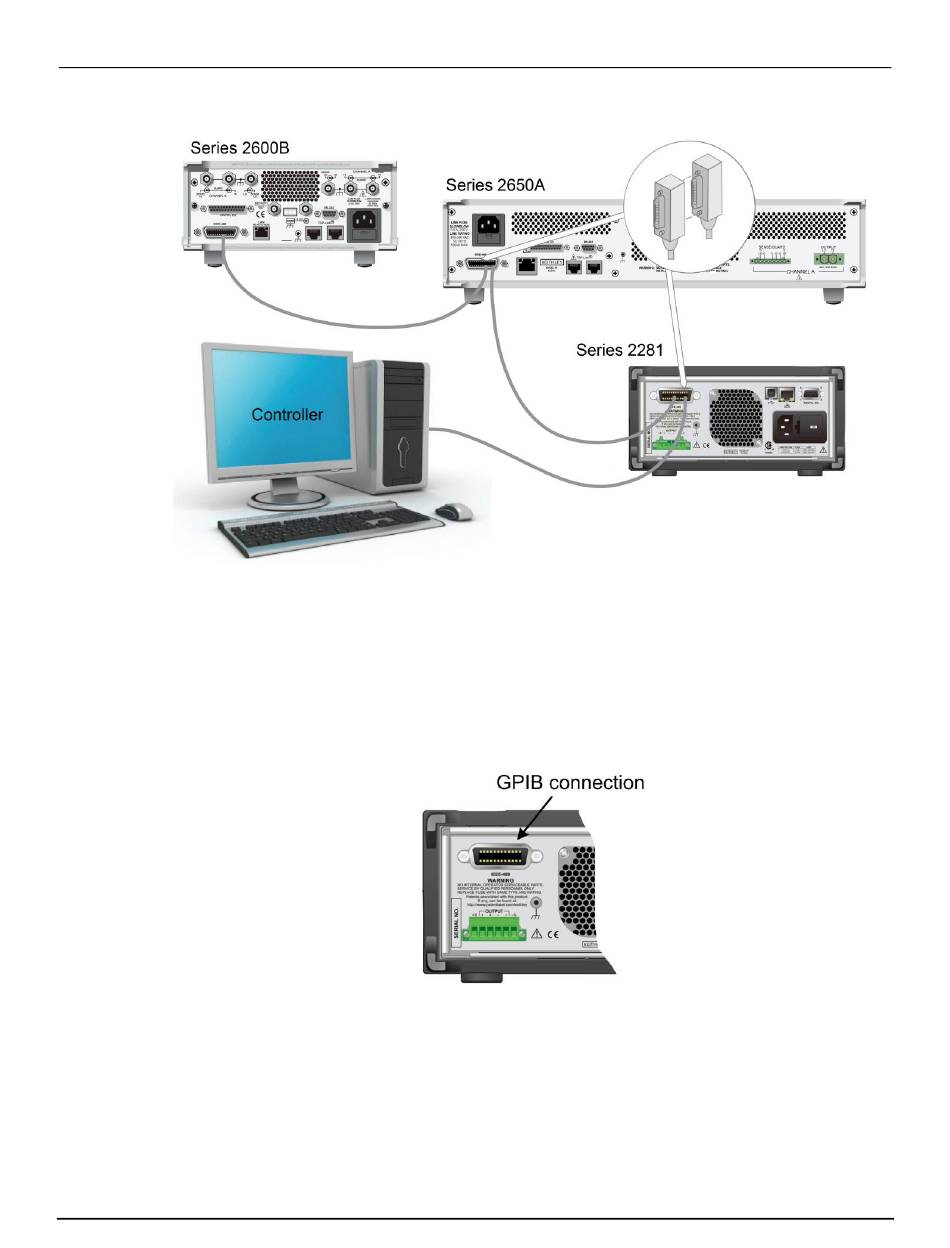

Figure 44: IEEE-488 connection to 2281S
.
To connect the instrument to GPIB:
1. Align the cable connector with the connector on the 2281S rear panel. The location of the
connector is shown in the following figure.
2. Attach the connector. Tighten the screws securely but do not overtighten them.
Figure 45: GPIB interface on rear panel
3. Connect any additional connectors from other instruments, as required for your application.
4. Make sure the other end of the cable is properly connected to the controller.
077114601 / March 2019 2-71
