Model 2281S-20-6 DC Power Supply and Battery Simulator Reference Manual
Soft key area 2 for the power supply function
Soft key area 2 for the power supply function contains the settings shown in the following figure and
explained in the table.
Setting
Protect
Resolution
Calculate
Acquire
Next
077114601 / March 2019

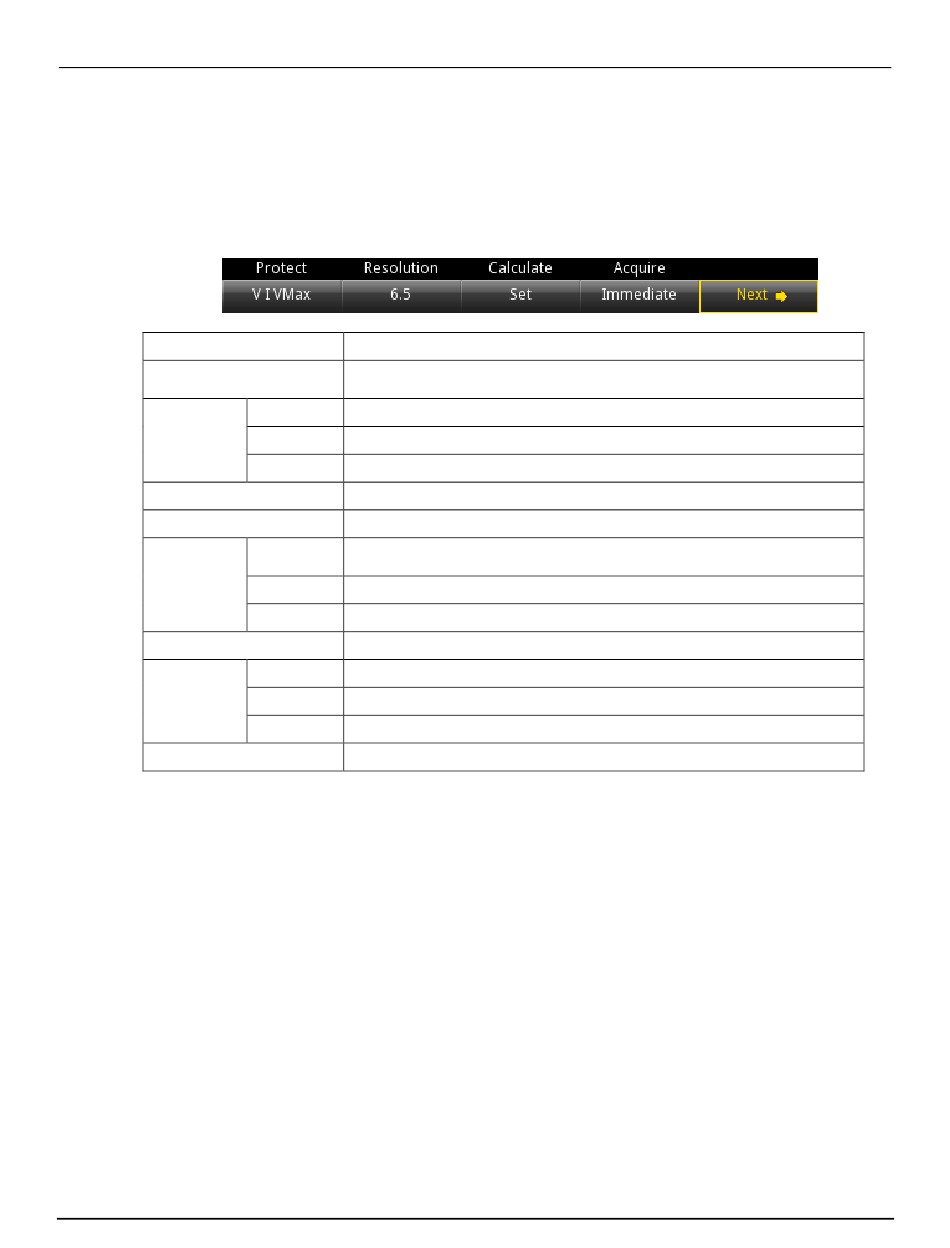

Figure 12: Soft key area 2 for power supply
Description
Configure the safety settings using the numerical keys, soft keys, and
navigation control.
Edit the voltage threshold for overvoltage protection.
OVP
Edit the current threshold for overcurrent protection.
OCP
Edit the maximum voltage setting value.
VMAX
Specify the measurement resolution for the selected measurement function.
Specify the calculate functions including relative, math, and filter.
Enable or disable the relative function, and set the current value as the
Rel
reference value.
Enable or disable the math function.
Math
Enable or disable the filter function.
Filter
Configure the source trigger mode.
Set the source to immediate triggering.
Immediate
Set the source to external triggering.
External
Set the source to manual triggering.
Manual
Switch to home screen 3.
Section 2: General operation
2-11
