Section 4: Measurement optimization Model 2281S-20-6 DC Power Supply and Battery Simulator Reference Manual
If any of these operations are set, the value that is displayed is the measurement reading with these
operations applied. For example, if you made a measurement and had a relative offset specified, the
measured value would have the relative offset applied. For details, refer to the following data flow
figure.

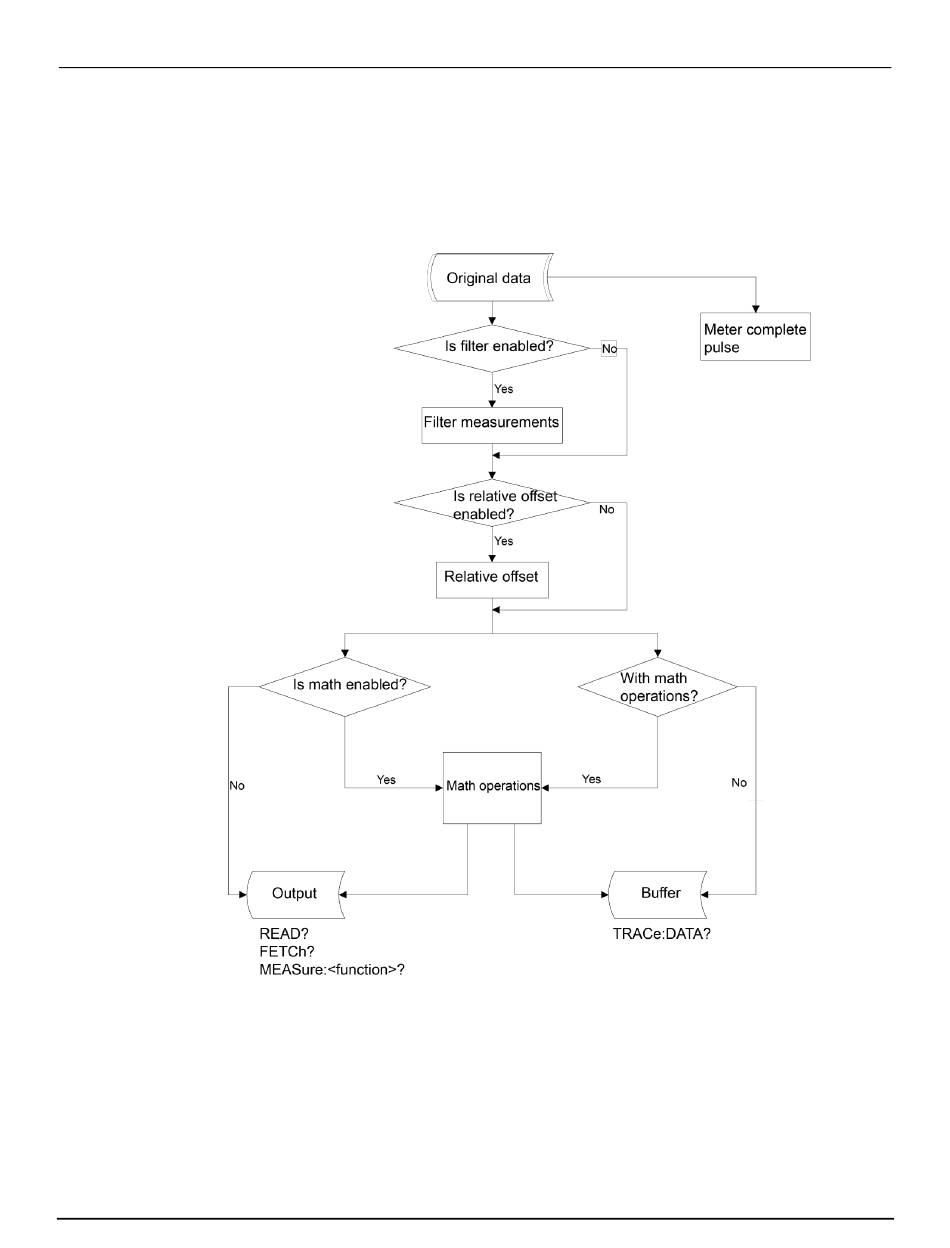

Figure 110: Data flow
