Model 2281S-20-6 DC Power Supply and Battery Simulator Reference Manual

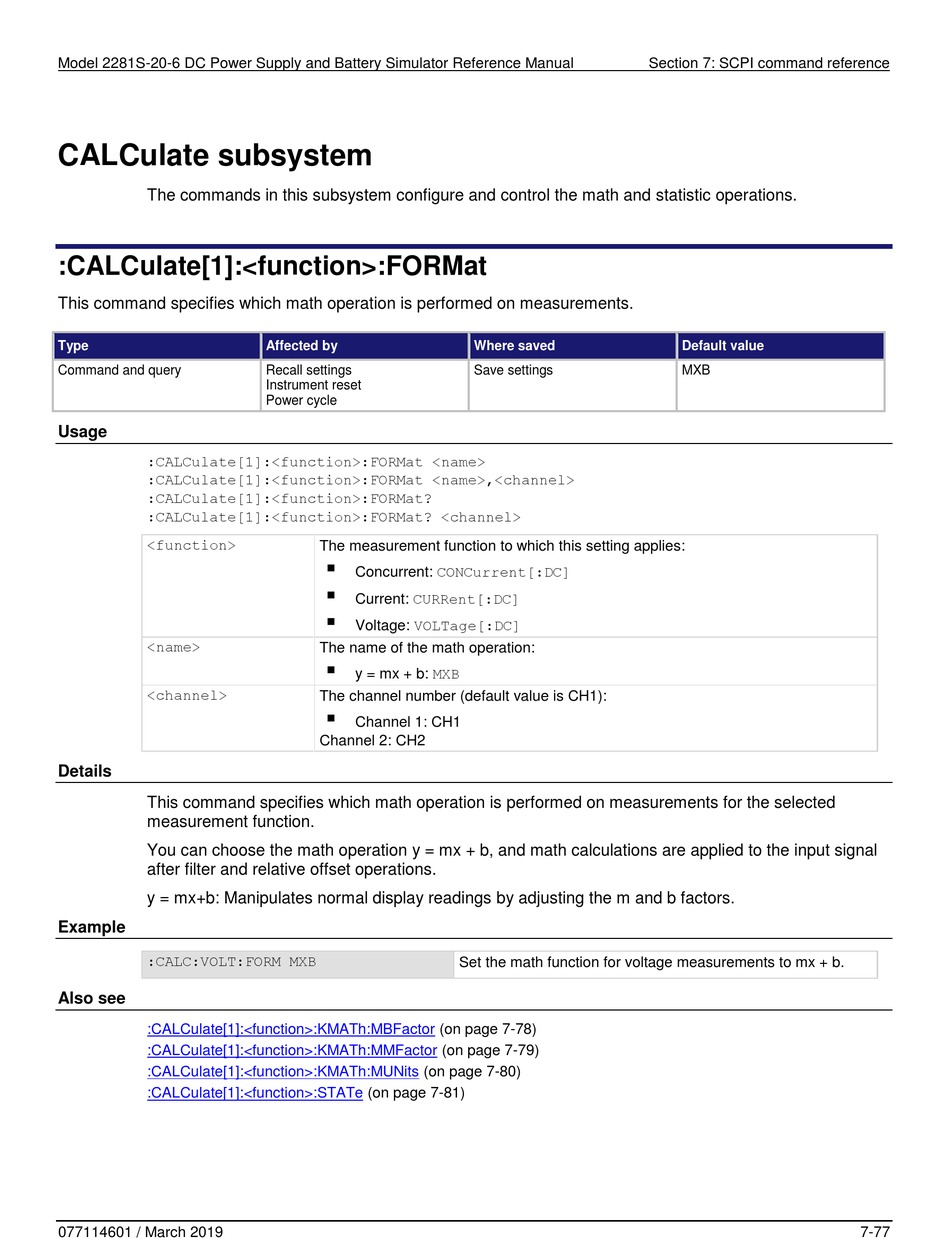

CALCulate subsystem

The commands in this subsystem configure and control the math and statistic operations.
:CALCulate[1]:<function>:FORMat
This command specifies which math operation is performed on measurements.
Type
Command and query
Usage
:CALCulate[1]:<function>:FORMat <name>
:CALCulate[1]:<function>:FORMat <name>,<channel>
:CALCulate[1]:<function>:FORMat?
:CALCulate[1]:<function>:FORMat? <channel>
<function>
<name>
<channel>
Details
This command specifies which math operation is performed on measurements for the selected
measurement function.
You can choose the math operation y = mx + b, and math calculations are applied to the input signal
after filter and relative offset operations.
y = mx+b: Manipulates normal display readings by adjusting the m and b factors.
Example
:CALC:VOLT:FORM MXB
Also see
:CALCulate[1]:<function>:KMATh:MBFactor
:CALCulate[1]:<function>:KMATh:MMFactor
:CALCulate[1]:<function>:KMATh:MUNits
:CALCulate[1]:<function>:STATe
077114601 / March 2019
Affected by
Recall settings
Instrument reset
Power cycle
The measurement function to which this setting applies:

Concurrent: CONCurrent[:DC]

Current: CURRent[:DC]

Voltage: VOLTage[:DC]
The name of the math operation:

y = mx + b: MXB
The channel number (default value is CH1):

Channel 1: CH1
Channel 2: CH2
(on page 7-78)
(on page 7-79)
(on page 7-80)
(on page 7-81)
Where saved
Save settings
Set the math function for voltage measurements to mx + b.
Section 7: SCPI command reference
Default value
MXB
7-77
