Section 3: Functions and features
Battery simulation
The 2281S can simulate a real battery to test a device in a certain state of the battery for better test
efficiency. The following topics explain the settings and measurement procedure.
Battery simulation settings
If you are in the battery simulator function, press Menu. Under Battery, select Settings. The following
screen is displayed.
3-70
Model 2281S-20-6 DC Power Supply and Battery Simulator Reference Manual

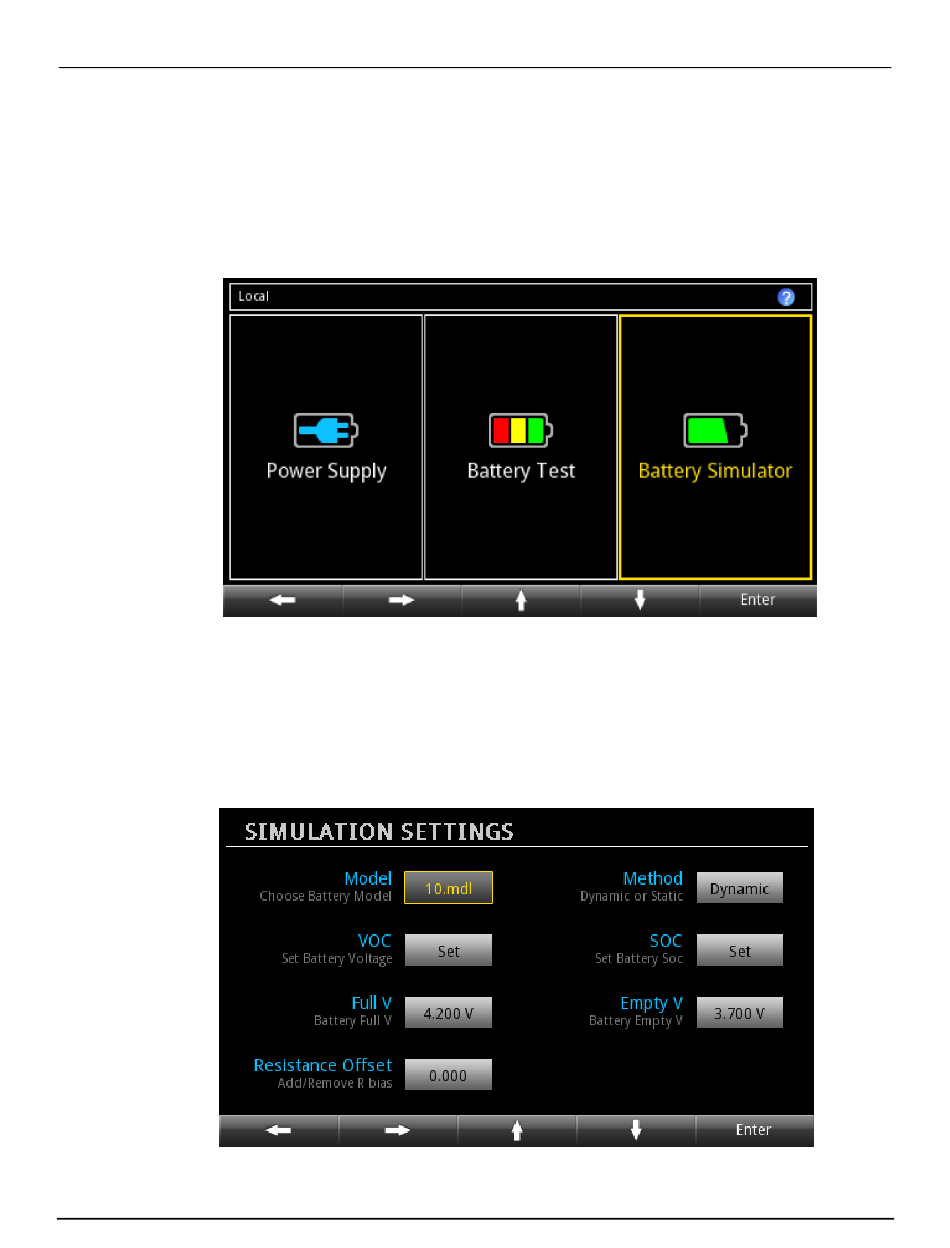

Figure 106: The 2281S battery simulation function
Figure 107: Simulation settings
077114601 / March 2019
