38 Installing and Maintaining the Server
Installing the Server

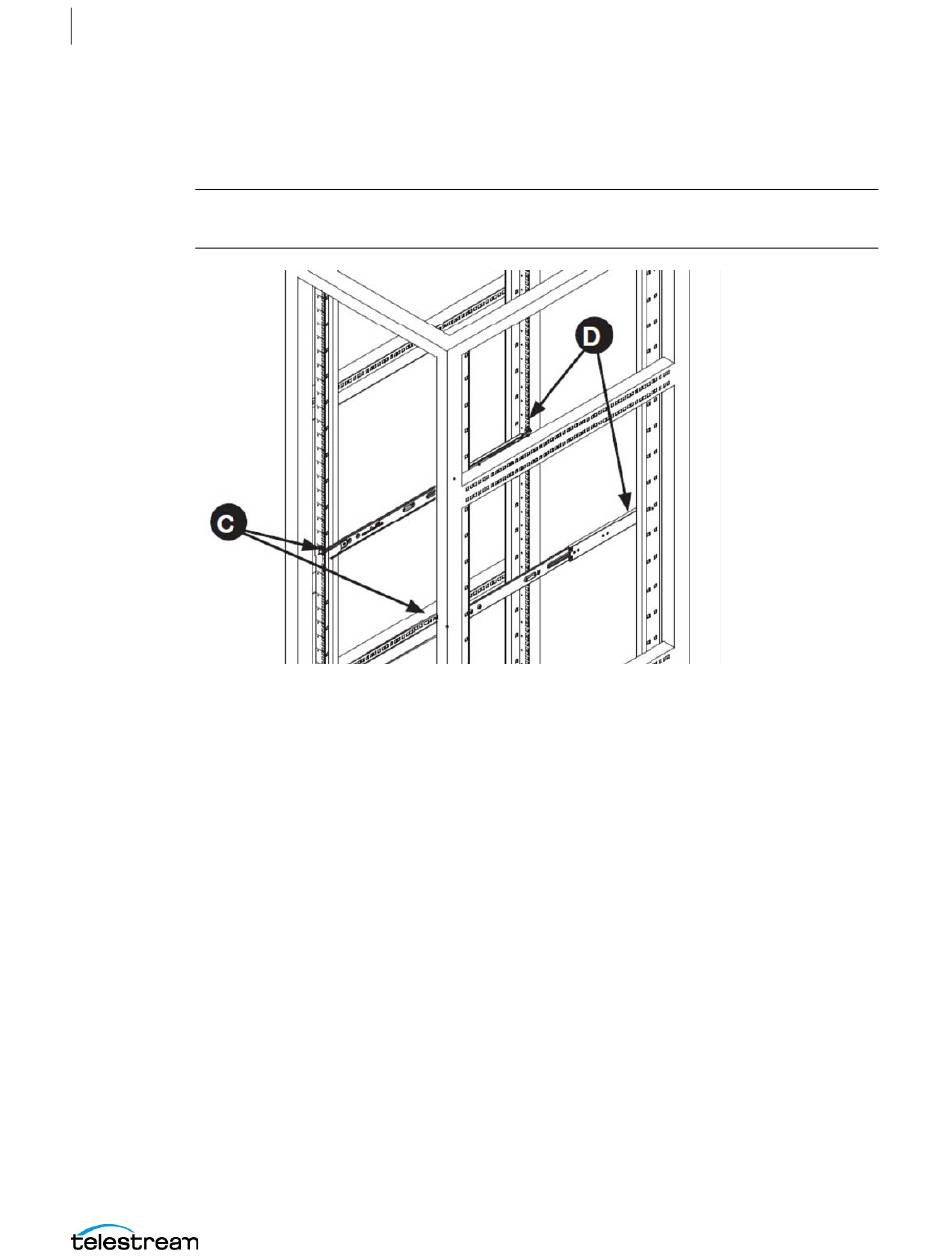

Extend the rear of the rail to align its square pegs with the square holes on the rear of
the rack (D). Push the rail into the rack until the quick release bracket snaps into place,
securing the rail to the rack.
CAUTION: To prevent the server chassis from falling and becoming damaged, be sure
the rails are solidly in position and ready to support the full weight of the chassis.

Installing the Server in the Rack

When selecting a position in a rack to place the server, be sure to allow a minimum of
30 inches of clearance at the back of the server for sufficient cooling airflow and
servicing.
To install the server, follow this procedure:
Slide the inner rail extensions forward into the front of the outer rails.
Support the chassis and align the back of the chassis with the front of the rails.
Push the chassis backward, sliding it into the rack rails, until the chassis clicks into the
locked position.
