When all connections are complete between the RS-422 Interface Box, the VTR, and the
Lightspeed Live server, the VTR connection will be initialized and CH1 (Channel 1) of
the RS-422 Interface Box automatically synchronizes with SDI Input 1 on the
Lightspeed Live server, CH2 with SDI 2, CH3 with SDI 3, and CH4 with SDI 4.

Creating the Tape Capture Workflow

To enable capture of data from the VTR, configuration settings must be made in both
the Vantage Management Console and the Vantage Workflow Designer > Tape action.
See Configuring Settings for Your
Activating the Tape Action Workflow

RS-422 Connector Pin Assignments

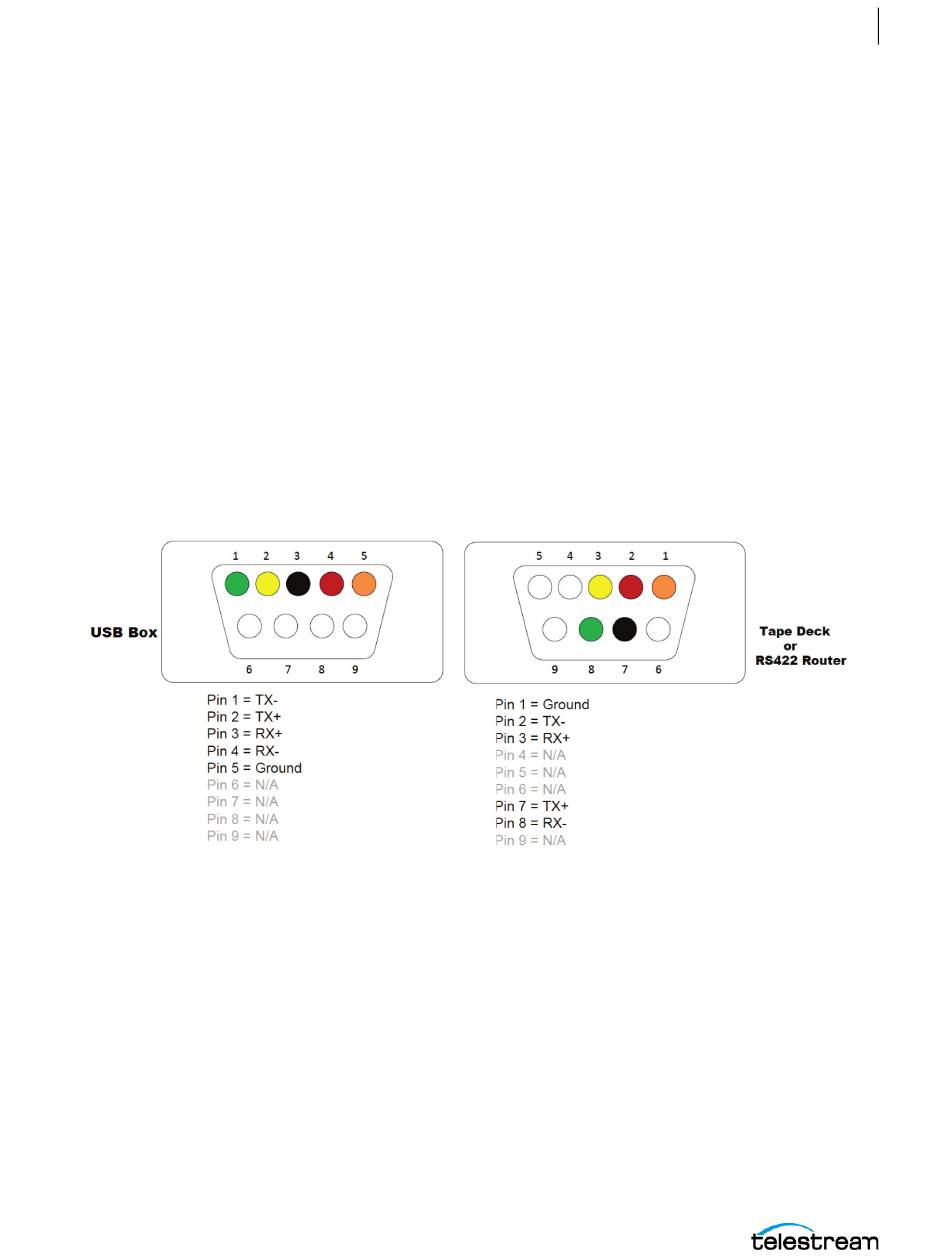

Use the pin assignment diagram below if you want to create custom RS-422 cables for
your Lightspeed Live Capture's USB to RS-422 Interface Box.
Lightspeed Live Capture User Guide
RS-422 Interface Kit Assembly and Installation
Facility, Configuring Ingest
chapter for detailed instructions.
Appendix C: RS-422 VTR Interface
Sources, and Creating and
325
