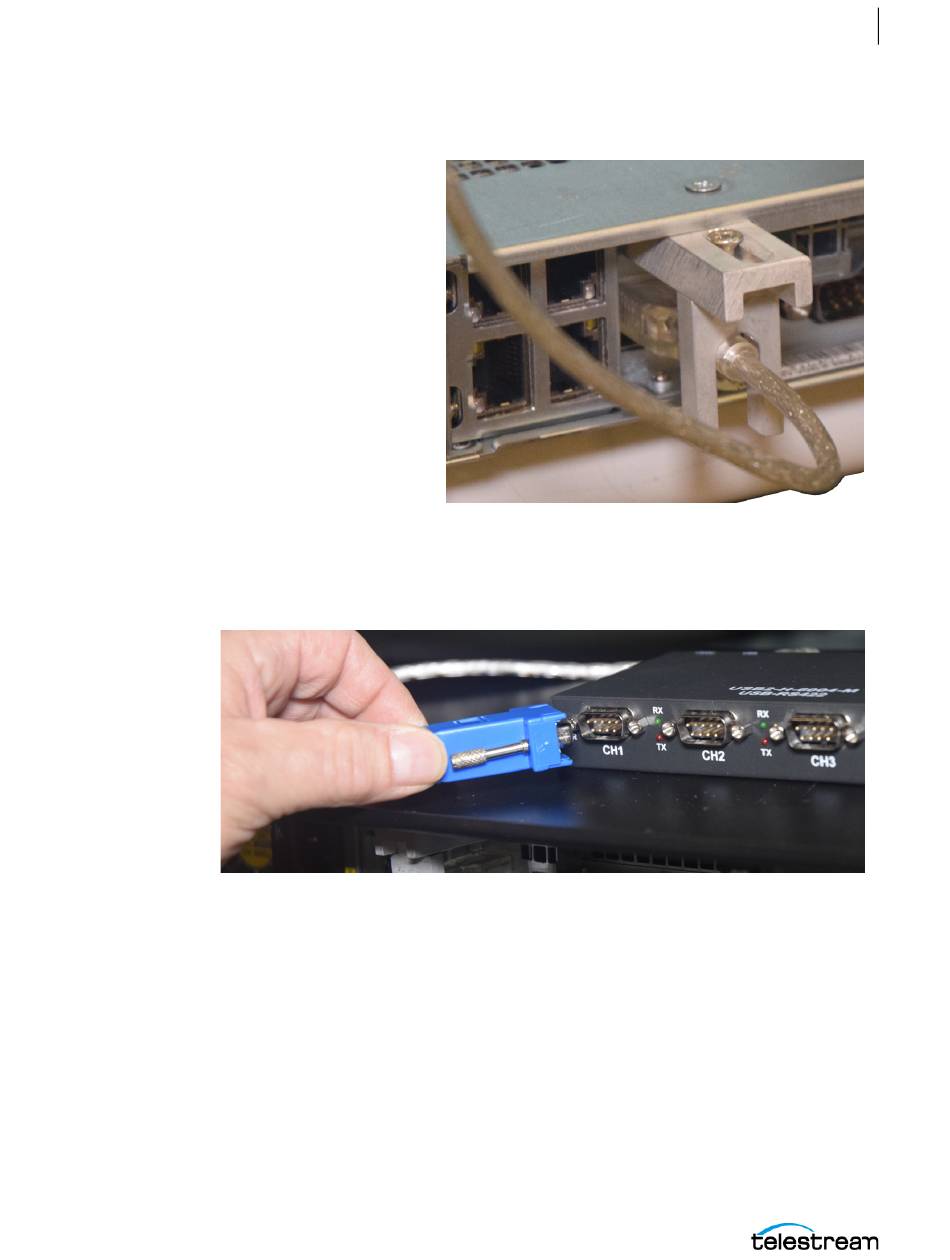

8. Slide the USB cable retaining-arm forward to secure the cable, then tighten the
retaining arm screw.
9. To prepare for VTR connection, attach a Female DB9-to-RJ45 blue adapter to the
Channel 1 (CH1) RS-422 serial port on the interface box. Attach additional Female
DB9-to-RJ45 blue adapters to other channels if you will connect more than one
VTR.
Proceed to the next step of
Lightspeed Live Capture User Guide
Connecting a VTR to the Lightspeed Live
Appendix C: RS-422 VTR Interface
RS-422 Interface Kit Assembly and Installation
Server.
