34 Introducing Lightspeed Live Stream and Capture
Lightspeed Live Server Hardware Specifications and Components

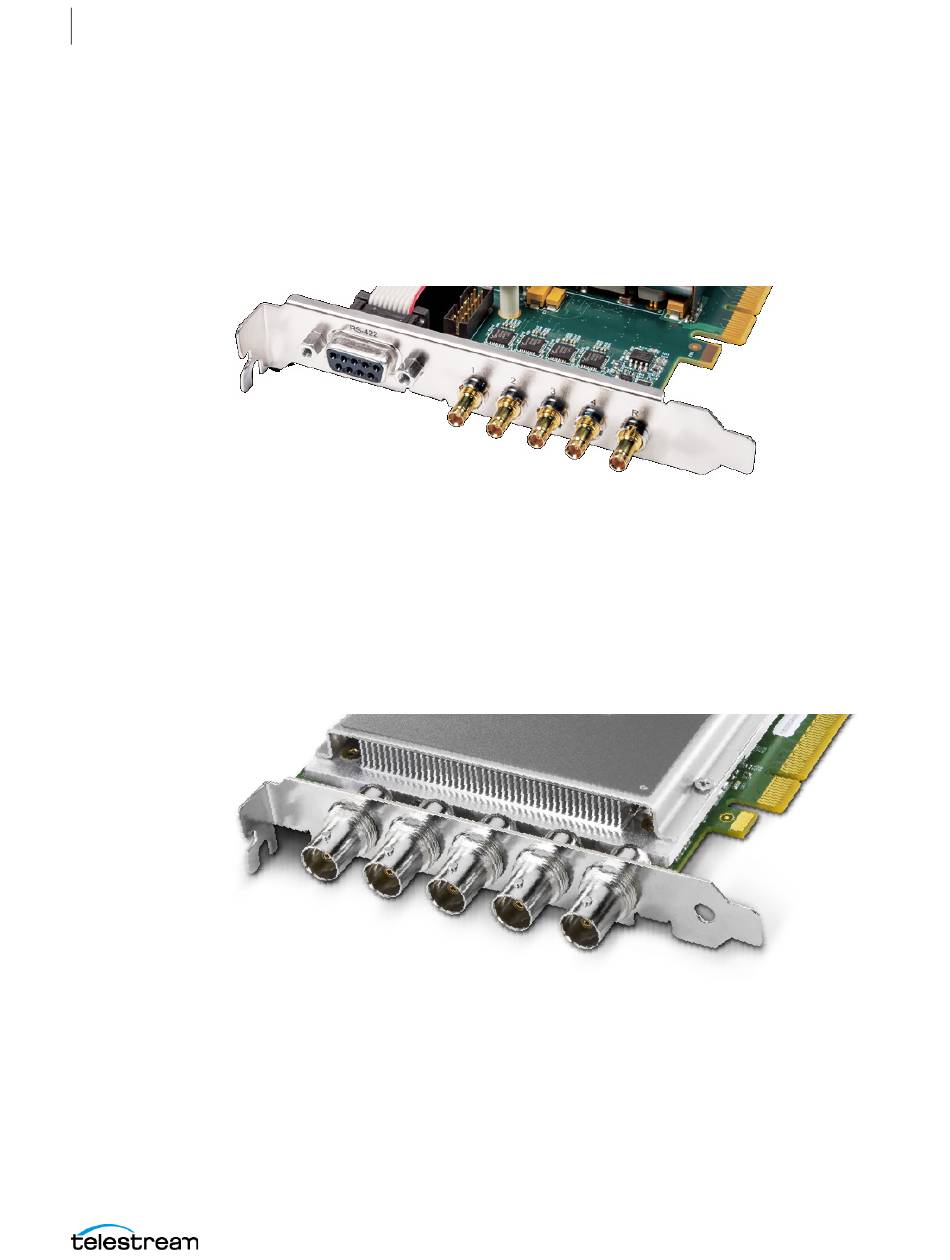

Standard SDI Input Card
The standard SDI input card contains 5 miniature BNC video input connectors with 5
adapter cables to convert to full-size BNC connectors:
•
•
Optional HEVC SDI Input Card (Supported by Live Stream only)
The HEVC card replaces the standard SDI input card and contains 5 full-sized BNC video
input connectors:
•
•
SDI Inputs 1-4: SD/HD/3G x 1080/4K video formats; audio 16-Channel, 24-bit SDI
embedded, 48 kHz synchronous
Input R: LTC timecode input
SDI Inputs: SD/HD/3G x 1080/4K video formats; audio 16-Channel, 24-bit SDI
embedded, 48 kHz synchronous
LTC Timecode Input: The BNC connector on the bottom of the board, on the far
right in the picture below:
