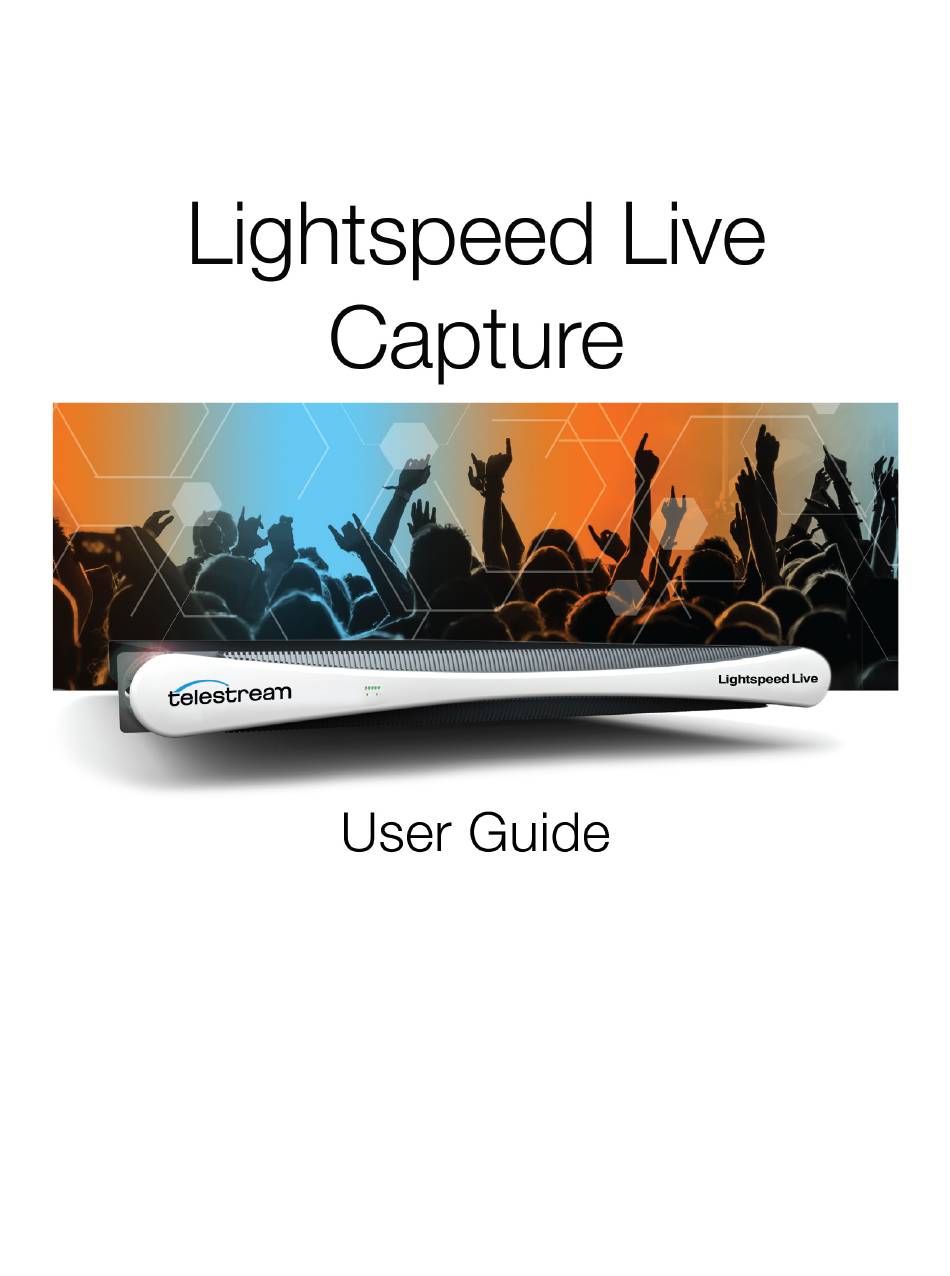

Page 1 Lightspeed Live Capture Guide Live Capture 3.0 with ComponentPac 7.2 June 2019 277130...
Page 2: Copyrights And Trademark Notices
Copyrights and Trademark Notices Copyrights and Trademark Notices Copyright © 2019 Telestream, LLC. All rights reserved worldwide. No part of this publication may be reproduced, transmitted, transcribed, altered, or translated into any languages without the written permission of Telestream. Information and specifications in this document are subject to change without notice and do not represent a commitment on the part of Telestream.
Page 3 Telerik. RadControls for ASP.NET AJAX copyright Telerik All rights reserved. VoiceAge. This product is manufactured by Telestream under license from VoiceAge Corporation. x264 LLC. The product is manufactured by Telestream under license from x264 LLC. Xceed. The Software is Copyright ©1994-2012 Xceed Software Inc., all rights reserved.
Page 4 ENGAGED IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM. Lightspeed Live Capture User Guide...
Page 5 Software Updates Except as may be provided in a separate agreement between Telestream and You, if any, Telestream is under no obligation to maintain or support the Software and Telestream has no obligation to furnish you with any further assistance, technical support, documentation, software, update, upgrades, or information of any nature or kind.
Page 6 Telestream, LLC 848 Gold Flat Road Nevada City, CA 95959 USA You can call Telestream during U. S. business hours via telephone at (530) 470-1300. Regulatory Compliance Electromagnetic Emissions: FCC Class A, EN 55022 Class A, EN 61000-3-2/-3-3, CISPR 22...
Page 7: Table Of Contents
Using Live Stream and Live Capture Concurrently Shared Resource Allocation Certain Stream Sources are Not Supported for Capture Use Lightspeed Live Capture Web API Reference Lightspeed Live Application Program Interfaces Lightspeed Live Stream Web API Lightspeed Live Capture Web API...
Page 8 Rebuilding the Lightspeed Live Storage RAID Replacing Power Supplies Replacing the Power Supply Monitoring Lightspeed Live via SNMP Enabling SNMP Monitoring Configuring the Lightspeed Live Capture Server and Apps Changing a Source Name Managing and Configuring Sources Sources Overview Source and Channel Indicator Icons...
Page 9 Contents Previewing Sources Finding Workflows Installing the Live Capture & Tape Capture Web Apps Installation on Standard Servers Clear Browsing Data after Updating Renaming or Reconfiguring Servers Array Licensing for Multiple Server Live Capture Systems Vantage and Live Capture Solutions New Vantage Systems Containing Live Capture Adding Live Capture to an Existing Vantage Domain Array Important Notes on Configuring Non-Capture Workflow Actions on Multiple Server...
Page 10 Using the Live Capture Web Application Live Capture Classic Web Application Prerequisites to Using Live Capture Accessing the Lightspeed Live Capture Web App Creating and Using External Links Create a Separate Account for Each User Multiple User Access to the Capture or Tape Web Apps...
Page 11 Contents Triggers Determine the Method of Channel Control DAI Trigger Manual Trigger Recurring Segment Trigger Schedule Trigger Web Service Trigger Recorded File Location and Format Selecting Output Encoders and Format Deleting Captured Files Using the Vantage Job Status Views Opening Vantage Job Status Views The Vantage Job Status Views Web Application Configuring Job Status Views Information Using the Tape Capture Web Application...
Page 12 Contents Calculating Live Capture Resources Lightspeed Live Capture Resource Calculator Browser Operation is Not Included in Usage Calculations Determining the Time-Shift Buffer Duration Standard Definition (SD) Codecs High Definition (HD) Codecs UHD/4K Codecs Calculating your Resource Usage Capacity Resource Use Factor (RUF) Charts...
Page 13 Contents JPEG2000 Lossless (Comprimato) JPEG2000 Lossy (Comprimato) Panasonic AVC-Intra Panasonic AVC-Ultra Sony XAVC Sony XDCAM Uncompressed x264 Time Code Burn-in Filter Audio Stream Details Codec (PCM) General MPEG2-TS Output MPEG-2 TS Format Summary Video Audio Container Settings Video Stream Details Codec HEVC H/W MPEG-2...
Page 14 Contents Panasonic AVC-Intra Sony XDCAM Uncompressed x264 x265 Time Code Burn-in Filter Audio Stream Details Codec (PCM) Channel Configuration QuickTime 'Open' Output QuickTime 'Open' Format Summary Video Audio Container Settings General Important Information about Default Duration Aspect Ratio Mode Clean Aperture Video Stream Details Codec Apple ProRes...
Page 15 Contents MPEG-2 Panasonic AVC-Intra Panasonic AVC-Ultra Sony XAVC Sony XDCAM Uncompressed x264 x265 Time Code Burn-in Filter Audio Stream Details Codec (PCM) Proxy TIFO Output TIFO Format Summary Video Audio Container Settings General Aspect Ratio Mode Video Stream Details Codec DNxHD Apple ProRes Time Code Burn-in Filter...
Page 16 Contents MXF Applicable Standards Output Settings Container Settings General Aspect Ratio Mode Video Stream Details Codec Avid DNxHD DVCPRO HD JPEG2000 Lossless (Comprimato) JPEG2000 Lossy (Comprimato) Panasonic AVC-Intra Panasonic AVC-Ultra Sony XAVC Sony XDCAM Uncompressed x264 Time Code Burn-in Filter Audio Stream Details Codec (PCM) MPEG2-TS Output...
Page 17 Contents Apple ProRes Avid DNxHD Avid DNxHR DVCPRO HD HEVC HEVC (H/W) Panasonic AVC-Intra Sony XDCAM Uncompressed (10-bit) x264 x265 Time Code Burn-in Filter Audio Stream Details Codec General Channel Map TIFO Output TIFO Format Summary Video Audio Container Settings General Panel Aspect Ratio Mode Video Stream Details...
Page 18 Contents Time Code Burn-in Filter Audio Stream Details Codec General Channel Map Proxy TIFO Output TIFO Format Summary Video Audio Container Settings General Aspect Ratio Mode Video Stream Details Codec Avid DNxHD Apple ProRes Time Code Burn-in Filter Audio Stream Details Codec (PCM) Proxy MP4 Output Format Summary...
Page 19 Contents Avid DNxHD Avid DNxHR DV/DVCPro DVCPRO HD HEVC HEVC (H/W) JPEG2000 LossLess (Comprimato) JPEG2000 Lossy (Comprimato) MPEG-2 Panasonic AVC-Intra Panasonic AVC-Ultra Sony XDCAM Uncompressed (10-bit) x264 x265/HEVC XAVC Primary Output - Audio Codec Secondary Output - Video Codecs Secondary Output - Audio Codecs Vantage Actions Live Actions Capture Action...
Page 20 Contents Receive Action Synchronize Action Communicate Actions Automate Action Message Action Notify Action VidChecker Action Appendix C: RS-422 VTR Interface RS-422 Interface Kit Assembly and Installation What the RS-422 VTR Interface Kit Includes User Supplied Cable Installing the USB Cable Retainer on the Lightspeed Live Server Assembling &...
Page 21 Contents When a Single Event is Queued for Capture When Multiple Events are Queued for Capture Recorded File Location and Format...
Page 22 Contents...
Page 23 Introducing Lightspeed Live Stream and Capture This chapter presents an overview of Telestream’s Lightspeed Live Stream and Lightspeed Live Capture and the Lightspeed Live server platform. ■ Overview ■ Lightspeed Live Server Platform ■ Lightspeed Live Stream ■ Lightspeed Live Capture ■...
Page 24: Introducing Lightspeed Live Stream And Capture Overview
Introducing Lightspeed Live Stream and Capture Overview Overview Lightspeed Live Stream and Lightspeed Live Capture are two separate applications that run on a Lightspeed Live server to deliver real-time, enterprise-class live streaming for media and entertainment companies, corporations, government agencies, and educational facilities.
Page 25: Lightspeed Live Stream
Content Delivery Networks (CDN). Lightspeed Live Stream can be deployed as a stand-alone solution for live multi-screen services or installed on the same server as Lightspeed Live Capture, where they share the SDI and network- based sources.
Page 26: Using Live Stream And Live Capture Concurrently
Introducing Lightspeed Live Stream and Capture Using Live Stream and Live Capture Concurrently Using Live Stream and Live Capture Concurrently A Lightspeed Live Server can host Lightspeed Live Capture or Lightspeed Live Stream independently, or host both applications simultaneously, sharing SDI and network- based sources.
Page 27: Lightspeed Live Capture Web Api Reference
About > Web API Reference. Lightspeed Live Capture Web API The Lightspeed Live Capture Web API enables recording of live streaming media in a Vantage workflow to be controlled manually via the HTTP web service. The Capture web API is implemented in the Lightspeed Live Capture web service.
Page 28: Lightspeed Live Server Hardware Specifications And Components

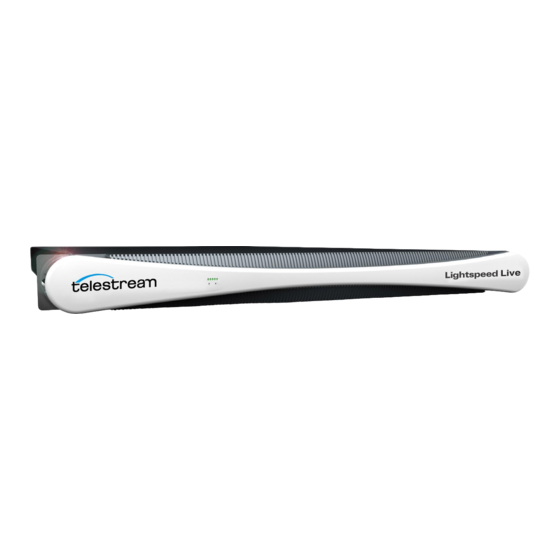

The Lightspeed Live server is a high-speed, high-end Windows server configured specially for streaming and capturing live video using a pre-installed SDI input card and hosting Telestream Vantage with the Lightspeed Live Stream and Lightspeed Live Capture web applications or independently for high-performance media processing.
Page 29: System Power
Fan speed is controlled by the IPMI system management software to respond to fluctuations in system temperature. Dual air shrouds direct air flow to the dual CPUs and components that require cooling. The power supply module also includes a cooling fan. Lightspeed Live Capture User Guide...
Page 30: Sdi Input Cards
Notes: All 16 channels of audio for UHD/4K are provided on SDI Input #1. Sources in the YCbCr 444 or RGB 444 color space are not supported. Only the YUV 422 color space is supported. Lightspeed Live Capture User Guide...
Page 31: Gpu
Telestream products be used in accordance with the following product policy. It is critical that our product policy be adhered to when using add-in cards: • Add-in card(s) are to be installed by Telestream, or an authorized agent, at or before commissioning. •...
Page 32: Front Panel
Under normal conditions, you should properly close client programs and shut down the domain and OS before cycling power. USB Ports Two USB 3.0 ports for general use are located below the LEDs and buttons. Lightspeed Live Capture User Guide...
Page 33: Rear Panel
IPMI port SDI Inputs Ethernet LAN ports (dedicated) Additional PCI cards can be optionally installed by Telestream in the PCI expansion slots. Video Input Connections The Lightspeed Live server includes an installed standard SDI input card (included) or an optional HEVC SDI input card in the lower right PCI slot. For a complete list of video...
Page 34 SDI Inputs: SD/HD/3G x 1080/4K video formats; audio 16-Channel, 24-bit SDI embedded, 48 kHz synchronous • LTC Timecode Input: The BNC connector on the bottom of the board, on the far right in the picture below: Lightspeed Live Capture User Guide...
Page 35: Installing And Maintaining The Server
Installing and Maintaining the Server This chapter explains how to install the Lightspeed Live server into an equipment rack and configure it for operation. ■ Installing the Server ■ Making Connections ■ Managing the Operating System ■ Maintaining the Lightspeed Server ■...
Page 36: Installing The Server
USB Cable Retainer on the back of the Lightspeed Live server before installing the server in the rack. For instructions, see Installing the USB Cable Retainer on the Lightspeed Live Server in Appendix C. Lightspeed Live Capture User Guide...
Page 37: Rack Installation
(C). Push the rail into the rack until the quick release bracket snaps into place, securing the rail to the rack. Lightspeed Live Capture User Guide...
Page 38: Installing The Server In The Rack
Slide the inner rail extensions forward into the front of the outer rails. Support the chassis and align the back of the chassis with the front of the rails. Push the chassis backward, sliding it into the rack rails, until the chassis clicks into the locked position. Lightspeed Live Capture User Guide...
Page 39 If you need to remove the server from the rack, press the outer rail latch shown in the figure to release the chassis. Slide the chassis forward off the outer rails and out of the chassis. Lightspeed Live Capture User Guide...
Page 40: Making Connections
1 PCI half height x8 GPU Card expansion slot for Telestream approved SDI input Card cards only AC Power Connectors 2 USB 4 mini-BNC Unused 4 Onboard 10Gb IPMI port SDI Inputs Ethernet LAN ports (dedicated) Lightspeed Live Capture User Guide...
Page 41: Power Requirements And Connections
Failure to do so could present a severe electric shock hazard that could result in injury or death. CAUTION: Telestream recommends connecting computer equipment to AC power through an uninterruptible power supply (UPS) with surge protection. Fluctuations in commercial supply voltage can damage unprotected electronic equipment.
Page 42: Installing The Optional Rs422 Vtr Interface Kit
WARNING: This unit has two power supply connections. Both connections must be removed to completely de-energize the unit. Installing the Optional RS422 VTR Interface Kit For complete instructions on installing the RS422 VTR Interface Kit, see Appendix C: RS- 422 VTR Interface. Lightspeed Live Capture User Guide...
Page 43: Managing The Operating System
Windows Firewall The Lightspeed Live Capture web application uses port 8083 and/or 8084, and Live Stream uses port 8089. If you use Windows Firewall, be sure those ports are open on the Lightspeed Live server and across your network.
Page 44: Maintaining The Lightspeed Server
Lightspeed Live server. The settings are supplied here in the event they have been changed and you need to restore them to factory original settings. (For details, consult your System Administrator or a Telestream Field Sales Engineer). 1. In Performance Options, set Windows Performance options: a.
Page 45 Maintaining the Lightspeed Server c. Select the Advanced tab. d. Select Background services for Vantage transcoding nodes and SQL nodes. Select Programs for editorial systems and Vantage client applications that are not running other Vantage services. Lightspeed Live Capture User Guide...
Page 46 Select Change advanced power settings, and set all critical functions so that they are always ON (this usually means setting them to Never turn OFF). Click OK to save your changes and close the dialog. e. Click the Save Changes button on the Edit Plan Settings window. Lightspeed Live Capture User Guide...
Page 47: Backing Up The Lightspeed Live Server
Backing up the Lightspeed Live Server In order to protect your Lightspeed Live server from data loss, Telestream highly recommends that you create an image of the Operating System drive (C:\) drive immediately upon taking delivery of your server and that you perform periodic back- ups of all critical data on the server.
Page 48: Managing The Lightspeed Live Server
• Access virtual media • Set up server management groups • Update firmware For detailed instructions about using any of these system management features, consult the IPMI View User’s Guide. Lightspeed Live Capture User Guide...
Page 49: Installing New Or Replacement Hard Drives
8. Push the carrier handle closed flat against the front of the carrier to secure the carrier and drive in place. 9. Replace the front bezel on the chassis, and go to the next topic to rebuild the RAID. Lightspeed Live Capture User Guide...
Page 50: Rebuilding The Lightspeed Live Storage Raid
Replace with the same model. Replacement units can be ordered from Telestream. See Appendix A: Support in this guide for information about contacting Telestream Support to order parts. Replacing the Power Supply 1.
Page 51: Monitoring Lightspeed Live Via Snmp
<target name="logfile" xsi:type="File" archiveAboveSize="10000000" maxArchiveFiles="1000" fileName="${specialfolder:folder=ApplicationData}/Live/SNMPLogs/ LiveService-${date:format=yyyy-MM-dd}-log.txt" layout="${longdate} [${level}] ${message}" /> <target name="snmp" xsi:type="Snmp" port="163" /> </targets> <rules> <logger name="*" minlevel="Info" writeTo="logconsole" /> <logger name="*" minlevel="Warn" writeTo="logfile" /> <logger name="*" minlevel="Info" writeTo="snmp" /> </rules> </nlog> Lightspeed Live Capture User Guide...
Page 52 Installing and Maintaining the Server Monitoring Lightspeed Live via SNMP Lightspeed Live Capture User Guide...
Page 53: Configuring The Lightspeed Live Capture Server And Apps
Configuring the Lightspeed Live Capture Server and Apps This chapter explains how to configure and maintain the Lightspeed Live Capture software, including implementing updates. These topics will help you configure and maintain the server: ■ Changing a Source Name ■...
Page 54: Changing A Source Name
Configuring the Lightspeed Live Capture Server and Apps Changing a Source Name Changing a Source Name The default names for SDI ports has this form: “SDI Input [1 through n]”, where ‘n’ is 4 or 8 depending on which Lightspeed Live server you have. To rename a source, follow the procedures below and observe these renaming rules: •...
Page 55: Managing And Configuring Sources
Configuring the Lightspeed Live Capture Server and Apps Managing and Configuring Sources Managing and Configuring Sources Note: The process of managing and configuring input sources for Live Capture has changed in v3.0 (and later). All source management and configuration should now be done from the Source Manager page (see below for details).
Page 56: Sources Overview
Configuring the Lightspeed Live Capture Server and Apps Managing and Configuring Sources Sources Overview The Sources panel displays when you access the Source Manager web app by entering http://localhost:8090/ or http://[hostname]:8090/ in the your browser. The Sources panel is organized into two panels: The left panel is the Sources list, which displays the four built-in SDI sources, plus sources you’ve created.
Page 57: Source And Channel Indicator Icons
Configuring the Lightspeed Live Capture Server and Apps Managing and Configuring Sources • Source Menu Toolbar—top-right, above the Sources Preview Panel. – Editor Icon—Click the pencil icon to view or update the settings of the selected Source. Source configuration panels vary by type.
Page 58: Configuring An Sdi Source
Configuring the Lightspeed Live Capture Server and Apps Managing and Configuring Sources Configuring an SDI Source SDI Input source options are configured in the Live Source Manager web page. All SDI sources present on Lightspeed Live systems are automatically added to the inventory list of sources.
Page 59 Configuring the Lightspeed Live Capture Server and Apps Managing and Configuring Sources The Configure Source dialog provides these options for the SDI input sources: • Name—Specifies the name of the source. • Force 10-Bit Video—When enabled, activates full 10-bit sampling of the video on the SDI input.
Page 60 SDI input: – Source—Uses the timecode provided in VBI or VANC (SMPTE 12M-2/RP188) of the selected Lightspeed Live Capture's video input signal. If a valid timecode is not available or goes away, see the Free Run TimeCode option below. –...
Page 61: Switching Between Hd And Uhd Configurations
This option can also be turned off or on from Live Capture when configur- ing SDI sources. See Cisco ID3 in the Configuring SDI Source Options topic in the Lightspeed Live Capture User Guide. This setting is available only in Advanced Mode. •...
Page 62 Configuring the Lightspeed Live Capture Server and Apps Managing and Configuring Sources To switch from HD into UHD/4K input mode: 1. Deactivate all Capture workflows actively running on any of the server inputs. 2. From a valid UHD source connect the four (4) UHD input cables to the appropriate SDI input BNC connectors.
Page 63: Configuring A File Loop Source
This option can also be turned off or on from Live Capture when configur- ing SDI sources, see Cisco ID3 in the Configuring SDI Source Options topic in the Lightspeed Live Capture User Guide. Available only in Advanced Mode. Lightspeed Live Capture User Guide...
Page 64: Configuring A Transport Stream Source
Configuring the Lightspeed Live Capture Server and Apps Managing and Configuring Sources Configuring a Transport Stream Source The Transport Stream Configure Source dialog opens when you create or edit a Transport Stream source. Note: The settings for Multicast Group IP Address, Local NIC/IP Address, Port Number, and Program Number can only be changed when you are first adding a new Transport Stream source.
Page 65 SCTE-35 and ID3 data can also be inserted via the Sources API. Note: Lightspeed Live Capture requires that an IP input source is formated using standard frame sizes and frame rates. See the Technical Specifications in the...
Page 66: Configuring An Rtmp Source
Configuring the Lightspeed Live Capture Server and Apps Managing and Configuring Sources Configuring an RTMP Source The RTMP Configure Source dialog opens when you create or edit an RTMP source. Telestream recommends limiting RTMP/Transport Stream sources to eight, unless testing in your environment indicates you can enable more.
Page 67: Managing And Configuring Audio Tracks
CPU sockets during heavy loads, such as when all four inputs are being processed. Applies to SD/HD sources only, not 4K. Note: Lightspeed Live Capture requires that an IP input source is formated using standard frame sizes and frame rates. See the Technical Specifications in the...
Page 68: Configuring An Audio Track
Configuring the Lightspeed Live Capture Server and Apps Managing and Configuring Sources Configuring an Audio Track To open the audio track configuration dialog, click the Edit This Track pencil icon the track you want to configure. You can change configuration dialog settings to configure the track as described below.
Page 69: Configuring Capture Resources
In the case of Lightspeed Live Capture, the primary actions are the Capture action and the Tape action. Before a Lightspeed Live Capture workflow can be activated to capture media, you must first configure Lightspeed Live Capture and Vantage as follows: ■...
Page 70: Configuring Settings For Your Facility
Vantage Domain Management Guide.) 2: Apply Your License. Apply your Lightspeed Live Capture license by clicking Licenses in the left panel and verifying that you have a Live Capture license. If not, contact Telestream for a license, and click the Add/Update a License button the Licenses panel to add the new license.
Page 71 Configuring Settings for Your Facility 4: Create User Accounts. Create user accounts for Lightspeed Live Capture. Select Users near the bottom of the left panel to create new user accounts. To add a new account, click the New User button in the Users panel and fill in the form.
Page 72 Follow these steps to configure Live Stores as UNC paths to allow automatic deletion of deleted and expired capture files: a. Create a local Live Store for each Lightspeed Live Capture server in the domain. For example, for Capture servers LSL-01, LSL-02, and LSL-03, create these stores:...
Page 73 Configuring the Lightspeed Live Capture Server and Apps Configuring Settings for Your Facility Store Live Store Name Location Type Alias LSL-01 Local Live Store D:\Live\Store Live \\LSL-01\d\live\store LSL-02 Local Live Store D:\Live\Store Live \\LSL-02\d\live\store LSL-03 Local Live Store D:\Live\Store Live \\LSL-03\d\live\store d.
Page 74 Configuring the Lightspeed Live Capture Server and Apps Configuring Settings for Your Facility 6: Create Address Book Delivery Locations. Add delivery locations to the Vantage Folder Address Book where captured files can be written. Click Vantage Folder Address Book and create new address book entries. Folder locations must be Windows file system locations with a letter drive or network UNC path.
Page 75: Using Inputs For Both Live Stream And Capture
Configuring the Lightspeed Live Capture Server and Apps Using Inputs for Both Live Stream and Capture Using Inputs for Both Live Stream and Capture This Note and Warning apply only when Live Stream and Live Capture are used on the...
Page 76: Configuring Ingest Sources
Configuring Ingest Sources Configuring Ingest Sources Before the channel groups and sources can be accessed by the Lightspeed Live Capture or Tape Capture web app, they need to be defined. This allows the system to work with the sources according to your workflow and Lightspeed Live Capture or Tape Capture web app configurations.
Page 77 Configuring the Lightspeed Live Capture Server and Apps Configuring Ingest Sources 3. Use the Create a new Nexus definition button in the Nexus Definitions panel to create at least one Channel Group Nexus definition, setting the type to Capture or Tape Capture.
Page 78: Using Capture Inventory To Preview And Find Workflows Used By An Input
Configuring the Lightspeed Live Capture Server and Apps Configuring Ingest Sources Using Capture Inventory to Preview and Find Workflows Used by an Input Note: The process of managing and configuring input sources for Live Capture has changed in v3.0 (and later). All source management and configuration should now done from the Source Manager page (see below for details).
Page 79: Previewing Sources
Configuring the Lightspeed Live Capture Server and Apps Configuring Ingest Sources Previewing Sources You can preview source video and see information about it in a small window (below) by using the Preview button in the Capture Inventory toolbar. The preview image is updated once per second.
Page 80: Installing The Live Capture & Tape Capture Web Apps
Clear Browsing Data after Updating After a Vantage or Live Capture ComponentPac update is installed, you must clear the browsing data in your Chrome browser in order for the Lightspeed Live Capture or Tape Capture web applications to operate properly. See...
Page 81: Renaming Or Reconfiguring Servers
Correcting Thumbnail Appearance on Non-Local Systems Lightspeed Live Stream servers do not include Vantage as part of the product. However, Lightspeed Live Capture includes Vantage pre-installed as part of the product, and the Capture Vantage domain uses the name assigned to the Windows server that hosts the Vantage domain database as its domain name.
Page 82 Windows as it may not have been updated. For example, if the original hostname was lsl-telestream and the new one is lsl-customer, the User Name may still be listed as: lsl-telestream\Administrator. If so, change the hostname to: lsl-customer\Administrator, and re-enter your password.
Page 83 Configuring the Lightspeed Live Capture Server and Apps Renaming or Reconfiguring Servers 15. When the Select Service dialog appears, click Machine to sort the services by machine name. 16. To add Vantage services for a specific machine, select the services you want and click OK.
Page 84: Array Licensing For Multiple Server Live Capture Systems
Adding Live Capture to an Existing Vantage Domain Array • Example: If you are adding one or more Lightspeed Live Capture servers to an existing Vantage domain that already has array licensing for the Vantage servers, no additional array licenses need to be ordered. For these types of systems you will need to have the existing Vantage domain license updated to include Live Capture and an associated array license for each Live Capture server added to it.
Page 85: Important Notes On Configuring Non-Capture Workflow Actions On Multiple Server Systems
In this case “Run On Rules” are not required. Your system will automatically choose an available resource on any server that can run the required action's process. Note: Running Lightspeed Live Capture and Vantage together without array licenses is not recommended and may result in reduced functionality.
Page 86: Joining Multiple Capture Servers
Renaming or Reconfiguring Servers Joining Multiple Capture Servers Your Lightspeed Live Capture server is factory-configured as a standalone live Capture system. This configuration includes a Vantage database running on each standalone Live Capture server. If you plan to manage multiple Live Capture servers from a...
Page 87: Joining Capture-Only Systems
Configuring the Lightspeed Live Capture Server and Apps Renaming or Reconfiguring Servers Joining Capture-Only Systems Two or more Lightspeed Live Capture servers can be joined together to form a multiple server Live Capture-only system. This allows for common configuration, management, and capture control.
Page 88: Existing Vantage Array - Adding Live Capture Server(S)
Vantage Array licensing. See the Vantage Domain Management Guide for details. To add Lightspeed Live Capture services to a Vantage Array, follow these steps: 1. Verify that the Lightspeed Live Capture services are running, all Vantage Services are running on the server, and no jobs are being processed in the local, factory- installed All-In-One domain.
Page 89: Uniquely Named Multiple Capture Servers
Array, and it is active. Refer to the Vantage Domain Management Guide > Installing a Vantage Distributed Domain, for more details. 3. Verify that the Lightspeed Live Capture server is on the same network as the existing Vantage Array domain, with sufficient network permissions and access.
Page 90: Best Practice For Multiple Live Capture Server System Design
Configuring the Lightspeed Live Capture Server and Apps Renaming or Reconfiguring Servers Best Practice for Multiple Live Capture Server System Design The best practice for using multiple Live Capture server systems is to install and run the Vantage master domain database and IIS Web Server on a server(s) that is separate from the Live Capture servers.
Page 91 Configuring the Lightspeed Live Capture Server and Apps Renaming or Reconfiguring Servers Live Capture/Vantage Array—with Separate Vantage Domain Database and IIS Web Host Servers For this example the Vantage master domain database and IIS Web server are installed on two completely separate servers. Since this is a large system array containing six (6)
Page 92: Connecting The Applications For Multiple Servers
Configuring the Lightspeed Live Capture Server and Apps Renaming or Reconfiguring Servers Connecting the Applications for Multiple Servers When there are multiple Capture server systems where the database and web server reside on specific server(s) within the multiple server configuration, the Vantage client applications and/or the Live Capture web application need to be configured to connect to the appropriate server.
Page 93: Using The Live Capture Web App With Multiple Servers
Renaming or Reconfiguring Servers Using the Live Capture Web App with Multiple Servers To use the Lightspeed Live Capture web application when there are multiple servers, first install the Vantage Web Applications on the server running the IIS Web service. To...
Page 94: Using Netbios Hostnames Instead Of External Name Server
Configuring the Lightspeed Live Capture Server and Apps Renaming or Reconfiguring Servers Using NetBIOS Hostnames Instead of External Name Server A multi-node Live Capture system can be used without an external name server, when NetBIOS is enabled in the database server and all nodes.
Page 95 Configuring the Lightspeed Live Capture Server and Apps Renaming or Reconfiguring Servers 5. Configure the IP Address, unique for each server. 6. Configure the Subnet Mask, Default Gateway, and the DNS server addresses. Use the same addresses for each server.
Page 96: Correcting Thumbnail Appearance On Non-Local Systems
Then type the IP address of your Lightspeed Live Capture server. For example: 102.54.94.97 5. Press the Tab key, then type the hostname of the Lightspeed Live Capture server. For example: CaptureServer1 6. Hold down the Control and 0 keys.
Page 97: Updating Capture Using Secured Version Control And Componentpacs
When, and if, it is desired to upgrade a workflow or action within a workflow, it can be done at a convenient time. Secured Version Control has been implemented as part of Lightspeed Live Capture and Vantage v7.0. ComponentPacs are architected in such a way as to facilitate the inclusion of multiple component versions.
Page 98: Clear Browsing Data After Updating Vantage Or Live Capture
Live Capture After a Vantage or ComponentPac update is installed, you must clear the browsing data in your Chrome browser in order for the Lightspeed Live Capture or Tape Capture web applications to operate properly. Follow these steps to clear the browsing data: 1.
Page 99: Creating Capture & Tape Action Workflows
Capture, Avid, and Tape action workflows. You may want to refer to these resources as you use this chapter: • Using the Live Capture Web Application • Appendix B: Containers, Codecs, and Vantage Actions • Lightspeed Live Stream User Guide • Vantage User Guide • Lightspeed Live Capture Web API Reference...
Page 100: Creating And Activating The Capture Action Workflow
The following topics explain how to configure the Capture action and workflows: ■ Capture Action Overview ■ Program ■ Expected Labels ■ Trigger Settings ■ Using the Schedule Trigger ■ Primary and Secondary Outputs ■ Creating a Capture Action Workflow Lightspeed Live Capture User Guide...
Page 101: Capture Action Overview
Lightspeed Live Stream User Guide, available on the Telestream web site. The Lightspeed Live Capture Web API can also be used to create custom programs to control capture workflows. For details on the Web API see the...
Page 102: Program
All Leader, Filler, and Trailer files must meet these requirements: - QuickTime wrapped MOV ProRes format. - One stereo audio track containing two channels of PCM audio. - The frame size and frame rate must match the input source it is used with. Lightspeed Live Capture User Guide...
Page 103 Note: For details on the Web API see the Lightspeed Live Capture Web API Reference at the bottom of the Live Support page on the Telestream website. Trailer. When enabled, the Trailer file will be written to the end of your captured file.
Page 104: Expected Labels
Vantage Management Console. Labels can be used in downstream Vantage actions or transformed into text or XML for out-of-band delivery. For more information on creating labels, search the Lightspeed Live Capture User Guide for Create Labels and Variables for the Tape and Capture Actions.
Page 105: Trigger Settings
A recording is started by the Capture action when one of the following is seen attached to a sample on the source: - SCTE splice insert data with Splice Insert_Type = 3. - SCTE time signal data with a segmentation type ID of 0x10 indicating Program Start. Lightspeed Live Capture User Guide...
Page 106 Input]:[15000]/InsertScte35Message?source=[SOURCE GUID]&scte35Message=ProgramEnd&eventID=0 The SOURCE GUID can be obtained by using the GetSource command. See the Lightspeed Live Capture Web API Reference at the bottom of the Live Support page on the Telestream website for details on this command. Lightspeed Live Capture User Guide...
Page 107: Manual Trigger
In and Out points. When checked, adds the OUT and IN control buttons to the workflow instance in the Live Capture Classic web application (only). See the Live Capture Classic Web Application appendix in the Lightspeed Live Capture User Guide for details.
Page 108: Schedule Trigger
Management Guide for detailed instructions. Allow manual control. (Note: Use caution when enabling the Schedule Manual Trigger manual control.) When enabled, manual control via the Lightspeed Live Capture web application is allowed. Jobs can be immediately started using the manual controls in the same way as with the Manual Trigger.
Page 109: Web Service Trigger
Select Web Service to trigger live video capture in a custom program, using commands from the Lightspeed Live Capture Web API. You can queue up a maximum of 16 Web Service trigger jobs per Live Capture host server at any one time.
Page 110: Using The Schedule Trigger
Note: You must use a calendar that is dedicated to only contain events that are used for Lightspeed Live Capture. All events in the calendar are used for Live Capture, no matter what name they are given or other purpose they are intended for.
Page 111: Adjusting Your Google Account Settings For Live Capture Access
Note: This setting is not available if the account has 2-Step Verification, or if your Google account administrator has locked less secure app account access. In these situations you should use a different account or change the account settings in order to access the “Allow less secure apps” option. Lightspeed Live Capture User Guide...
Page 112: Creating A Schedule Trigger
4. Select Schedule from the Trigger drop-down list. 5. The Schedule fields display in the right panel. 6. Calendar - In the Calendar field enter the URL to the CalDAV calendar you want to use. The URL pattern is: Lightspeed Live Capture User Guide...
Page 113 Note: CalDAV calendar server applications may implement security restrictions to prevent unauthorized access. Set your calendar's security settings appropriately to allow Lightspeed Live Capture access to calendar events. 7. Username - In the Username field enter the email address you use for your CalDAV calendar.
Page 114 Leader to be written. The capture will fail when adequate time is not available between activating the workflow and capturing the first clip. Lightspeed Live Capture User Guide...
Page 115: Primary And Secondary Outputs
Time token set to 'mmm' to the file name in one workflow by using Edit Filename, which will return seconds down to a thousandth of a second and add this onto the file name. Lightspeed Live Capture User Guide...
Page 116 Select Media Nickname. Click the menu to select the nickname (or enter it manually) for this new package file. Delete. Click the X icon on the right to delete the output from this action. Lightspeed Live Capture User Guide...
Page 117: Time Code Burn-In Filter
When a color entry is not valid, the white default is used. Timecode Transparency—The opacity of the timecode. 1.00 is fully opaque, or 100% opacity, 0 is transparent. Note: The burned-in Timecode will always represent the actual input timecode being used by the Input Source. Lightspeed Live Capture User Guide...
Page 118: Creating A Capture Action Workflow
Capture Action per workflow. 4. Select the Inspector (circled i) icon on the upper left corner of the action to open the Inspector and configure the action, or double-click the action to open the Inspector. Lightspeed Live Capture User Guide...
Page 119 Note: Workflow expiration is set for 24 hours and is enabled by default. For details, click the ? in the upper right to open the Vantage User Guide. See the Viewing and Specifying Workflow Details topic for information on adjusting the expiration time. Lightspeed Live Capture User Guide...
Page 120 This completes configuration and a simple workflow as prerequisites for running the Live Capture web app. You are now ready to log into the Live Capture web app and begin using it as explained in Using the Live Capture Web Application chapter. Lightspeed Live Capture User Guide...
Page 121: Creating Avid Workflows
Creating Capture & Tape Action Workflows Creating Avid Workflows Creating Avid Workflows The following topics explain how to use Lightspeed Live Capture workflows to ingest sources for Vantage Avid workflows. The workflows shown here produce Avid OPAtom MXF media with associated AAF files.
Page 122 Creating Capture & Tape Action Workflows Creating Avid Workflows Examples of Interplay Single-Res and Media Composer container settings: Lightspeed Live Capture User Guide...
Page 123: Important Note Regarding Licensing Live Capture Systems For Avid Interplay Workflows
Live Capture option part code LS-LIVE-AVID-OPT. Required Avid Components are Installed by User or Avid Certain Avid components are required to be installed by the user or by Avid. Telestream cannot install or modify Interplay components or configurations. See the...
Page 124: Multiple Resolution Avid Interplay Workflow
– Flip 2—The second Flip Action takes the TIFO file generated by Capture and transcodes it into an Avid Proxy (H.264 Proxy and Telestream H.264 (1080@29.97 and 1080i@25). If using the Interplay Single-Res container you will need to include the Interplay and Avid shared storage data, and have its decoder set to TIFO.
Page 125: Creating And Activating The Tape Action Workflow
The following topics explain how to create and activate a Tape action workflow: ■ Tape Action Overview ■ Inputs ■ Expected Labels ■ Primary and Secondary Outputs ■ Settings Panel ■ Creating the Tape Action Workflow Lightspeed Live Capture User Guide...
Page 126: Tape Action Overview
The encoded media is captured to a primary file stored locally or copied to external storage. Note: Most Lightspeed Live Capture MXF files containing IMX, XDCAM or AVC Intra, and QuickTime Open files (Capture action only), are created in such a way that they can be opened for editing/playing (in Adobe Premiere Pro CC, Telestream Switch and other media applications) while they are still growing during capture.
Page 127: Expected Labels
Tape Capture web app. Click the Capture button in the Tape Capture web app to select the primary output container format you want to use for each capture operation. Lightspeed Live Capture User Guide...
Page 128: Settings Panel
Specify settings to use for each output configuration. Binding any of these parameters to variables will make those parameters configurable from within the Tape Capture user interface. Ignore Lost Frames. When checked, lost frames do not cause the capture to stop. Lightspeed Live Capture User Guide...
Page 129 Example 1: A time code incrementing from 00:00:30;10 to 00:00:30;15 would be detected by a threshold of 4 or less. Example 2: A time code repeating from 00:00:30;10 to 00:00:30;10 would be detected. Example 3: A time code decrementing from 00:00:30;10 to 00:00:29;00 would be detected. Lightspeed Live Capture User Guide...
Page 130 Therefore, it is important to check the logs to verify whether the servo was locked while a specific frame was captured. For past users of Telestream’s Pipeline tape capture product, enabling all three settings above will provide the cleanest results and the closest to what Pipeline used to do.
Page 131 When you need to have downstream actions process the secondary output, but you want the option to disable the secondary output in the Tape Capture web app, add the Poster Frame secondary output so that can be selected in the web app as the disabled option. Lightspeed Live Capture User Guide...
Page 132: Time Code Burn-In Filter
Timecode Transparency. The opacity of the timecode. 1.00 is fully opaque, or 100 per cent opacity, 0 is transparent. Note: The burned-in Timecode will always represent the actual input timecode being used by the Input Source. Lightspeed Live Capture User Guide...
Page 133: Creating The Tape Action Workflow
3. Drag the Tape action from the Live service to the design area. A workflow can consist of only this one action. Other actions can be added to perform specific additional functions. See Appendix B: Containers, Codecs, and Vantage Actions. Lightspeed Live Capture User Guide...
Page 134 Settings Panel described previously. 6. When finished with Tape action configuration, click Save. 7. Click Activate to start the workflow. This workflow must be running to connect the user interface to the VTRs. Lightspeed Live Capture User Guide...
Page 135: Binding Variables To Configuration Parameters
Bound to Variables. Configuring Variables in the Live Capture Web Application Any parameter that has been bound to a variable can be configured within the Live Capture web app Customize Parameters dialog. See Channel Options. Lightspeed Live Capture User Guide...
Page 136: Enabling Open Workflows
Capture or Tape action regardless of whether the Vantage system is directly licensed to support Open Workflows, or not. This capability is enabled when your workflow's origin action is a Live Capture or Tape action. Lightspeed Live Capture User Guide...
Page 137: Using The Live Capture Web Application
Using the Live Capture Web Application This chapter describes the Lightspeed Live Capture web application, how to access it and how to use it. This chapter covers the following topics: ■ Live Capture Classic Web Application ■ Prerequisites to Using Live Capture ■...
Page 138: Prerequisites To Using Live Capture
To install the Live Capture web application, see Installing the Live Capture & Tape Capture Apps. For additional details, open the Help menu (?) from the upper right corner of the applications, or the circled (M) in action inspectors. Lightspeed Live Capture User Guide...
Page 139: Accessing The Lightspeed Live Capture Web App
Accessing the Lightspeed Live Capture Web App Only the Chrome browser (version 50 or greater) is supported to work with the Lightspeed Live Capture web application. Follow these steps to launch and log into the app: 1. Access the locally installed Live Capture web application using this URL for the...
Page 140: Create A Separate Account For Each User
Accessing the Lightspeed Live Capture Web App Create a Separate Account for Each User Multiple users accessing the Lightspeed Live Capture web application should each have their own unique account, and not use the administrator login credentials. This allows the administrator to provide appropriate access parameters for each user, and helps improve system efficiency by keeping resource usage lower.
Page 141: Lightspeed Live Capture Web App Overview
Using the Live Capture Web Application Lightspeed Live Capture Web App Overview Lightspeed Live Capture Web App Overview These are some key features of the Lightspeed Live Capture web application: • Select Live Capture channels and channel groups • View information, images of the content, and status about each capture channel •...
Page 142: Live Capture Controls And Operation Status
Using the Live Capture Web Application Live Capture Controls and Operation Status Live Capture Controls and Operation Status The Lightspeed Live Capture web application provides controls, content previews, and status information for live capture functionality. Title Panel The Title panel at the top of the application provides these options: Home—Click to open the Vantage web applications menu.
Page 143: Channel Previews Panel
■ Channel Previews Controls ■ Configuring the Custom Ganged Recording Defaults ■ Channel Controls ■ Channel Options ■ Channel Recording Information ■ Display and Information Panel ■ Loss of Signal Behavior ■ Limited Bandwidth Behavior Lightspeed Live Capture User Guide...
Page 144: Channel Previews Controls
Time-Shift (4 channels X 10 seconds per channel = 40 seconds). • Note that all ganged channels must use the same timecode source in order to be synchronized to the exact same frame during the gang recording operation. Lightspeed Live Capture User Guide...
Page 145 If no persisted value is present (for example, a new variable is assigned to a workflow that has just been activated), the default value configured in the Vantage Management Console is used. Lightspeed Live Capture User Guide...
Page 146: Configuring The Custom Ganged Recording Defaults
Filename Pattern Editor in the Capture action for this channel. The Base Name entered will be applied to all channels selected for recording. To add the Base Name token, see Primary and Secondary Outputs. Lightspeed Live Capture User Guide...
Page 147 When not enabled, recording will stop when a timecode discontinuity is detected. Timecode Break Recording Timecode Discontinuity Definition in the Using the Tape Capture Web Application chapter for discontinuity details. Lightspeed Live Capture User Guide...
Page 148: Channel Controls
Current State Information Record, Open Record Options, or Stop Trigger Type—Indicates the Trigger assigned to the channel: Icon Trigger Type Manual Trigger DAI (Dynamic Ad Insertion) Trigger Schedule Trigger Web Service Trigger Recurring Segment Trigger Lightspeed Live Capture User Guide...
Page 149: Trigger Type
Record/Stop—Click Record to immediately start recording for the channel. When recording, click Stop to end recording. Record Options—Click Record Options to open the Record options dialog for the channel. See Configuring the Custom Ganged Recording Defaults. Lightspeed Live Capture User Guide...
Page 150: Channel Options
Management Console and enabled in the Capture action. Labels can be used in downstream Vantage actions or transformed into text or XML for out-of-band delivery. To add labels to the Capture action, see Expected Labels. Lightspeed Live Capture User Guide...
Page 151 Note: All configuration variable values are passed to downstream workflow actions where they can be analyzed or used within your entire workflow. Recordings—Opens the Recordings dialog that displays information about the current, queued, and previous recordings. See Channel Recording Information below. Lightspeed Live Capture User Guide...
Page 152: Channel Recording Information
Base Name, the workflow name, or capture start time entries. Duration—The duration that was specified to record, or the final duration. The Start and Stop timecode may also be displayed. Lightspeed Live Capture User Guide...
Page 153: Display And Information Panel
The Display and Information panel plays video and audio from the currently selected channel and provides channel status and information. Workflow Name Primary Output Secondary Output Source file selections Vantage Domain and Input Preview Display Timecode Audio Meters and Controls Video/Audio Details Lightspeed Live Capture User Guide...
Page 154 Includes up to eight (8) audio pairs. Timecode—Displays the current timecode. Video/Audio Details—Displays video resolution, frame rate, bit depth, number of audio channels, and whether captions are present. Lightspeed Live Capture User Guide...
Page 155: Loss Of Signal Behavior
• Jobs that are recording with the Ignore Lost Frames option enabled will continue capturing for their scheduled duration, and will contain the frozen frame/color bar frame or active video if it returns. Lightspeed Live Capture User Guide...
Page 156: Limited Bandwidth Behavior
You can paste the copied path into your Windows File Explorer, then log into the Lightspeed Live server to open the file with an appropriate application. Lightspeed Live Capture User Guide...
Page 157: Filtering Job Status
Click X to clear the settings Jobs—Select to filter by typing portions of the job name to see only the jobs in each channel that contain the typed characters. You can also select sorting options for additional refinements. Lightspeed Live Capture User Guide...
Page 158: Triggers Determine The Method Of Channel Control
The following steps explain how to set up an example DAI trigger. Steps shown here may vary according to your needs: 1. Create a Capture workflow that uses a DAI trigger. Lightspeed Live Capture User Guide...
Page 159 The following partial example illustrates a typical rules XML file: <?xml version="1.0" encoding="utf‐8"?> <triggers> <rule> <description>Default Start ‐ Program Start</description> <captureaction>Start</captureaction> <ignoreeventids/> <extracttovariable variablename="segmentation_upid_name">segmentation_upid</extracttovariable> <scte104> <multiple_operation_message> <time_signal_request_data> <pre‐roll_time>0</pre‐roll_time> </time_signal_request_data> <insert_segmentation_descriptor_request_data> <segmentation_type_id>16</segmentation_type_id> </insert_segmentation_descriptor_request_data> </multiple_operation_message> </scte104> </rule> <rule> <description>Default Stop ‐ Program End</description> <captureaction>Stop</captureaction> <ignoreeventids/> <scte104> <multiple_operation_message> <time_signal_request_data> <pre‐roll_time>0</pre‐roll_time> </time_signal_request_data> <insert_segmentation_descriptor_request_data> <segmentation_type_id>17</segmentation_type_id> Lightspeed Live Capture User Guide...
Page 160: Manual Trigger
</multiple_operation_message> </scte104> </rule> </triggers> Note: SCTE-104 rules files can be complex. It is best to contact your Telestream Sales Engineer for details on configuring them correctly. Trigger Settings in the Capture Workflows chapter for specific DAI Trigger settings and details. You can also get help from...
Page 161: Recurring Segment Trigger
("record-HH:MM:SS"). The Timed Recording option does not apply to Recurring Segments, and is not available. See Configuring the Custom Ganged Recording Defaults for descriptions of the Record dialog options. Lightspeed Live Capture User Guide...
Page 162: Schedule Trigger
For more information see Web Service Trigger in the Creating Capture and Tape Workflows chapter. The Lightspeed Live Web API Reference document is available on the Telestream website: Lightspeed Live Capture Web API Reference. Lightspeed Live Capture User Guide...
Page 163: Recorded File Location And Format
Live Store, possibly filling up your storage unnecessarily. For details about Live Store configuration, see When to Specify a UNC Path for Live Stores in the Configuring the Lightspeed Live Capture Server and Apps chapter of this guide. Lightspeed Live Capture User Guide...
Page 164: Using The Vantage Job Status Views
To open Job Status Views for Vantage or Live Capture, first click the Home button in the title panel to access the Vantage Web Applications home page. Click the Home button to access the Vantage home page On the Vantage Web Applications home page, click Job Status Views, as shown below. Lightspeed Live Capture User Guide...
Page 165: The Vantage Job Status Views Web Application
Using the Vantage Job Status Views Open Job Status Views The Vantage Job Status Views Web Application The following shows an example of information provided in the Job Status Views web application, this example is set to display All Workflows. Lightspeed Live Capture User Guide...
Page 166: Configuring Job Status Views Information
The information displayed in Job Status Views, and public or private access permissions, is configured in the Vantage Management Console. For details on customizing the Vantage Job Status Views see the Configuring Job Status Views topic in the Domain Management Guide on the Telestream web site. Lightspeed Live Capture User Guide...
Page 167: Using The Tape Capture Web Application
Using the Tape Capture Web Application This chapter describes the Lightspeed Tape Capture web application, how to access it and how to use it. The following topics are included in the chapter: ■ Prerequisites to Using Tape Capture ■ Configuring the VTR Connection ■...
Page 168: Prerequisites To Using Tape Capture
Configuring the VTR Connection ■ Creating and Activating the Tape Action Workflow For additional details, open the Help menu (?) from the upper right corner of the applications, or the circled (M) in action inspectors. Lightspeed Live Capture User Guide...
Page 169: Configuring The Vtr Connection
5. In the Configuration panel select RS-422 from the TimeCode Source drop-down menu. 6. Click the Save button to save the Capture Inventory changes. If you have additional VTRs, configure and save each SDI input that has a VTR connected to it. Lightspeed Live Capture User Guide...
Page 170: Checking The Vtr Connection Status
Manager. Open the Device Manager and toggle open the “Ports (COM & LPT)” devices. When properly connected, the ports of the RS-422 interface box will appear as USB Serial Port (COM3) through USB Serial Port (COM6) as shown in the following image. Lightspeed Live Capture User Guide...
Page 171 Status has changed to "Initializing: VTR connected", as shown in the image on the previous page. When the VTR connection is successfully initialized, use the Tape Capture web app to set recording parameters and control the VTR to ingest media from tape. Lightspeed Live Capture User Guide...
Page 172: Accessing The Lightspeed Tape Capture Web App
Domain in the web apps title panel. Click OK to log out, then click Search in the dialog that appears, select the correct domain, and click OK. Enter the user name and password to log into the selected domain. Lightspeed Live Capture User Guide...
Page 173: Tape Capture Overview
Workflow/Status Panel—Shows workflows (if selected) or job status (if selected). Log Panel—Shows and controls tapes, clips, and media. Preview Player Panel—Plays video, displays audio (8 stereo), provides VTR controls. Log Panel Domain Preview Player Selection Panel Workflow/Status About User Title Panel Lightspeed Live Capture User Guide...
Page 174: Tape Capture Controls And Operation Status
Select the workflow you want to use for viewing sources, marking clips, and creating media. The selected workflow displays details about its configuration. When you select the Status button, this panel provides a job status display. Lightspeed Live Capture User Guide...
Page 175: Log Panel
Esc exits timecode edits without saving changes. Workflow Name—The top left corner displays the selected workflow name. To change this, change the workflow selected in the Workflow panel. For details about the Stitch, Gear, and Capture controls, see Capturing Clips. Lightspeed Live Capture User Guide...
Page 176: Clip Panel
When unlocked (lock top open), duration can change automatically with changes to in or out times. Manual duration entries are always allowed whether locked or unlocked. Lightspeed Live Capture User Guide...
Page 177 Vantage actions or transformed into text or XML for out-of-band delivery. To make labels see Configuring Settings for Your Facility, Step 7. To add labels to the Tape action use the Expected Labels option; see Creating and Activating the Tape Action Workflow. Lightspeed Live Capture User Guide...
Page 178: Log
[workflowname].csv (using the associated Vantage workflow name) and are exported to the default download folder specified by the Chrome browser. You can see and set the default folder in Chrome > Settings > Advanced Settings > Downloads. Lightspeed Live Capture User Guide...
Page 179: Capturing An Entire Tape
Note: The following configuration options affect how files are created in a Timecode Break workflow. It is important to understand how each option affects the files that are created. Some experimentation may be necessary to create the results desired. Lightspeed Live Capture User Guide...
Page 180 New frames would then be added to the file when the servo relocks, which would cause the output file to have discontinuous time- code. To avoid this scenario, enable the Create New File When Servo Relocks option. Lightspeed Live Capture User Guide...
Page 181 • For past users of Telestream’s Pipeline tape capture product, enabling all three set- tings above will provide the cleanest results and the closest to what Pipeline used to do.
Page 182: Tapes
Modify—The modify (three dots) button opens a dialog for selecting Edit Entry to view and modify clip details, or Remove Entry to remove the clip. Trash—Click trash to delete all clips from the Clip Log. Lightspeed Live Capture User Guide...
Page 183: Capturing Clips
Also see Configuring Tape Parameters that are Bound to Variables. Capture—Click Capture to capture clips in the current Clip Log to corresponding output media files. When Capture is selected the Capture Clips dialog opens. Lightspeed Live Capture User Guide...
Page 184 When a capture is in progress, the Clip Log indicates which clip is currently recording and which clips are submitted to be recorded. The time that has elapsed during the recording operation is displayed, along with a progress circle. Lightspeed Live Capture User Guide...
Page 185: Preview Player Panel
RS-422 Indicator—White when Tape Capture has VTR control; red NO RS-422 when not in control (and Tape and Remote indicators are hidden). Alarm—Red Alarm appears below RS-422 only if a problem occurs with the source. Lightspeed Live Capture User Guide...
Page 186: Vtr Controls And Keyboard Shortcuts
The VTR controls operate in a standard fashion. Enter SHIFT + ? to display the list of VTR keyboard shortcuts (shown below). Buttons Keyboard Shortcuts Function Mark In Mark Out Log Clip Rewind Step Backward Stop Step Forward Space Bar Play Fast Forward Lightspeed Live Capture User Guide...
Page 187: Using The Tape Capture Web App
Click the Mark In button in the Clip Panel to set the start timecode of your clip. 5. Play or scrub the video using the VTR controls to find the point where you want the clip to end. Lightspeed Live Capture User Guide...
Page 188: Configuring Clip Stitching
Tapes have been captured into individual files. 9. 8.When complete the system will output an MP4 reference file that contains references to all of the clips in the order that they we arranged in the Clip Ordering dialog. Lightspeed Live Capture User Guide...
Page 189: Capturing Clips
The app also selects the next tape in the list, and indicates that a tape needs to be inserted. You must then insert the tape and press the Capture button to resume the capture (the button will be yellow and read Resume). Lightspeed Live Capture User Guide...
Page 190: Configuring Tape Parameters That Are Bound To Variables
Binding Variables to Configuration Parameters. Any description contained in a variable is displayed by selecting the question mark tooltip (?) next to each parameter. The question mark (?) also provides a tooltip to explain the parameter. Lightspeed Live Capture User Guide...
Page 191: Setting Drop/Non-Drop Frame Characteristics
6. Click Save to save your changes and close the dialog. When the capture is activated the output file will use the drop frame or non-drop frame characteristic you have set. Lightspeed Live Capture User Guide...
Page 192: Creating A Stitched Clip
6. When your Clip Log is complete, select the Clip Stitch Order button to open the Clip Stitch Order dialog. The Clip Stitch Order dialog allows you to order the clips the way you want them to appear in the stitched output file. The clips can be Lightspeed Live Capture User Guide...
Page 193 Primary output of individual clips and a stitched clip, or clips, depending on your workflow settings. 11. The Primary and Secondary files can be processed by any downstream action in the same way they are in the non-stitched mode. Lightspeed Live Capture User Guide...
Page 194: Recording A Complete Tape - Even If It Has Errors
Capture Web Application chapter for discontinuity details. Using the Job Status View in Tape Capture Click the Status button in the upper left corner of the user interface to display the status of running and completed Tape Capture jobs. Lightspeed Live Capture User Guide...
Page 195 Using the Tape Capture Web Application Using the Job Status View in Tape Capture For details see the Vantage Job Status Views web app and Using the Vantage Job Status Views. Lightspeed Live Capture User Guide...
Page 196 Using the Tape Capture Web Application Using the Job Status View in Tape Capture Lightspeed Live Capture User Guide...
Page 197: Calculating Live Capture Resources
Calculating Live Capture Resources This chapter provides information to help you calculate Lightspeed Live Capture resource usage. The following topics are included: ■ Lightspeed Live Capture Resource Calculator ■ Determining the Time-Shift Buffer Duration ■ Calculating your Resource Usage Capacity...
Page 198: Lightspeed Live Capture Resource Calculator
Lightspeed Live Capture Resource Calculator Lightspeed Live Capture Resource Calculator Lightspeed Live Capture uses a variety of codecs and format containers to encode live video into media files. At the simplest level, Lightspeed Live Capture consists of customizable workflow actions that automate the live capture process. A workflow is the mechanism you create that takes an incoming live source and encodes it into one of many available codec and container formats.
Page 199: Browser Operation Is Not Included In Usage Calculations
Browser Operation is Not Included in Usage Calculations Telestream recommends that you connect to the Lightspeed Live Web Applications from browsers running on client machines, and not to run browsers UIs directly on the Lightspeed Live servers. This avoids additional decoding load for the Live Web app’s preview displays on the Live Capture servers.
Page 200: Calculating Your Resource Usage Capacity
Calculating Live Capture Resources Lightspeed Live Capture Resource Calculator Calculating your Resource Usage Capacity Use the processing resource charts below to determine whether your Lightspeed Live server can process all of your desired Live Capture workflow's video codec requirements. The charts are organized based on input signal type and list available codecs used with each input type.
Page 201: Resource Use Factor (Ruf) Charts
Calculating Live Capture Resources Lightspeed Live Capture Resource Calculator Resource Use Factor (RUF) Charts Use the following charts to determine your Resource Use Factor (RUF) for Live Capture. The charts provide the typical RUF for each codec. The total of all of your concurrently active workflow Resource Use Factors must be less than or equal to one (1) RUF, which is the maximum process handling load that you should place on each Lightspeed Live server.
Page 202: Secondary Outputs - Ruf Values
Calculating Live Capture Resources Lightspeed Live Capture Resource Calculator CAUTION: A Secondary Output should not be concurrently generated when the primary output is recording UHD/4K. Secondary Outputs - RUF Values 640x480 (default) Same as Source Proxy MP4 0.05 0.10 Proxy HLS 0.05...
Page 203: Example 1-Uses A Total Of 1.00 Ruf
Calculating Live Capture Resources Lightspeed Live Capture Resource Calculator Example 1—Uses a Total of 1.00 RUF Example 1 shows four (4) SDI-HD inputs. Each SDI Input is connected to a separate workflow to create a variety of file outputs. In this example, the total of the Resource Use Factor value from all Live Capture workflows equals one (1) RUF.
Page 204: Example 2-Uses A Total Of 0.90 Ruf
Calculating Live Capture Resources Lightspeed Live Capture Resource Calculator Example 2—Uses a Total of 0.90 RUF Example 2 shows two (2) SDI-SD inputs and two (2) SDI-HD inputs. SDI 1 and SDI 2 are standard definition creating IMX and ProRes with Proxy files respectively, while SDI-3 and SDI-4 are 1080p60 creating AVC-Intra and Proxy files.
Page 205: Capacity For Capturing Uncompressed Media Via 3G-Sdi Inputs
Capacity for Capturing Uncompressed Media Via 3G-SDI Inputs Lightspeed Live Capture can capture Uncompressed SD or HD in 8-bit or 10-bit via the 3G-SDI inputs. Several factors determine what your Lightspeed Live Capture system is able to reliably capture. Use the chart below to calculate the Resource Use Factor (RUF) when capturing Uncompressed.
Page 206: Example 3-Uncompressed 10-Bit - Uses A Total Of 1 Ruf
Calculating Live Capture Resources Lightspeed Live Capture Resource Calculator Example 3—Uncompressed 10-bit - Uses a Total of 1 RUF Example 3 shows two (2) HD-SDI (1080i60) inputs capturing Uncompressed 10-bit with a concurrent Proxy. The output files are to be written to the local 4 drive RAID 5 media drive.
Page 207: Example 4-Uncompressed 10-Bit - Uses A Total Of 1 Ruf
Calculating Live Capture Resources Lightspeed Live Capture Resource Calculator Example 4—Uncompressed 10-bit - Uses a Total of 1 RUF Example 4 shows four (4) HD-SDI (1080i60) inputs capturing Uncompressed 10-bit with a concurrent Proxy. The output files are to be written to a shared Storage Area Network (SAN) location connected via 16Gb Fibre.
Page 208 Calculating Live Capture Resources Lightspeed Live Capture Resource Calculator Lightspeed Live Capture User Guide...
Page 209: Appendix A: Support
Appendix A: Support This appendix provides contact resources for Telestream Support services, RMA procedures, and troubleshooting information. These topics are included: ■ Obtaining Support | Information | Assistance ■ Return Material Authorization (RMA) Procedure ■ Using Log Files and Other Support Information...
Page 210: Obtaining Support | Information | Assistance
If you purchased your Lightspeed Live server from a Support reseller, please contact your reseller for support. International Reseller Website: www.telestream.net Support See the Telestream website for your regional authorized Telestream reseller. Telestream Technical Email: techwriter@telestream.net Writers If you have comments or suggestions about improving this document, or other Telestream documents—or if...
Page 211: Return Material Authorization (Rma) Procedure
Return Material Authorization (RMA) Procedure If your Lightspeed Live server requires service of any kind, regardless of whether you purchased the Lightspeed Live server from Telestream or an authorized reseller, contact Telestream directly for a Return Material Authorization (RMA). CAUTION: Except for the modular power supplies and disk drives, the Lightspeed Live server is a sealed device, with no user serviceable parts inside.
Page 212: Using Log Files And Other Support Information
Capture. The following describes how to access the log files and how to change the information they contain. Accessing the Log Files The Lightspeed Live Capture log files are available and configurable as follows: • Logging is configured with config files in the Capture componentpac folder (for example, C:\Program Files (x86)\Telestream\Vantage\Components\Cap- ture.7.1.5.xxxxxx)
Page 213: Downloading Log Files For Support
The contents of the log files may be helpful to Telestream Customer Support to troubleshoot system problems. You may want to access and save the log files before making a support call so you can email them to Telestream as part of the support process.
Page 214 LiveService-[date].log.txt—The Stream service log records any encoder failures and the service starting. SNMPLogs\traceLog The SNMPLogs\traceLog folder contains trace logs for the input sources. Logs The Logs folder contains the Capture Record, Capture Program, Tape Record, and other Capture-related log files. Lightspeed Live Capture User Guide...
Page 215: Resolving Capture Error Messages
"ignore lost frames" in the action is disabled, the logged clip will fail with this error: “Loss of signal detected. Data invalid. ” You can resolve this by enabling “ignore lost frames” in the action. Then any signal interruptions will be ignored and the capture will continue. Lightspeed Live Capture User Guide...
Page 216 Appendix A: Support Using Log Files and Other Support Information Lightspeed Live Capture User Guide...
Page 217: Appendix B: Containers, Codecs, And Vantage Actions
This appendix includes descriptions of the containers and codecs available in the Capture and Tape actions and briefly describes other actions included in the Vantage Workflow Designer to support Lightspeed Live Capture and Tape Capture. For more details on Vantage action operation and configuration, open the application help (M) or the Vantage Help menu (?) from the upper right corner of the action inspector.
Page 218: Capture Action Output Containers
Lightspeed Live Capture. Note: Most Lightspeed Live Capture MXF files containing IMX, XDCAM or AVC-Intra, and all QuickTime Open files, are created in such a way that they can be opened for editing/playing (in Adobe Premiere Pro CC, Telestream Switch and other media applications) while they are still growing during capture.
Page 219: Mxf Applicable Standards
Note: The resulting MXF (OP-1a) file can contain VANC data (SMPTE 436M) if present in the incoming SDI stream. Container Settings The MXF OP1a Container wraps the specified media in MXF OP-1a file format. General File Extension. Specifies mxf. No other extensions are provided. Lightspeed Live Capture User Guide...
Page 220: Aspect Ratio Mode
Mpeg Picture Element. Specifies that MPEG picture elements should be used for Avid and Adobe Premiere Pro compatibility. Telestream Index. When enabled, a proprietary Telestream Index file is created for use in specific customer workflows. Aspect Ratio Mode Aspect Ratio Mode.
Page 221: Dvcpro Hd
CUDA Memory Limit. Specifies the CUDA memory limit in MB. Note: When the CUDA Memory Limit is set to 0, GPU processing is disabled. CUDA Tile Limit. Specifies the CUDA tile limit. Encoder Queue Size. Specifies the encoder queue size. Lightspeed Live Capture User Guide...
Page 222: Jpeg2000 Lossy (Comprimato)
Start of Packet Markers. When checked, SOP marker segments are generated. CUDA Memory Limit. Specifies the CUDA memory limit in MB. Note: When the CUDA Memory Limit is set to 0, GPU processing is disabled. Lightspeed Live Capture User Guide...
Page 223: Panasonic Avc-Intra
For best results, be sure to use long form: --bframe 5, for example. Use of short form (-b 5) is not recommended. The following x264 command line parameters are not supported: --fake-interlaced, -- nal-hrd cbr, --profile, --video-format, --bitrate. Lightspeed Live Capture User Guide...
Page 224: Time Code Burn-In Filter
Label Channel Pairs Left/Right. When checked, causes the first channel pair to be labeled Left and Right, unless Force One Track Per Channel is checked, in which case this setting is ignored. Bit Depth. Specifies the output audio bit depth. 16 | 20 | 24. Lightspeed Live Capture User Guide...
Page 225: Mpeg2-Ts Output
PAT Version. Defaults to 0. This function sets the version number of the Program Association Table. Program Number. Defaults to 1. This sets the ID number of a specific program. PMT PID. Defaults to 480. This sets the Packet ID used for the Program Map Table. Lightspeed Live Capture User Guide...
Page 226: Video Stream Details
HEVC H/W HEVC H/W is available only when hosted on a platform having the required hardware. Profile. Main | Main 10 | Main 10 4:2:2 Bit Rate. Specifies the video bit rate (in kbps). Lightspeed Live Capture User Guide...
Page 227: X264
Larger values allow the encoder greater flexibility during encoding. x264 Profile. Baseline | Main | High | High 10 | High 4:2:2 Bit Rate (in kbps). Specifies the target bit rate (512 - 50,000). Lightspeed Live Capture User Guide...
Page 228: Time Code Burn-In Filter
Select the Audio Stream component to display its details on the right. Codec Codec. Specifies which codec to use to encode audio tracks. No other codecs are provided. For configuration details, see appropriate topic following Lightspeed Live Capture User Guide...
Page 229: Aac Codec
Apple ProRes | AVC | Avid DNxHD | Avid DNxHR | DV | DVCPro HD | HEVC | HEVC H/W | IMX | Panasonic AVC-Intra | | Sony XDCAM | Uncompressed | x264 | x265. Audio PCM, 16/20/24-bit, 48Kbps, up to 32 channels; PCM/Dolby E. Lightspeed Live Capture User Guide...
Page 230: Container Settings
The track dimensions are equal to the result of applying the pixel aspect ratio. Lightspeed Live Capture User Guide...
Page 231: Aspect Ratio Mode
Quality. Specifies video quality profile: 422 HQ | 422 SQ | 422 LT | 422 Proxy | 444. Quality. Specifies video quality profile: Baseline | Main | High. Bit Rate (in kbps). Specifies the target bit rate (512 - 50,000). Lightspeed Live Capture User Guide...
Page 232: Avid Dnxhd
Encode Less VBI. When checked, the codec removes the top 32 lines for SD sources that contain VBI data, ignoring more VBI lines in favor of frame size, in both NTSC and PAL. In NTSC (512), the video is 486 lines; in PAL (608), the video is 576 lines. Lightspeed Live Capture User Guide...
Page 233: X264
When checked, this filter rasterizes the current timecode value into each output video frame. X Position. The X position of the top-left of the timecode in the output video frame (range: 0 - 4096 pixels). Lightspeed Live Capture User Guide...
Page 234: Audio Stream Details
Codec. Specifies PCM as the codec to use to encode audio tracks. No other codecs are provided. Channel Configuration Specifies the number and layout of the audio channels: - Mono - Stereo - 4 Channels - 6 Channels - 8 Channels - 10 Channels - 12 Channels - 14 Channels Lightspeed Live Capture User Guide...
Page 235: Quicktime 'Open' Output
QuickTime 'Open' is implemented in the Capture action with Capture ComponentPac 7.0.4 or later. Note: Most Lightspeed Live Capture MXF files containing IMX, XDCAM or AVC-Intra, and all QuickTime Open files, are created in such a way that they can be opened for editing/playing (in Adobe Premiere Pro CC, Telestream Switch and other media applications) while they are still growing during capture.
Page 236: Audio
Capture actions configured with a QuickTime 'Open' container will automatically stop at the container's Default Duration regardless of the requested record duration. The output file created by this action will contain a duration equal to the Default Duration. Lightspeed Live Capture User Guide...
Page 237 - Encoded Pixels - The encoded pixels are displayed intact in this mode. Under this mode the track dimensions are equal to the encoded dimensions. No scaling or transformation takes place. Lightspeed Live Capture User Guide...
Page 238: Aspect Ratio Mode
Quality. Specifies video quality profile: 444 | HQX (10 bit, 220/185 Mbps) | HQ (220/185 Mbps) | SQ (145/120 Mbps) | SQ TR (100 Mbps) | LB (45/36 Mbps). Quality - 444 - HQX (10 bit, 220/185 Mbps) Lightspeed Live Capture User Guide...
Page 239: Avid Dnxhr
0 is transparent. Note: The burned-in Timecode will always represent the actual input timecode being used by the Input Source. Audio Stream Details Select the Audio Stream component to display its details on the right. Lightspeed Live Capture User Guide...
Page 240: Codec (Pcm)
TIFO Output Telestream Intermediary Format (TIFO) is an intermediate media wrapper format designed by Telestream as a uniform, interchangeable file format to ensure interoperability among Telestream's media processing solutions, including Vantage, Lightspeed Live Capture, and Pipeline. TIFO provides a lightweight, low-overhead wrapper that is essence-agnostic, with out-of-band metadata, timecode, and closed caption support.
Page 241: Tifo Format Summary
Note: TIFO files can be opened, as they are being captured, by Telestream's Switch player and Vantage systems at a time when the captured file reports a non-zero file size.
Page 242: Apple Prores
Bit Rate (in kbps). Specifies the target bit rate (512 - 50,000). Quality. Specifies video quality profile: DV 25 Mbps | DVCPRO 25 Mbps | DVCPRO 50 Mbps. DVCPRO HD No user-settable settings are provided. Lightspeed Live Capture User Guide...
Page 243: Hevc
Code-block Width and Height. Specifies the height and width (in pixels) of a code block to process. Packet Progression Order. Specifies the order of packet progression. Decomposition Levels. Specifies the maximum number of discrete wavelet transform levels, or stages, to use (also known as Discrete Wavelet Transformation resolution). Lightspeed Live Capture User Guide...
Page 244: Jpeg2000 Lossy (Comprimato)
- YUV 4:2:2 10 bit - YUV 4:2:2 8 bit Tile Partition Width. Specifies the tile partition width in pixels. Tile Partition Height. Specifies the tile partition height in pixels. Precinct Width and Height. Specifies the precinct size. Lightspeed Live Capture User Guide...
Page 245: Mpeg-2
Indicates how much motion estimation to use when encoding the video stream. A higher value results in higher quality and increases the encode time. The default is 80 and the range is 1 to 100. Profile - High Lightspeed Live Capture User Guide...
Page 246: Panasonic Avc-Intra
- XDCAM HD 35 Mbps VBR - XDCAM HD422 18 Mbps CBR - XDCAM HD422 25 Mbps CBR - XDCAM HD422 35 Mbps CBR - XDCAM HD422 50Mbps CBR - XDCAM EX 35 Mbps VBR Lightspeed Live Capture User Guide...
Page 247: Uncompressed
The following x264 command line parameters are not supported: --fake-interlaced --nal-hrd cbr --profile --video-format --bitrate x265 Profile - Main - Main 10 - Main 10 Intra it Rate (in kbps). Specifies the target bit rate (512 - 50,000). Lightspeed Live Capture User Guide...
Page 248: Time Code Burn-In Filter
Timecode Transparency. The opacity of the timecode. 1.00 is fully opaque, or 100% opacity, 0 is transparent. Note: The burned-in Timecode will always represent the actual input timecode being used by the Input Source. Lightspeed Live Capture User Guide...
Page 249: Audio Stream Details
Proxy TIFO Output Telestream Intermediary Format (TIFO) is an intermediate media wrapper format designed by Telestream as a uniform, interchangeable file format to ensure interoperability among Telestream's media processing solutions, including Vantage, Lightspeed Live Capture, and Pipeline. TIFO provides a lightweight, low-overhead...
Page 250: Tifo Format Summary
Note: TIFO files can be opened as they are being captured, by Telestream's Switch player and Vantage systems at a time when the captured file reports a non-zero file size.
Page 251: Avc
Timecode Transparency. The opacity of the timecode. 1.00 is fully opaque, or 100% opacity, 0 is transparent. Note: The burned-in Timecode will always represent the actual input timecode being used by the Input Source. Lightspeed Live Capture User Guide...
Page 252: Audio Stream Details
Proxy MP4 Output The Proxy MP4 container conforms to IEC 14496-14 MP4 file format standard. Note: MP4 files do not contain a timecode track. Lightspeed Live Capture User Guide...
Page 253: Container Settings
Channel Configuration. Specifies the number and layout of the audio channels. Mono | Stereo | 5.1 (C L R BL BR LFE). Proxy MXF RDD 25 Output The Proxy MXF RDD 25 container conforms to the RDD 25 MXF file format standard. Lightspeed Live Capture User Guide...
Page 254: Container Settings
Appendix B: Containers, Codecs, and Vantage Actions Proxy MXF RDD 25 Output Note: RDD 25 proxy files can be opened in Telestream's Switch player, and other applications, as they are being captured and are growing in size. Requires Switch 4.0 or later.
Page 255: Aac
Appendix B: Containers, Codecs, and Vantage Actions - Mono - Stereo - 5.1 (C L R BL BR LFE) Lightspeed Live Capture User Guide...
Page 256: Tape Action Output Containers
Note: Most Lightspeed Live Tape Capture MXF files containing IMX, XDCAM or AVC- Intra are created in such a way that they can be opened for editing/playing (in Adobe Premiere Pro CC, Telestream Switch and other media applications) while they are still growing during capture. Check with your edit/player application software documentation for further details on supported formats.
Page 257: Timecode
SMPTE ST 381-1:2005, Television-Material Exchange Format (MXF) - Mapping MPEG Streams into the MXF Generic Container SMPTE RDD 25:2014, AVC MXF Proxies Note: The resulting MXF (OP-1a) file can contain VANC data (SMPTE 436M) if present within the incoming SDI stream. Lightspeed Live Capture User Guide...
Page 258: Output Settings
Mpeg Picture Element. When checked, specifies that MPEG picture elements should be used for Avid and Adobe Premiere Pro compatibility. Telestream Index. When checked, a proprietary, sidecar Telestream Index file is created for use in specific customer workflows. For details, please contact Customer Service.
Page 259: Avid Dnxhd
Tile-Part Length Markers. When checked, specifies that Tile Length Markers will be used. End of Packet Header Markers. When checked, EPH marker segments are generated. Start of Packet Markers. When checked, SOP marker segments are generated. Lightspeed Live Capture User Guide...
Page 260: Jpeg2000 Lossy (Comprimato)
Decomposition Levels. Specifies the maximum number of discrete wavelet transform levels, or stages, to use (also known as Discrete Wavelet Transformation resolution). Tile-Part Length Markers. When checked, specifies that Tile Length Markers will be used. Lightspeed Live Capture User Guide...
Page 261: Panasonic Avc-Intra
Command Line. Enables you to optionally configure the codec using x264 command line syntax. For setting specific x264 parameters, you can enter x264 CLI commands (separated by spaces) to execute them. For best results, be sure to use long form. Lightspeed Live Capture User Guide...
Page 262: Time Code Burn-In Filter
Channel Map. Allows re-mapping of the incoming source audio channels to the captured file output channels. Channels are numbered from 1 to 32. Specify the number of the audio input channel to use for each output channel. Lightspeed Live Capture User Guide...
Page 263: Mpeg2-Ts Output
PMT Rate. (Default 10.0 tables per second.) Specifies the repetition rate of the Program Map Table in the output stream. Each program listed in the PAT has a PMT (with PID) containing information about the program. Lightspeed Live Capture User Guide...
Page 264: Video Stream Details
IPTV transcoder action or in other actions that utilize Manzanita configuration files. Video Stream Details Select the Video Stream component to display its options on the right. Codec Generate Config File. Specifies which codec to use to encode the output file. Lightspeed Live Capture User Guide...
Page 265: Mpeg-2 Codec
(separated by spaces) to execute them. For best results, be sure to use long form. Time Code Burn-in Filter Check to implement the Time Code Burn-in Filter, which imprints the media timecode into each output video frame. Lightspeed Live Capture User Guide...
Page 266: Audio Stream Details
Output Channel (1... 32). When checked, enables re-mapping of the incoming source audio channels to the captured file output channels. Channels are numbered from 1 to 32. Specify the number of the audio input channel to use for each output channel. Lightspeed Live Capture User Guide...
Page 267: Quicktime Output
Color Space. Set the QuickTime file color space. Options include: - Do not specify - XYZ with SMPTE 428-1 (DCDM) Transfer Characteristics - ITU-R Recommendation BT.601 with SMPTE-C Color Primaries (NTSC) - ITU-R Recommendation BT.601 with SMPTE-C Color Primaries (PAL) - ITU-R Recommendation BT.2020 Lightspeed Live Capture User Guide...
Page 268: Aspect Ratio Mode
Specify the crop settings for Left, Right, Top, and Bottom pixels to apply to the Clean Aperture. Options include: - Not Enabled - Turns off the crop settings for Clean Aperture. - Specify Inset - Enables the ability to specify the Clean Aperture crop settings. Lightspeed Live Capture User Guide...
Page 269: Video Stream Details
Bit Rate (in kbps) - Between 512 and 50,000 Avid DNxHD Quality - 444 - HQX (10 bit) - HQ (220/185 Mbps) - SQ (145/120 Mbps) - SQ TR (100/100 Mbps) - LB (45/36 Mbps) Lightspeed Live Capture User Guide...
Page 270: Avid Dnxhr
HEVC Bit Rate (in kbps) - Between 512 and 50,000 HEVC (H/W) Profile - Main - Main 10 - Main 10 4:2:2 Bit Rate (in kbps) - Between 512 and 50,000 Quality - 30 Mbps Lightspeed Live Capture User Guide...
Page 271: Panasonic Avc-Intra
PAL. In NTSC (512), the video is 486 lines; in PAL (608), the video is 576 lines. x264 Profile - Baseline - Main - High - High 10 - High 4:2:2 Bit Rate (in kbps) - Between 512 and 50,000 Lightspeed Live Capture User Guide...
Page 272: X265
The following x265 command line parameters are not supported: --fake-interlaced --nal-hrd cbr --profile --video-format --bitrate Time Code Burn-in Filter Select to have the media timecode burned into the output video. - X Position: Burn timecode in at 0-4096 pixels from upper left corner. Lightspeed Live Capture User Guide...
Page 273: Audio Stream Details
Bit Depth. Select the desired audio bit depth. 16, 20, or 24 bit. Force One Track Per Channel. Select to make multiple mono tracks instead of a single multi-channel track. QuickTime audio channel Assignment metadata will be set to 'Mono' . Lightspeed Live Capture User Guide...
Page 274: Channel Map
TIFO Output Telestream Intermediary Format (TIFO) is an intermediate media wrapper format designed by Telestream as a uniform, interchangeable file format to ensure inter- operability among Telestream's media processing solutions, including Vantage, Lightspeed Live Capture, and Pipeline. TIFO provides a lightweight, low-overhead wrapper that is essence-agnostic, with out-of-band metadata, timecode, and closed caption support.
Page 275: Aspect Ratio Mode
- 422 SQ - 422 LT - 422 Proxy - 444 Profile - Baseline - Main - High Bit Rate (in kbps) - Between 512 and 50,000 Avid DNxHD Quality - 444 - HQX (10 bit) Lightspeed Live Capture User Guide...
Page 276: Avid Dnxhr
HEVC H/W HEVC H/W is available only when hosted on a platform having the required hardware. Profile - Main - Main 10 - Main 10 4:2:2 Bit Rate. Specifies the video bit rate (in kbps). Lightspeed Live Capture User Guide...
Page 277: Imx
Start of Packet Markers. When checked, SOP marker segments are generated. CUDA Memory Limit. Specifies the CUDA memory limit in MB. Note: When the CUDA Memory Limit is set to 0, GPU processing is disabled. CUDA Tile Limit. Specifies the CUDA tile limit. Lightspeed Live Capture User Guide...
Page 278: Jpeg2000 Lossy (Comprimato)
Tile-Part Length Markers. When checked, specifies that Tile Length Markers will be used. End of Packet Header Markers. When checked, EPH marker segments are generated. Start of Packet Markers. When checked, SOP marker segments are generated. CUDA Memory Limit. Specifies the CUDA memory limit in MB. Lightspeed Live Capture User Guide...
Page 279: Mpeg-2
The default is 80 and the range is 1 to 100. Profile - High - Main - 4:2:2 Level - High - High 1440 - Main Lightspeed Live Capture User Guide...
Page 280: Panasonic Avc-Intra
- XDCAM HD 35 Mbps VBR - XDCAM HD422 18 Mbps CBR - XDCAM HD422 25 Mbps CBR - XDCAM HD422 35 Mbps CBR - XDCAM HD422 50 Mbps CBR - XDCAM EX 35 Mbps VBR Lightspeed Live Capture User Guide...
Page 281: Uncompressed
The following x264 command line parameters are not supported: --fake-interlaced --nal-hrd cbr --profile --video-format --bitrate x265 Profile - Main - Main 10 - Main 10 Intra Bit Rate (in kbps) - Between 512 and 50,000 Lightspeed Live Capture User Guide...
Page 282: Hevc (H/W)
- Timecode Transparency: The opacity of the timecode characters from 0.00 to 1.00 (0 to 100%). Zero is fully transparent, and 1.00 (100%) is fully opaque. Audio Stream Details Select the Audio Stream component to display its details on the right. Lightspeed Live Capture User Guide...
Page 283: Codec
Proxy TIFO Output Telestream Intermediary Format (TIFO) is an intermediate media wrapper format designed by Telestream as a uniform, interchangeable file format to ensure interoperability among Telestream's media processing solutions, including Vantage, Lightspeed Live Capture, and Pipeline. TIFO provides a lightweight, low-overhead...
Page 284: Tifo Format Summary
Note: TIFO files can be opened as they are being captured, by Telestream's Switch player and Vantage systems at a time when the captured file reports a non-zero file size.
Page 285: Avc
Timecode Transparency. The opacity of the timecode. 1.00 is fully opaque, or 100% opacity, 0 is transparent. Note: The burned-in Timecode will always represent the actual input timecode being used by the Input Source. Lightspeed Live Capture User Guide...
Page 286: Audio Stream Details
Proxy MP4 Output The Proxy MP4 output container encodes media and saves it as an MP4 file. The MP4 container conforms to IEC 14496-14 MP4 file format standard. MP4 files do not contain a timecode track. Lightspeed Live Capture User Guide...
Page 287: Format Summary
Pixel Aspect Ratio. When checked, specifies the selected pixel aspect ratio. Video Stream Details Select the Video Stream component to display its details on the right. Codec (AVC) Codec. Specifies AVC. No other codecs provided. Lightspeed Live Capture User Guide...
Page 288: Time Code Burn-In Filter
Specifies that the audio is encoded using the PCM codec. No other codecs are available. General Channel Configuration. Specifies the number and layout of the audio channels. NOTE: 32 channels are not supported from SDI sources. Lightspeed Live Capture User Guide...
Page 289: Channel Map
The Proxy MXF RDD 25 container conforms to the RDD 25 MXF file format standard. Note: RDD 25 proxy files can be opened in Telestream's Switch player, and other applications, as they are being captured and are growing in size. Requires Switch 4.0 or later.
Page 290: Audio Stream Details
You can assign the value to the variable in a previous action in the workflow or use the variable's default value. Click Browse to select the variable or create a new one. Container Settings The Poster Frame Container creates a small bitmap image file. Lightspeed Live Capture User Guide...
Page 291 Appendix B: Containers, Codecs, and Vantage Actions File Extension. Specifies the extension of the file name: bmp. No other selections are available. Lightspeed Live Capture User Guide...
Page 292: Primary Output - Video Codecs
■ Uncompressed (10-bit) ■ x264 ■ x265/HEVC ■ XAVC Apple ProRes Supported Container - QuickTime - QuickTime ‘Open’ - TIFO Quality - 422 HQ - 422 SQ - 422 LT - 422 Proxy - 444 Lightspeed Live Capture User Guide...
Page 293: Avc
- HQX (10 bit, 220/185 Mbps) - HQ (220/185 Mbps) - HQ TR (145/120 Mbps) - SQ (145/120 Mbps) - SQ TR (100 Mbps) - LB (45/36 Mbps) Avid DNxHR Supported Container - MXF OP1a - QuickTime - TIFO Lightspeed Live Capture User Guide...
Page 294: Dv/Dvcpro
- DVCPRO 50 Mbps DVCPRO HD Supported Container - MXF OP1a - QuickTime - TIFO HEVC Supported Container - QuickTime - TIFO Bit Rate (in kbps) - Between 512 and 50,000 HEVC (H/W) Profile - Main Lightspeed Live Capture User Guide...
Page 295: Imx
JPEG video. It offers resolution, color, quality and position progression scalability, and also supports 4:2:2 and 4:4:4 chroma subsampling methods. General Pixel Format. Specifies the color space, chroma subsampling, and bit depth to use for encoding. - RGB 4:4:4 8 bit or 10 bit Lightspeed Live Capture User Guide...
Page 296: Jpeg2000 Lossy (Comprimato)
JPEG 2000 offers higher compression ratios over standard JPEG video. It offers resolution, color, quality and position progression scalability, and also supports 4:2:2 and 4:4:4 chroma subsampling methods. Lightspeed Live Capture User Guide...
Page 297 CUDA Memory Limit. Specifies the CUDA memory limit in MB. Note: When the CUDA Memory Limit is set to 0, GPU processing is disabled. CUDA Tile Limit. Specifies the CUDA tile limit. Encoder Queue Size. Specifies the encoder queue size. Lightspeed Live Capture User Guide...
Page 298: Mpeg-2
The default is 80 and the range is 1 to 100. Profile Adjusts MPEG profile: - High - Main - 4:4:2 Level Adjusts MPEG level: - High - High 1440 - Main Chroma Adjusts chroma subsampling: - 4:2:0 Lightspeed Live Capture User Guide...
Page 299: Panasonic Avc-Intra
Panasonic AVC-Intra Supported Container - MXF OP1a - QuickTime - TIFO Quality - 50 Mbps 4:2:0 - 100 Mbps 4:2:2 - 200 Mbps 4:2:2 Panasonic AVC-Ultra Supported Container - MXF OP1a - TIFO Lightspeed Live Capture User Guide...
Page 300: Sony Xdcam
- XDCAM HD422 50 Mbps CBR - XDCAM EX 35 Mbps VBR Uncompressed (10-bit) Supported Container - MXF OP1a - QuickTime - TIFO x264 Supported Container - MPEG2-TS - MXF OP1a - QuickTime - TIFO Profile - Baseline Lightspeed Live Capture User Guide...
Page 301: X265/Hevc
Bit Rate (in kbps) - Between 512 and 300,000 Command Line (option) Configure the compressor using x265 command line syntax. For setting specific x265 parameters, you can enter x265 CLI commands (separated by spaces) to execute them. Lightspeed Live Capture User Guide...
Page 302: Xavc
The following x265 command line parameters are not supported: --fake-interlaced --nal-hrd cbr --profile --video-format --bitrate XAVC Supported Container - MXF OP1a - TIFO Quality - Class 100 Mbps 4:2:2 - Class 300 Mbps 4:2:2 - Class 480 Mbps 4:2:2 Lightspeed Live Capture User Guide...
Page 303: Primary Output - Audio Codec
Select the desired audio bit depth. - 16-bit - 20-bit - 24-bit Force One Track Per Channel Select to make multiple mono tracks instead of a single multi-channel track. QuickTime audio channel Assignment metadata will be set to 'Mono' . Lightspeed Live Capture User Guide...
Page 304: Secondary Output - Video Codecs
Bit Rate (in kbps) - Between 512 and 10,000 Secondary Output - Audio Codecs The following Secondary Output audio codecs are available when configuring the Capture or Tape actions. Supported Container - Proxy MXF OP1a RDD25 Lightspeed Live Capture User Guide...
Page 305: Pcm
Select the desired audio bit depth. - 16-bit - 20-bit - 24-bit Force One Track Per Channel Select to make multiple mono tracks instead of a single multi-channel track. QuickTime audio channel Assignment metadata will be set to 'Mono' . Lightspeed Live Capture User Guide...
Page 306 Allows re-mapping of the incoming source audio channels to the captured file output channels. Channels are numbered from 1 to 32. Specify the number of the audio input channel to use for each output channel. Lightspeed Live Capture User Guide...
Page 307: Vantage Actions
■ Transport Actions ■ VidChecker Action Live Actions The Live Service operates within Vantage on a Lightspeed Live Capture Server and includes the Capture and Tape actions that capture files from live or tape sources. ■ Capture Action ■ Tape Action Capture Action A Capture action is an origin action.
Page 308: Cloud Flip Action
Service and the Telestream Cloud API to the Telestream Cloud for transcoding. To use the Cloud Flip action you must have a Telestream Cloud account and enter the account credentials in the Vantage Management Console Settings to enable Vantage to access the account.
Page 309: Metadata Actions
Items > Style Sheets. This action is Open Workflow capable. Transcode Actions The Transcode Service is the Vantage component that executes the Flip, Flip64, Split, and Stitch actions—transforming media from one format to another. ■ Flip Action Lightspeed Live Capture User Guide...
Page 310: Flip Action
A Flip action is executed by the Transcode Service, and implements the specified codec, which is used to transcode decoded digital baseband media into another media encoding format. The Telestream Media Transcode and Analysis Engine performs the transcode on behalf of Vantage. The Flip action has an Export command, which allows you to save the configured Flip action as an XML file, for use in SDK applications.
Page 311: Flip64
The Stitch action is typically located at the nexus of all preceding, parallel transcoding actions, where it passes the reference file to a Flip64, Tempo, or Conform action where the final, reconstituted media file is generated. Lightspeed Live Capture User Guide...
Page 312: Transport Actions
It performs this task by copying the file to the destination, then deleting the source. The copy first, delete last process insures that the move completes normally before deleting the source file. Move actions can be executed on any action state. Lightspeed Live Capture User Guide...
Page 313: Common Actions
For example, if one branch is for HD, it will start with a Decide action that will set the state to Success for HD content, and ignore otherwise; if another branch is for everything else, it will start with a Decide action that performs the opposite behavior. Lightspeed Live Capture User Guide...
Page 314: Forward Action
The Synchronize action is used in workflows where multiple actions connect to multiple subsequent actions. Synchronize provides a common connection point, where all upstream actions need to be connected to all downstream actions. Lightspeed Live Capture User Guide...
Page 315: Communicate Actions
Capture license. VidChecker Action A VidChecker action is an optional, licensed feature in Vantage. It uses the VidChecker Service to enable Vantage workflows to utilize and interact with various QC tests provided by the VidChecker software. Lightspeed Live Capture User Guide...
Page 316 Appendix B: Containers, Codecs, and Vantage Actions Vantage Actions Lightspeed Live Capture User Guide...
Page 317: Appendix C: Rs-422 Vtr Interface
Appendix C: RS-422 VTR Interface This appendix provides information about installing and using the optional 4-Port RS- 422 VTR Interface Kit. These instructions apply only to those using RS-422 to control a VTR using Lightspeed Tape Capture. Also included are a description and operational details about the Video Disk Communications Protocol (VDCP) implementation which uses the RS-422 interface.
Page 318: Rs-422 Interface Kit Assembly And Installation
Four Female DB9-to-RJ45 blue adapters to connect to the RS-422 Interface Box. – Four Male DB9-to-RJ45 gray adapters to connect to a VTR. • Rack Mount Tray that fits in a standard 1 RU rack space and can hold up to two RS- 422 Interface Boxes. Lightspeed Live Capture User Guide...
Page 319: User Supplied Cable
A user-supplied cable is required to connect a VTR to the RS-422 Interface Box, by plugging into the RJ45 (Ethernet style) jack in each DB9-to-RJ45 adapter. A Cat5E (Cat5 Enhanced) cable is recommended; the standard pin-to-pin type (not crossover). The maximum cable length is 100 meters (328 feet). Lightspeed Live Capture User Guide...
Page 320: Installing The Usb Cable Retainer On The Lightspeed Live Server
3. Slide the Cable Retainer onto the newly installed screw, and secure it with the lock-washer and 6-32 1/4” nut. Tighten firmly using a 1/4” nut driver. 4. Install the Lightspeed Live server into the rack, if not already installed. Lightspeed Live Capture User Guide...
Page 321: Assembling & Installing The Rs-422 Interface Box And Rack Mount Tray
3. Insert the USB cable into the rear of the RS-422 Interface Box. Fasten the USB cable to the tray by inserting the tie wrap through the raised anchor tab and tighten it to secure the cable. Lightspeed Live Capture User Guide...
Page 322 USB Cable Retainer and slide the arm away from the rear of the Lightspeed Live server. 7. Insert the USB cable into the top port of the server. Lightspeed Live Capture User Guide...
Page 323 Channel 1 (CH1) RS-422 serial port on the interface box. Attach additional Female DB9-to-RJ45 blue adapters to other channels if you will connect more than one VTR. Proceed to the next step of Connecting a VTR to the Lightspeed Live Server. Lightspeed Live Capture User Guide...
Page 324: Connecting A Vtr To The Lightspeed Live Server
6. Connect the other end of the SDI cable to the SDI Input terminal on the Lightspeed Live server that corresponds to the same terminal number you connected to on the RS-422 Interface Box. 7. Power up the VTR and switch it into the proper Remote mode for RS-422 control. Lightspeed Live Capture User Guide...
Page 325: Creating The Tape Capture Workflow
Activating the Tape Action Workflow chapter for detailed instructions. RS-422 Connector Pin Assignments Use the pin assignment diagram below if you want to create custom RS-422 cables for your Lightspeed Live Capture’s USB to RS-422 Interface Box. Lightspeed Live Capture User Guide...
Page 326: Configuring An Rs-422 Com Port's Latency Time
1 msec. Follow these steps to set each USB Serial Port’s Latency Timer value to 1 msec: 1. Open Device Manager on the Lightspeed Live Capture server. 2. Click on Ports > USB Serial Port.
Page 327: Video Disk Communications Protocol (Vdcp)
RS-422 Connector Pin Assignments covered previously in this chapter. Communications Signal The VDCP communications signals follow these standards: • Asynchronous bit serial, word serial • EIA RS-422A • Full duplex • 38.4 kb/s transfer rate Lightspeed Live Capture User Guide...
Page 328: Configuring Vdcp Control
1. In the Vantage Management Console, select Capture Inventory in the left panel. 2. Select a Capture Channel (source) in the Capture Inventory panel. 3. In the Configuration tab at the bottom of the Capture Inventory panel, check (enable) the VDCP check box. Lightspeed Live Capture User Guide...
Page 329 Set the VDCP Port number to match the device port where you connected the automation machine. – Check the Set Base Name with VDCP Cue Command, if desired. 5. Activate the Capture workflow, and test the interface by sending each of the commands listed in the next topic. Lightspeed Live Capture User Guide...
Page 330: Using The Vdcp Interface
You can use the following commands with the VDCP interface: Function VDCP Command Result Send base name Cue with data signal Assigns output file name Crash Record Record signal Channel immediately begins recording Stop Record Stop signal Channel immediately stops recording Lightspeed Live Capture User Guide...
Page 331: Appendix D: Live Capture Classic Web Application
Appendix D: Live Capture Classic Web Application This appendix describes the Lightspeed Live Capture Classic web application, how to access it and how to use it. Note: The Live Capture Classic web application is a legacy capture control that has...
Page 332: Accessing The Live Capture Classic Web App
Create a Separate Account for Each User Multiple users accessing the Lightspeed Live Capture Classic web application should each have their own unique account, and not use the administrator login credentials. This allows the administrator to provide appropriate access parameters for each user, and helps improve system efficiency by keeping resource usage lower.
Page 333: Multiple User Access To The Capture Or Tape Web Apps
Domain in the Title panel. Click OK to log out, then click Search in the dialog that appears, select the correct domain, and click OK. Enter the user name and password to log into the selected domain. Lightspeed Live Capture User Guide...
Page 334: Selecting A Channel Group
Vantage Web Application. Select the Channel Group you want to use and click OK. The Lightspeed Live Capture Classic web application opens in your browser. Creating a New Channel Group You can create, configure, and edit Channel Groups in the Vantage Management Console.
Page 335: Live Capture Classic Web App Overview
Appendix D: Live Capture Classic Web Application Live Capture Classic Web App Overview Live Capture Classic Web App Overview Lightspeed Live Capture Classic is a web application, where you can: • Select Live Capture channels and channel groups • View information and status about each capture channel •...
Page 336: Using The Live Capture Classic Web App
Capture Classic web app. The Live Capture Classic trigger settings that are read-only in the web application are DAI, Schedule, and Web Service triggers. The start settings are selected in the Trigger section of the Capture action. See Trigger Settings. Lightspeed Live Capture User Guide...
Page 337: Channel View Panel
Workflow Name Basic Information and Control Display Hover over a channel to see basic information about that channel, and to access the Record and Stop buttons for that channel: Source Input Parameters Source Input Workflow Name Lightspeed Live Capture User Guide...
Page 338: Live Capture Classic Menu Panel
Time-Shift buffer are added to the start of the recorded file (going back in time to included frames from the past). All selected channels must have the same timecode source in order to be synchronized to the exact same frame during the recording operation. Lightspeed Live Capture User Guide...
Page 339: Configuration
Channel Order is selected. When the Live Capture Classic web application is closed and re-opened the saved display order is recalled. Help The Help options provide information about using Lightspeed Live Capture Classic: • About—Displays the version number of Live Capture Classic.
Page 340: Manual Mode Controls And Indicators
Note: For the Timeline Slider, Status Bar, and Time-Shift buffer to be available and active, the Time-Shift option must be checked in the Program panel of the Capture action. See Program in the Creating Capture Workflows chapter for more information. Lightspeed Live Capture User Guide...
Page 341 Stop timecode, or after an explicit Duration. Use the Record Duration option to select whether to stop on a timecode or for a specific duration. Select the down-arrow on the Record button and select Advanced Record to open the Advanced Record dialog. Lightspeed Live Capture User Guide...
Page 342 Record—Click Record to save your settings and queue up the capture job for recording. Note: File durations are restricted to a maximum of 9 hours. Recording will stop automatically even when the Duration value or Stop Timecode creates a capture request longer than 9 hours. Lightspeed Live Capture User Guide...
Page 343 In takes effect at the timecode selected on the Timeline. This allows you to go back in time and select a timecode contained in the Time-Shift buffer. Use the frame-step forward or backward buttons to select an exact timecode. Lightspeed Live Capture User Guide...
Page 344 Timeline Slider cannot be moved back in time until the buffer has loaded. For the Timeline Slider to be available and active, the Time-Shift option must be checked in the Program panel of the Capture action. See Program in the Creating Capture Workflows chapter for more information. Lightspeed Live Capture User Guide...
Page 345: Indicators And Information In The Channel Control Dialog
When a Filler IS enabled in the workflow, Paused indicates that frames from the Filler file are being added to the file. To return to Recording and start writing source frames into the file press In. Lightspeed Live Capture User Guide...
Page 346 Web API Stop command, is reached. When this frame or timecode is reached the Present Capture state will display Ready. Note: When in a pending state the Record button is inactive. Lightspeed Live Capture User Guide...
Page 347 Source Name and Input ID—Displays the name of the Capture source as described in the Capture Inventory. Video Information—The frame rate, resolution, and bit-depth of the video source. Elapsed Time—Displays the elapsed time since recording began, in HH:MM:SS format. Lightspeed Live Capture User Guide...
Page 348: Schedule And Web Service Controls And Indicators
Trigger, and see the Lightspeed Live Capture Web API Reference on the Telestream web site. Due to the unique nature of a Schedule or Web Service trigger, more than one job may be queued up for processing. The status information displayed for these triggers will vary depending on whether a single job is queued or multiple jobs are queued.
Page 349 Capture jobs that are in the queue, and to view information about their current status. Using the Vantage Job Status Views for more information about accessing and using the Job Status Views application. Lightspeed Live Capture User Guide...
Page 350 When actively recording you can click on the Record Path link to open a dialog that provides the option to copy the link of the record path location. This path can be copied and pasted into Windows Explorer to access the output file: Lightspeed Live Capture User Guide...
