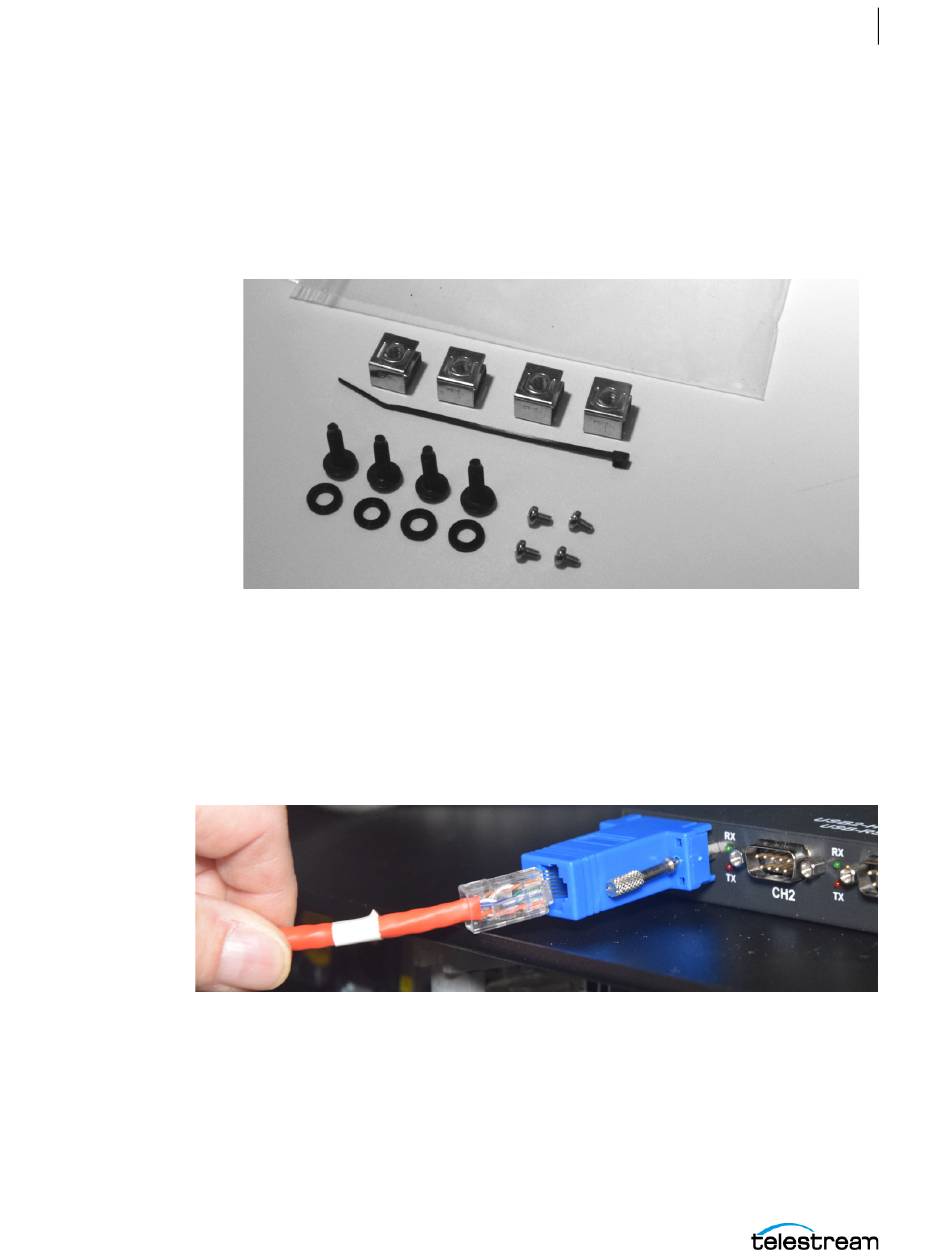

Rack Mount Tray mounting hardware kit (see image below), which includes:
–
Four 10-32 rack screws and washers.
–
Four G-Type Cage Nuts.
–
Four Stainless Steel Phillips rounded-head M3 x 0.5 mm-thread x 5 mm-long
screws to mount the RS-422 interface to the tray.
–
One small tie-wrap to secure the USB cable to the tray.
The RS-422 Interface Box is powered by the Lightspeed Live server's USB port, so no
additional power supply is required. Drivers for the USB to RS-422 Interface Box are
included in the software package and will be installed as one of the steps below.

User Supplied Cable

A user-supplied cable is required to connect a VTR to the RS-422 Interface Box, by
plugging into the RJ45 (Ethernet style) jack in each DB9-to-RJ45 adapter.
A Cat5E (Cat5 Enhanced) cable is recommended; the standard pin-to-pin type (not
crossover). The maximum cable length is 100 meters (328 feet).
