204 Calculating Live Capture Resources
Lightspeed Live Capture Resource Calculator

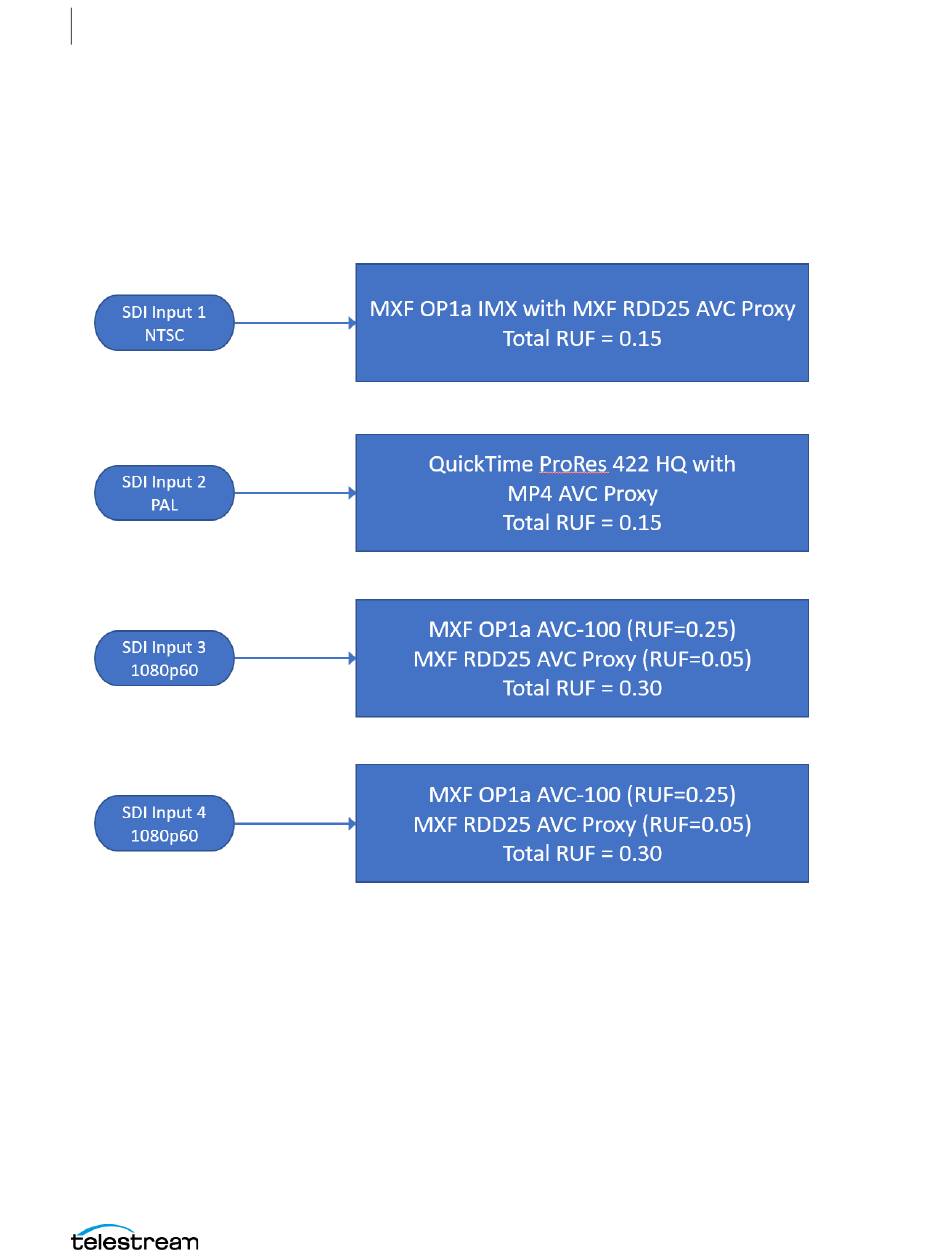

Example 2—Uses a Total of 0.90 RUF
Example 2 shows two (2) SDI-SD inputs and two (2) SDI-HD inputs. SDI 1 and SDI 2 are
standard definition creating IMX and ProRes with Proxy files respectively, while SDI-3
and SDI-4 are 1080p60 creating AVC-Intra and Proxy files. In this example, the total of
the Resource Use Factors from all Live Capture workflows equals 0.90 RUF.
Lightspeed Live Capture User Guide
