Drives
The top right-most drive bay houses the SSD/SATA Windows OS drive, and the drive
beneath it is an available SATA drive bay. These drives have their own controller,
separate from the storage drives.
To the left of the OS drive are 8 SAS media storage drive slots containing the 4 standard
and 4 optional media drives. These drives are configured for RAID 5 and have their own
controller separate from the OS drive.

Rear Panel

These are the rear panel ports and connectors:
•
2 redundant AC power connectors—connect to a 10-amp or greater AC source
•
4 10GbT Ethernet LAN ports—connect as required to Ethernet LAN
•
2 USB 3.0 ports—connect as required to keyboard, mouse, or other serial device
•
1 IPMI Ethernet dedicated port that should not used for any other purpose
•
1 VGA monitor port
•
1 COM control port (not used)
•
4 3G-SDI inputs
•
1 analog LTC input

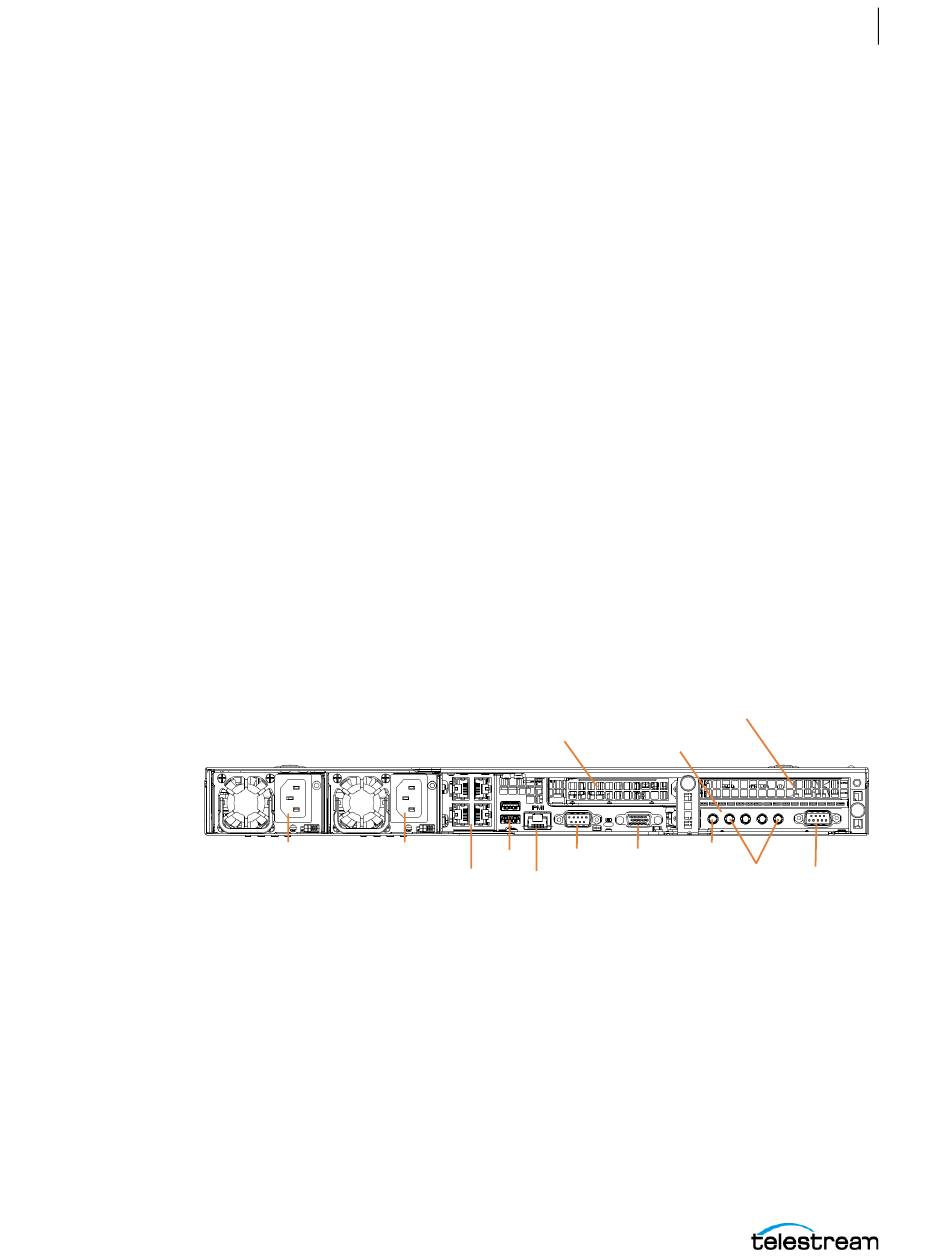

Lightspeed Live server Rear Panel:
Additional PCI cards can be optionally installed by Telestream in the PCI expansion
slots.

Video Input Connections

The Lightspeed Live server includes an installed standard SDI input card (included) or
an optional HEVC SDI input card in the lower right PCI slot. For a complete list of video
formats, see the
Lightspeed Live Capture User Guide
1 PCI half height x8
expansion slot for
Telestream approved
cards only
AC Power Connectors
4 Onboard 10GB
Ethernet LAN ports
SDI Input Cards.
Introducing Lightspeed Live Stream and Capture
Lightspeed Live Server Hardware Specifications and Components
SDI input Card
2 USB COM VGA
IPMI port
(dedicated)
GPU Card
LTC
Unused
4 mini-BNC
SDI Inputs
