Channel Previews Panel

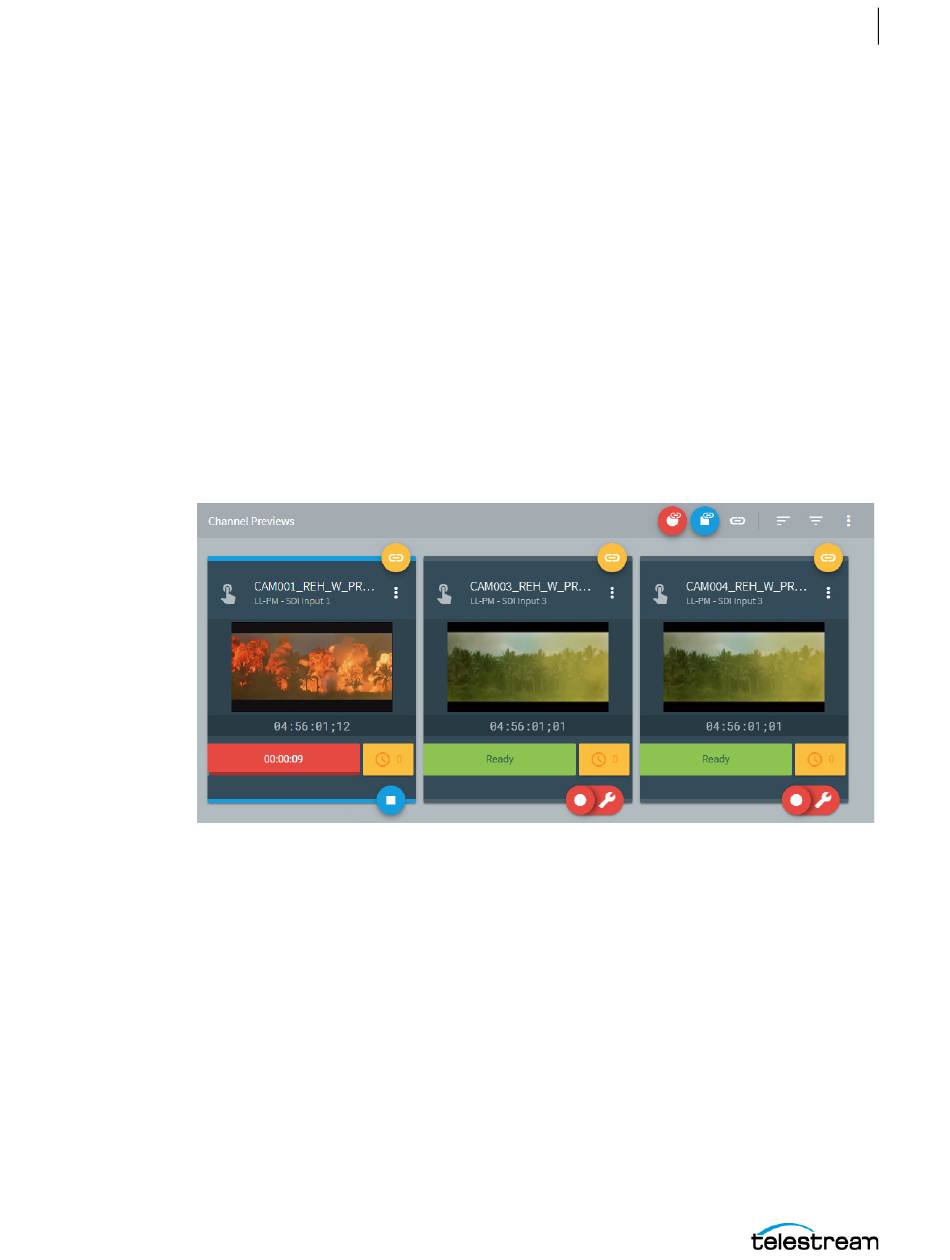

When the Channels option is selected, the Channel Previews panel displays a
thumbnail of video from each of the available workflow channel cards.
•
The selected channel card, indicated by blue bars on the top and bottom of the
channel card, plays in the Display and Information panel to the right.
•
Selections and menus along the top control channel ganging (triggering multiple
records at once but not necessarily on all channels), channel filtering, and recording
settings.
•
Each channel shows a channel name and displays a thumbnail of incoming video.
•
Each channel shows a gray trigger type, a yellow gang/ungang button, a red and
green Recording or Ready (Stopped) bar, and a yellow queued job bar.
•
A vertical ellipsis button provides access to menus for each channel.
•
The bottom right corner includes red Record and Record Options buttons for one-
button recording and easy access to recording settings.
Channel Previews panel controls are described in detail in the following topics:
■
Channel Previews Controls
■
Configuring the Custom Ganged Recording Defaults
■
Channel Controls
■
Channel Options
■
Channel Recording Information
■
Display and Information Panel
■
Loss of Signal Behavior
■
Limited Bandwidth Behavior
