4 Data Modules and Asynchronous Data Units

Asynchronous Data Units (ADUs)

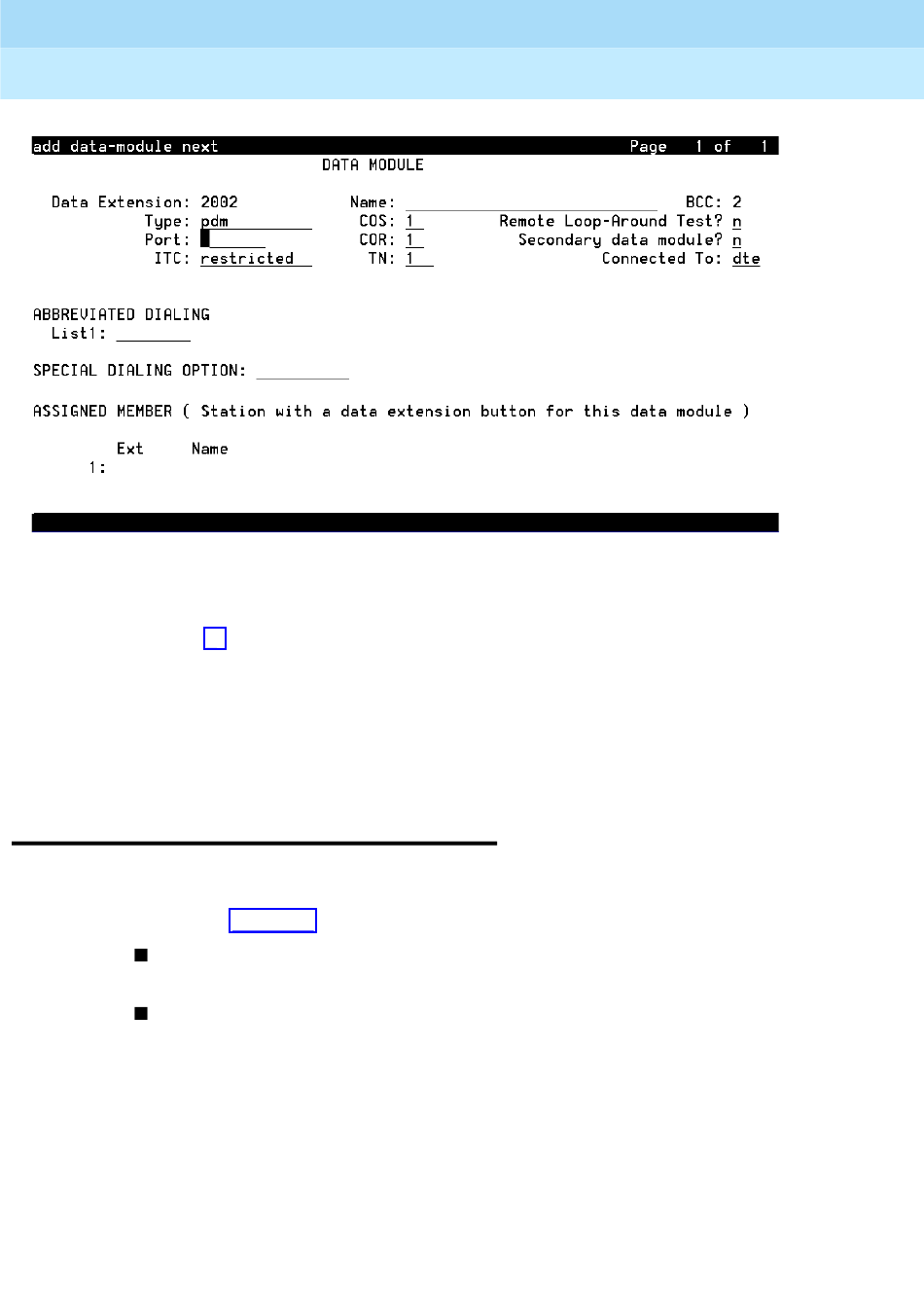

Screen 2. Typical data-module form
4. In the Port field, enter the seven-digit port address that you wrote down in
step 2, above.
5. If you installed a telephone on the data module, enter the extension
number and station name for this telephone in the ASSIGNED MEMBER
part of the form.
6. Press the
Asynchronous Data Units (ADUs)
ADUs are used with Data Line circuit packs to connect peripherals, such as
printers, data terminals, fax equipment, and call-detail recording equipment to
the DEFINITY.
Add a female-to-male EIA-232 cable (shown) to make a Z3A1 ADU
assembly.
Add a female-to-female EIA-232 cable (not shown) to make a Z3A4 ADU
assembly.
key to close the form and save the changes.
F3
Figure 19 shows a typical Z3A2 ADU assembly (without a cable).
