9 DS1/T1 CPE Loopback Jack
Loopback Testing Without a Smart Jack
1. Span section 1
2. Span section 2
3. 120A2 (or later) ICSU
4. RJ-48 to network interface (up to 1000 ft [305 m])

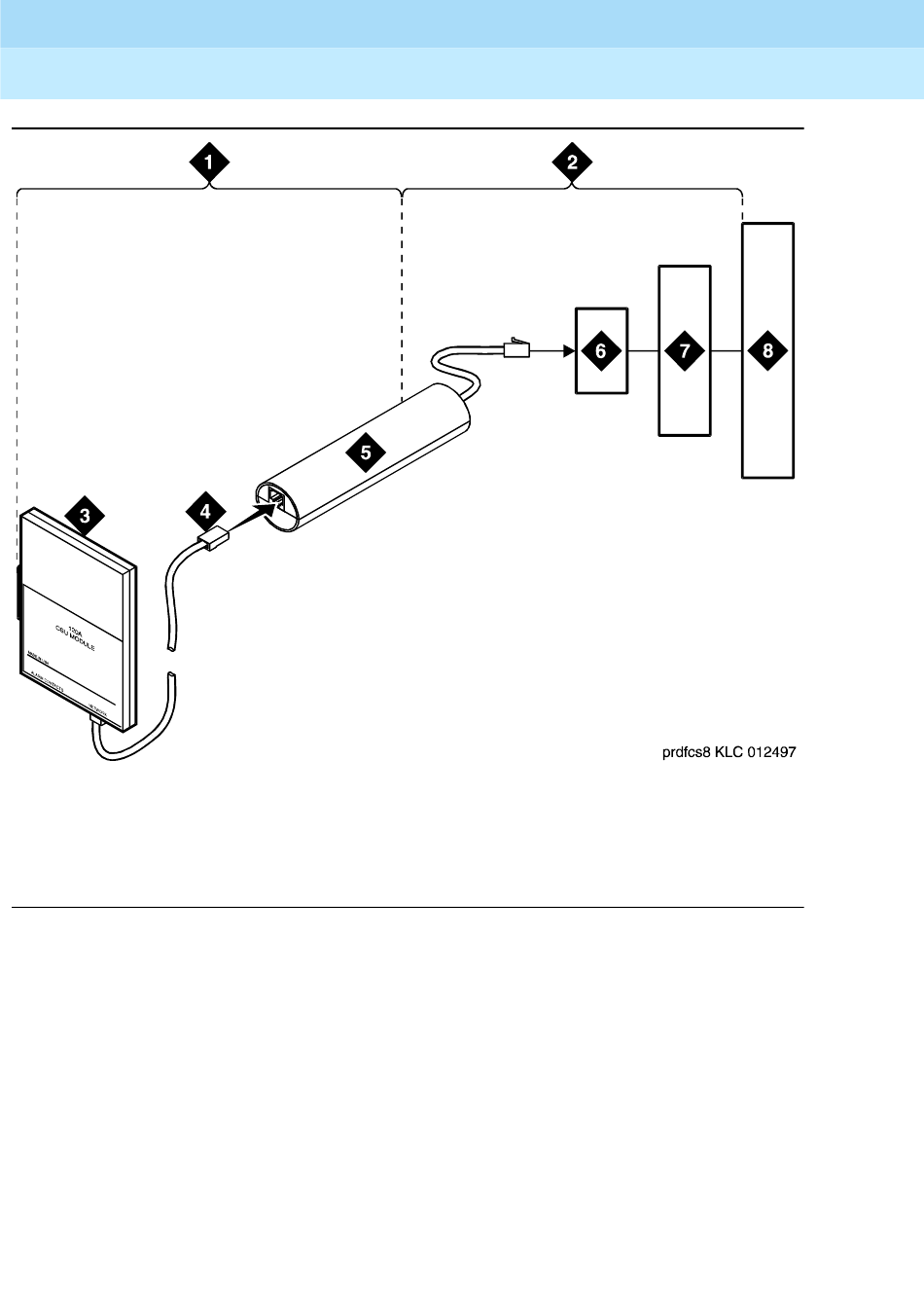

Figure 37. Network Interface at "Dumb" Block
5. Loopback jack
6. Dumb block (demarcation point)
7. Interface termination or fiber
multiplexer (MUX)
8. Central office
