10 ISDN Converters and Adapters
Converters for Multicarrier Cabinets
8
(2B+D)
1
(2B+D)
1. TN464F DS1 circuit pack and PR-to-BRI
converter circuit pack
2. DEFINITY administration PC
3. RS-232 cable to front of converter circuit
pack
4. 888B 75-ohm coaxial converter
5. Coaxial connection to 2-Mbps facility

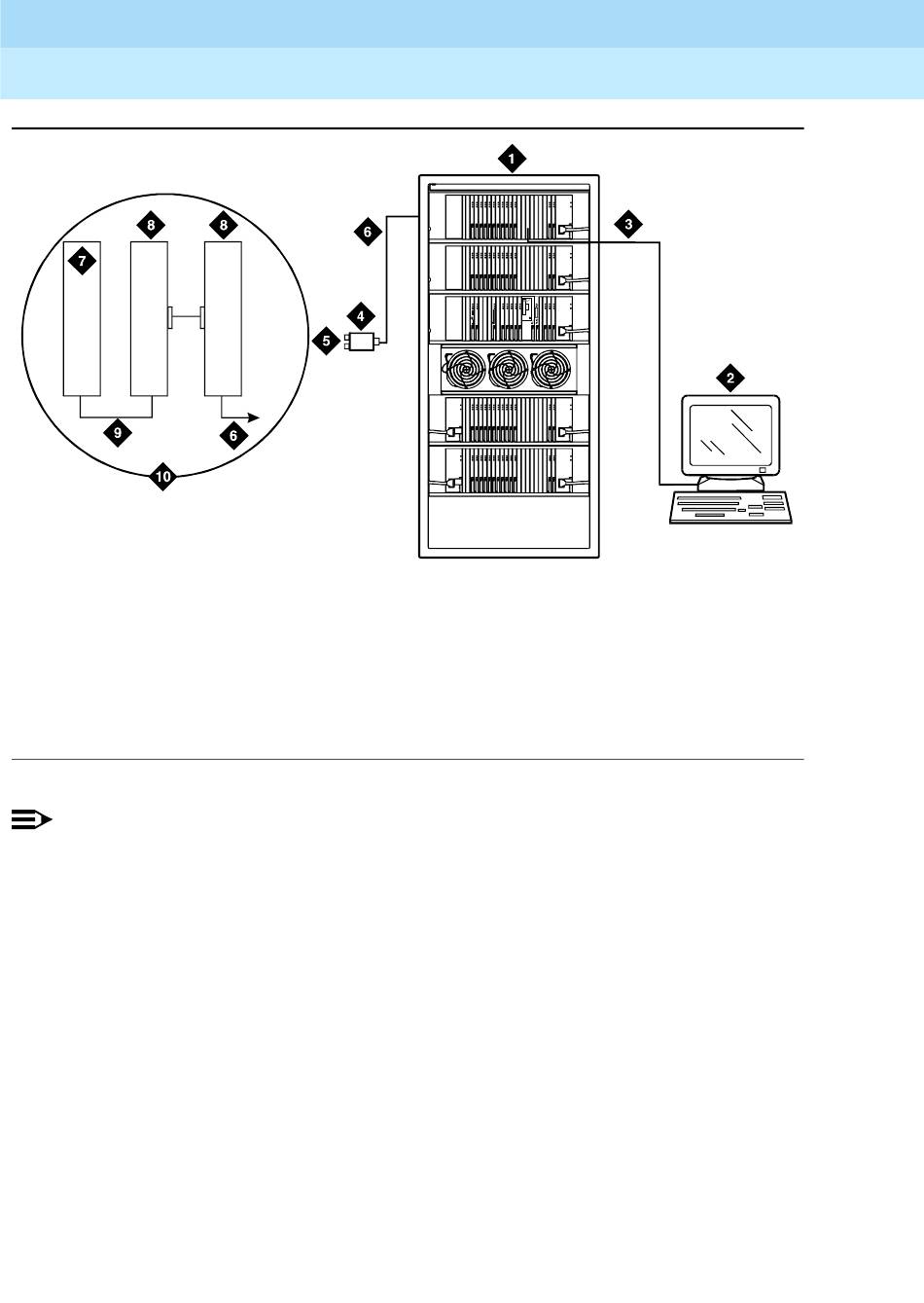

Figure 42. Typical PRI to BRI Converter Cabling
NOTE:
The inset shows details of the cable connections between the circuit packs.
7
(2B+D)
ALARM S
C
EM ER T R A R
D
I N
U S
E AUDIX
6. Coaxial cable from PRI converter circuit
pack to coaxial converter
7. TN464F circuit pack
8. PRI-to-BRI converter circuit pack
9. Jumper coaxial cable
10. Inset showing connections on rear of
carrier
