Summary of Contents for Lucent Technologies DEFINITY

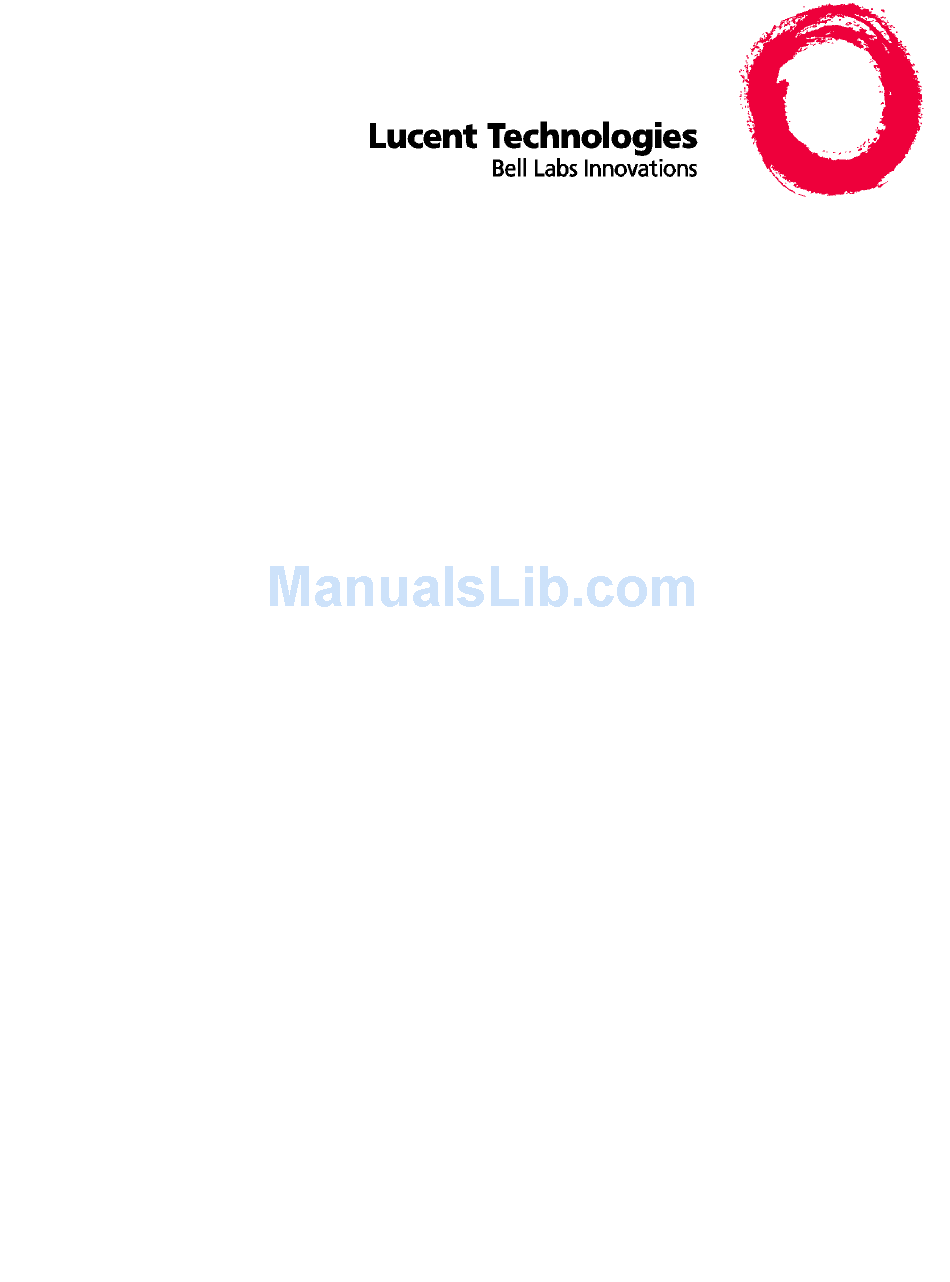

- Page 1 ® DEFINITY Enterprise Communications Server Release 8, Issue 3.0 (03.0.042.2) Change Description 555-233-220 Comcode 108839200 Issue 1 July 2000...
- Page 2 • Any other equipment networked to your Lucent products Lucent Technologies does not warrant that this product or any of its networked equipment is either immune from or will prevent either unauthorized or mali- cious intrusions. Lucent Technologies will not be responsible for any charges,...
- Page 3 Highlights This change description document describes the changes incorporated in DEFINITY Enterprise Communications Server (ECS), Release 8, Issue 3.0 (03.0.042.2). Highlights of features and enhancements Network Call Redirection Network Call Redirection (NCR) provides the capability to have the public network redirect an incoming call to another destination via Integrated Services Digital Networking (ISDN), without occupying trunks between the DEFINITY and the other location.
- Page 4 Highlights Internet Protocol (IP) Media Processor: TN2302AP The TN2302AP circuit pack is supported by Release 8.3 software and replaces the TN802B Media Processor, with the following proviso. The version of the circuit pack available coincident with Release 8.3 does not support fax. The current release of the circuit pack is intended for configurations requiring IP station and trunk connectivity without fax.
- Page 5 Highlights ARS/AAR Dialing without FAC feature is not generally available in Release 8.3. Although ARS/AAR Dialing without FAC appears on the customer options screen, this feature can only be ordered and activated by using the application process described in the Rapid Response Team website http://info.dr.lucent.com/rapid_ response/.
- Page 6 Highlights Release 8, Issue 3.0 (03.0.042.2)
- Page 7 Change Descriptions Change Descriptions The following problems have been addressed and corrected in DEFINITY Enterprise Communications Server (ECS), Release 8, Issue 3.0 (03.0.042.2). 1. When switching between PPP and X.25 type data modules, two copies of the Establish Connection field on the data module form appeared. 2.
- Page 8 Change Descriptions 8. Automatic Route Selection (ARS) calls were blocked (caller received reorder tone) when trunks were available but in a group controlled by the attendant. Under these conditions, a denial event will be logged when an ARS call fails and at least one of the trunk groups in a preference is controlled by the attendant.
- Page 9 Change Descriptions The Maximum allowed IP SoftPhones was controlled via the “Maximum IP SoftPhones” field on the system-parameters customer-options form. have been changed to: It is possible to list all administered IP SoftPhones using the “list multimedia ip-station” command. Access to the “list multimedia ip-stations” command is blocked using the “mm-ip-stations”...
- Page 10 Change Descriptions 30. Tandem trunk calls that received an ALERT followed by a DISCONNECT that had a progress indicator IE did not send a CONNECT message back to the orginator before the DISCONNECT, even though the incoming trunk was administered to do so. 31.
- Page 11 Change Descriptions 43. The administration field used to administer a user-translated version of the display message viewed when you use the button view feature on the DID-view button was located on the display-messages property-management form. The field is now located on the display-messages view-buttons form.
- Page 12 Change Descriptions 55. When Cyclical Redundancy Check (CRC) errors occurred on BRI ports, the ports were taken out of service and never put back into service. 56. It was not possible to change an ISDN trunk group to a non-ISDN trunk group if there were many AAR/ARS patterns used in the system.
- Page 13 Change Descriptions 70. Calls queued to an attendant via direct dial to an attendant VDN were left in queue and could not be answered. 71. If all preferences of a routing pattern with Look Ahead Routing (LAR) enabled were busy for a data call over an ISDN PRI trunk, DEFINITY returned Cause #58 (Bearer Capability Not Presently Available), and Cause #58 did not trigger LAR.
- Page 14 Change Descriptions 83. The switch reset when an agent exited AUX work mode. 84. Russian incoming toll intrusion on a call over a Russian 3-wire rotary trunk to a far end BUSY subscriber caused the caller’s station to enter a non-functional state, requiring a Busy/Release to return it to service.
- Page 15 Index Feature or category See item numbers Feature or category See item numbers Adjunct Switch Applications Interface (ASAI) DEFINITY Wireless Business Systems (DWBS) 17, 25, 46 Administration 1, 3, 6, 9, 19, 41, 43, 54, 56, Digital European Cordless Telephone (DECT) 17, 25, 46 58, 72, 80 Digital Signal Level 1 (DS1)
- Page 16 Index of Changes Feature or category See item numbers Feature or category See item numbers Music on Hold Paging QSIG R2-MFC Signaling Restart Routing Russia 17, 84 Service Observing Station Message Detail Recording (SMDR) System Resets 11, 27, 41, 47, 79, 81, 83, 85, 86, 87 Terminal Translation Initialization (TTI) Transfer...
