4 Data Modules and Asynchronous Data Units

Administer the DEFINITY ECS for Data Modules

5
1. To BRI circuit pack or DCP digital
line circuit pack
2. Main distribution frame (MDF)
3. ExpressRoute 1000 data module

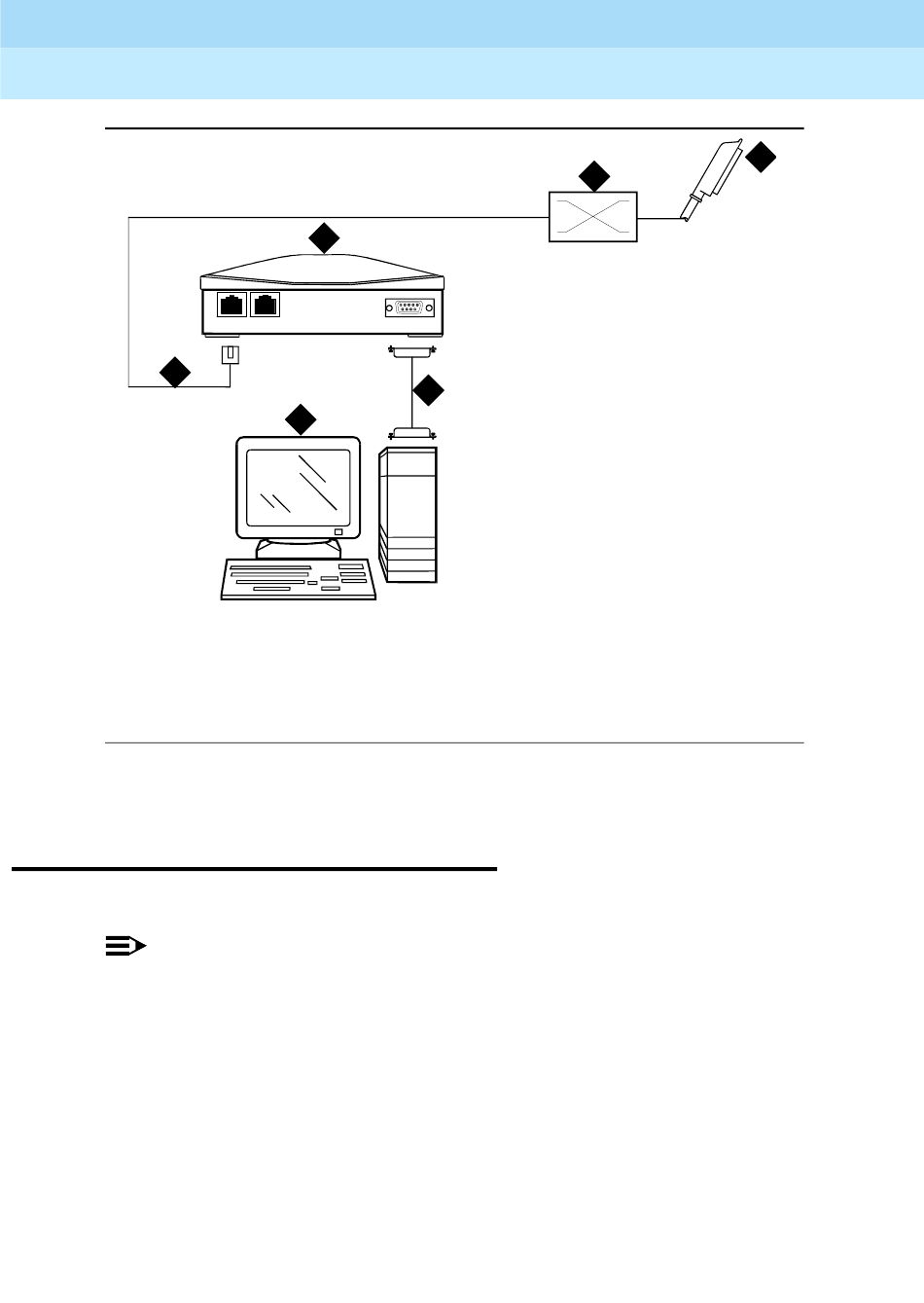

Figure 18. Typical ExpressRoute 1000 Data Module Connections
Administer the DEFINITY ECS for
Data Modules
You have to administer each data module that you attach to the system.
NOTE:
Only the basic procedure is covered here. For the full range of options, see
the DEFINITY Enterprise Communications Server Release 8 Administrator's
Guide.
1. Locate an available port. At the DEFINITY ECS administration console,
enter
list config port
3
LINE
PHONE
POWER
4
2
6
4. PC administration terminal
5. Modular line cord
6. M25B (25-Pin RS-232) cable
