10 ISDN Converters and Adapters
Converters for Single-Carrier Cabinets

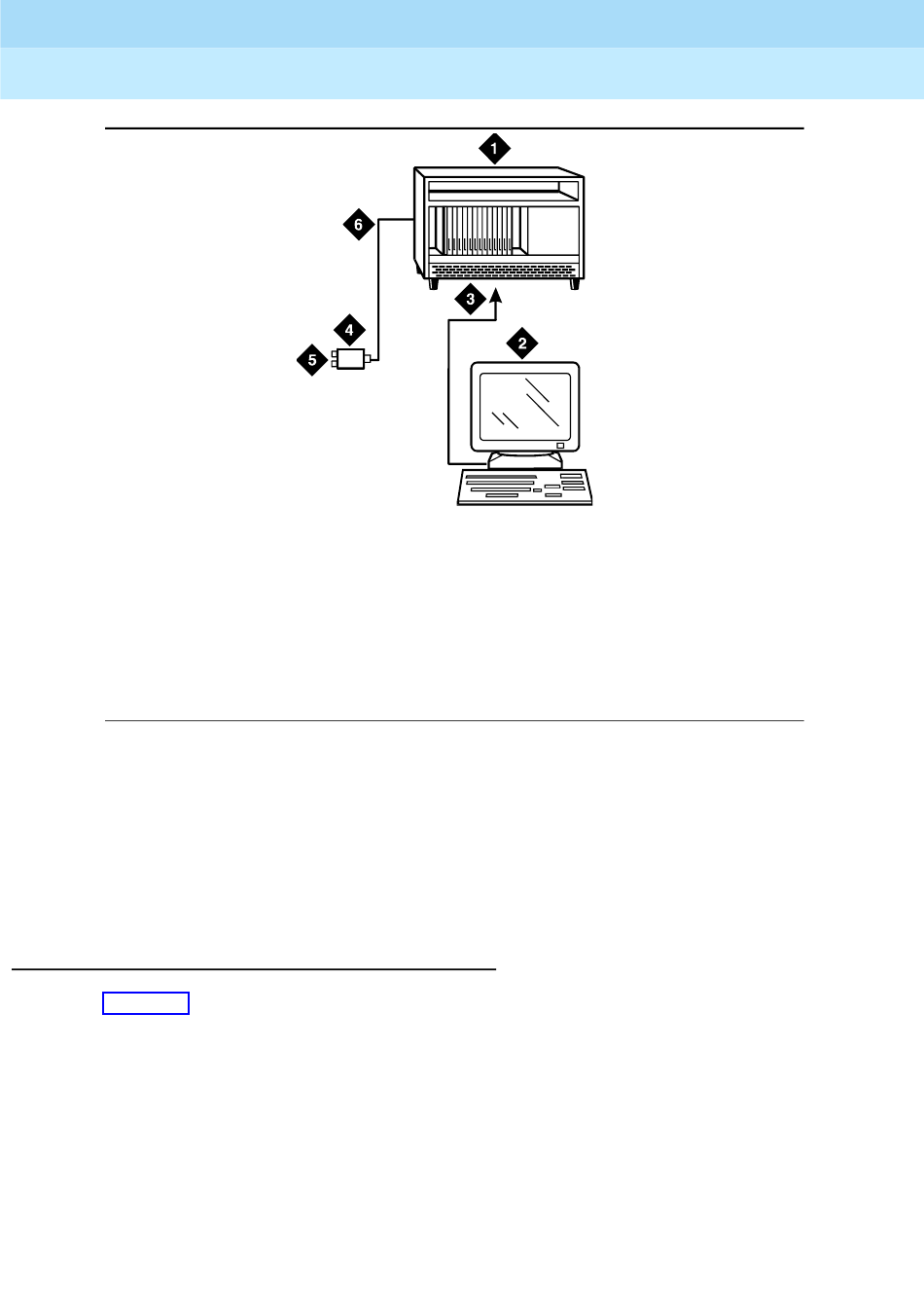

1. To TN464F DS1 circuit pack and
either a CSCC-1 PRI-to-DASS
converter or a CSCC-2 PRI-to-
DPNSS converter circuit pack
2. Administration PC
3. RS-232 cable to front of PRI
converter circuit pack
Figure 39. Typical DASS or DPNSS converter Cabling
1. Plug the DEFINITY administration PC into the RS-232 connector on the
front of the PRI converter circuit pack.
2. Connect the coaxial Y-cable from the TN464F to the PRI converter circuit
pack.
3. Connect the opposite end of the Y-cable to the 888B coaxial converter.
PRI-to-BRI Converter
Figure 40
facility.
shows typical connections from the PRI-to-BRI converter to the coaxial
0001 0 RBP 051396
4. 888B coaxial converter
5. Coaxial connection to 2-Mbps
facility
6. Coaxial cable from PRI converter
circuit pack to coaxial converter
