Be sure that the TN1648B SYSAM circuit packs are located in different DEFINITY
cabinets or processor carriers.
1. Bridge the 2 INADS tip/ring ports. A 258A adapter may be used.
2. Connect the bridged INADS tip/ring port to a PARTNER station port.
INADS Connection (without Power Fail Transfer)
!
CAUTION:
Check local regulations regarding this connection method.
In this configuration, the INADS line and the emergency telephone extension are
bridged together. If this connection method is not allowed, do not connect the
INADS port to station 10.
10
1. PARTNER system
2. MLS12D telephone for programming
3. Standard RJ-45 telephone cord
4. 103A or modular wall jack
5. Dial tone from the CO or a DEFINITY
extension

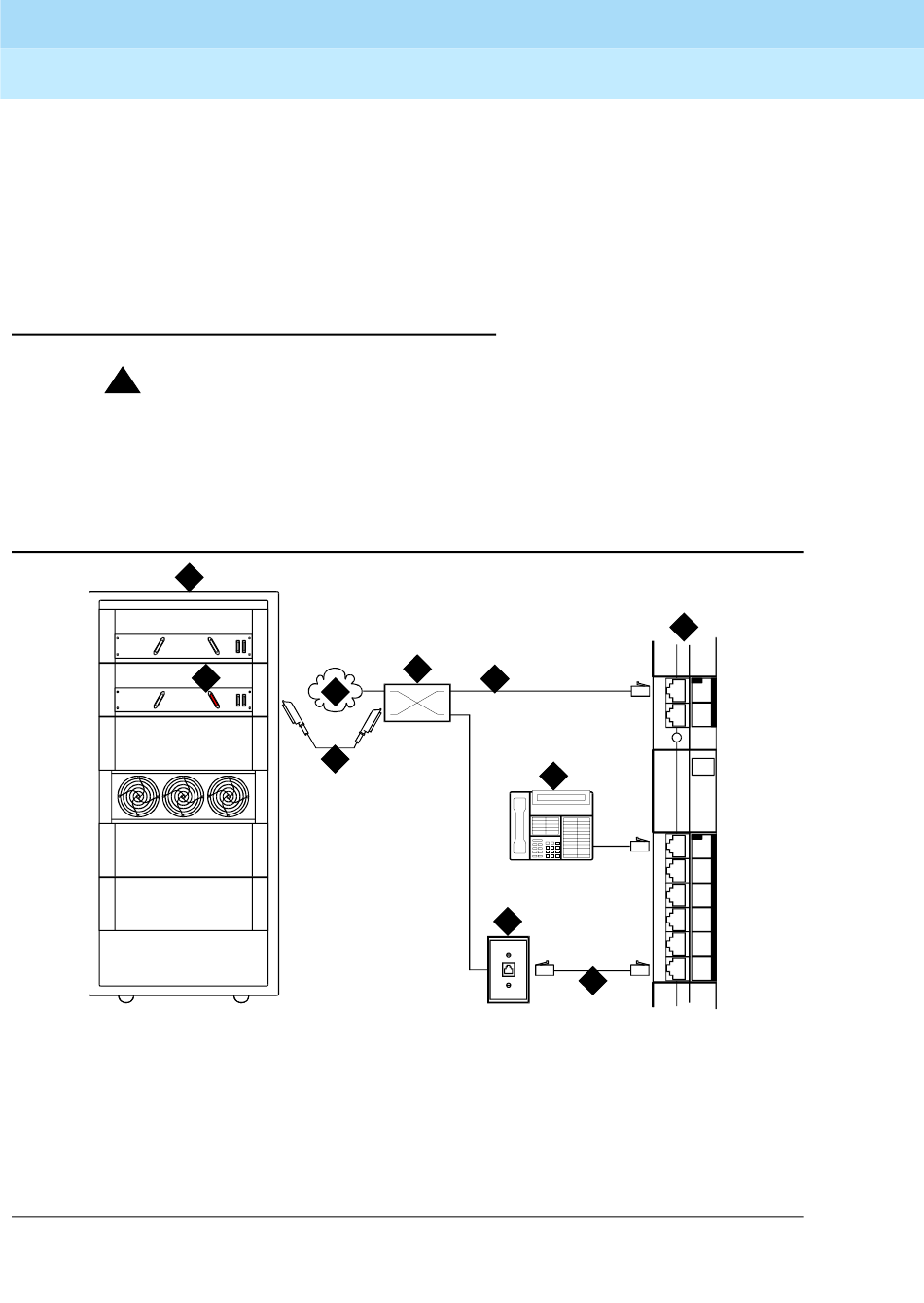

Figure 48. INADS Connection (all platforms)
9
7
8
cydf206b RPY 021998
6
5
2
4
6. Main distribution frame
7. PSTN
8. B25A 25-pair cable
9. AUX connector (use wire pair 50,25, tip
and ring)
10. DEFINITY Release 8r PPN cabinet
