7 DEFINITY LAN Gateway System
Installing DEFINITY LAN Gateway in a Single-Carrier Cabinet
!
CAUTION:
When the assembly is inserted, it will automatically power up (including the
disk), run diagnostics, and boot. Therefore, to avoid a disk crash, never
remove the assembly and never power down the DEFINITY System without
first shutting down the unit and allowing the disk to completely spin down.
NOTE:
The system treats a DEFINITY LAN Gateway like a digital line circuit pack
connecting 8 or 17 ports. These emulated stations (serving as ports) are
assigned as members of a hunt group that reside in a coverage path. This
coverage path is used by every station that covers an LAN Gateway
system.

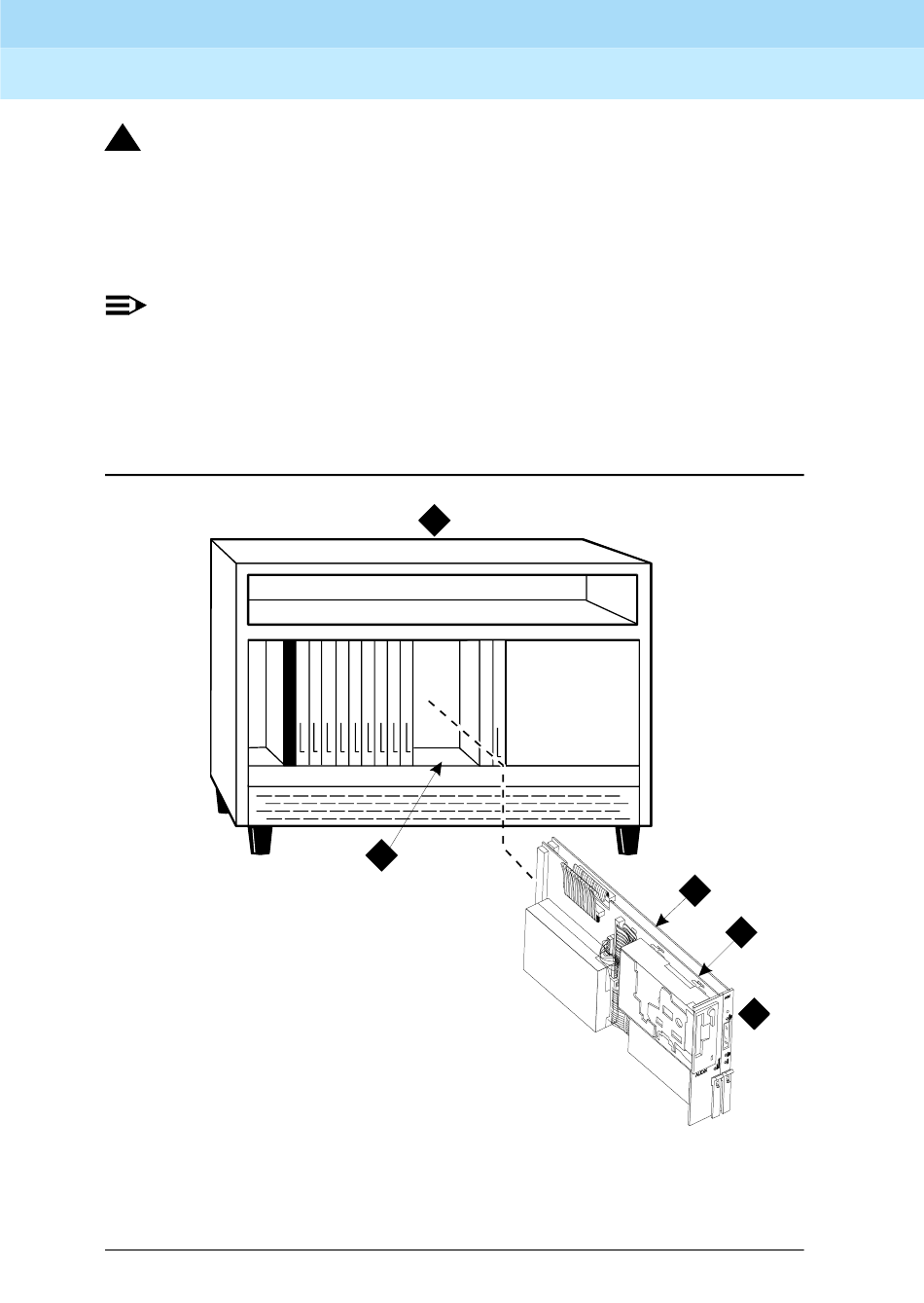

Figure 25. Typical DEFINITY LAN Gateway Installation
evdxgate RPY 090397
1. System cabinet
2. Five adjacent slots in cabinet
3. Multi-function circuit pack
1
2
4. Alarm circuit pack
5. DEFINITY LAN gateway
Issue 1
April 2000
100
3
4
5
